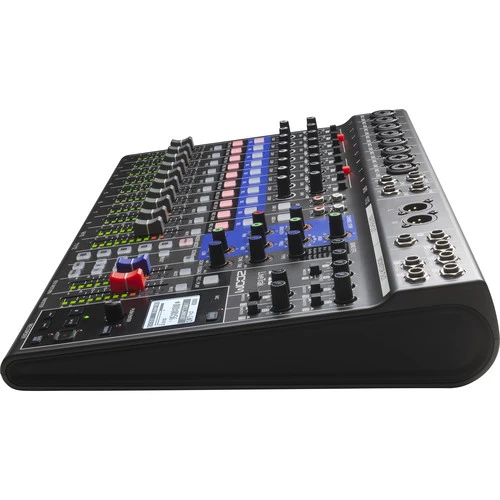

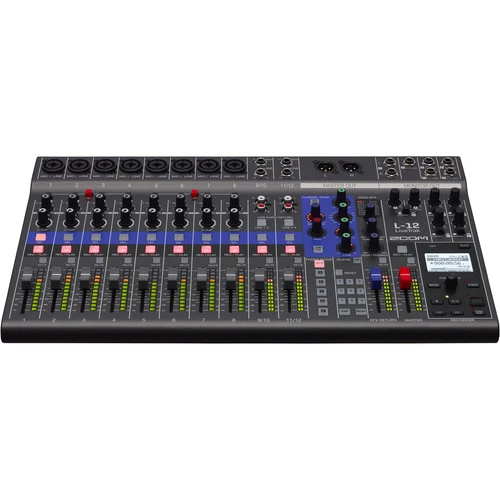

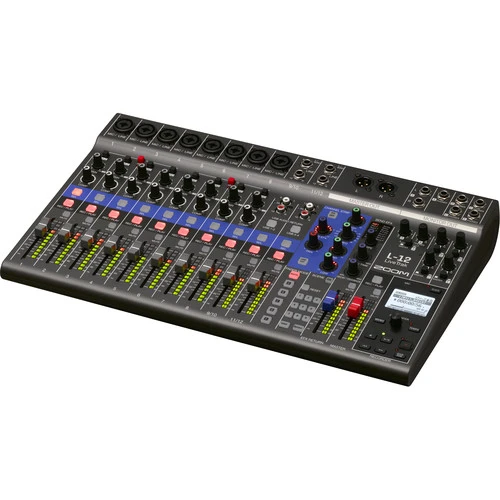

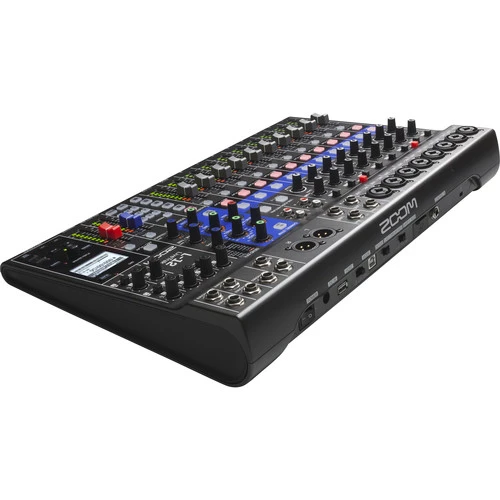

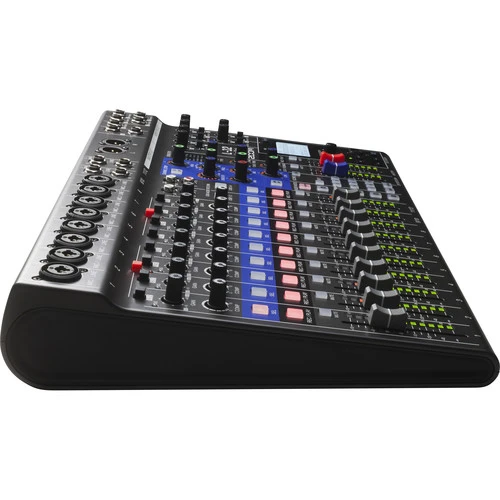

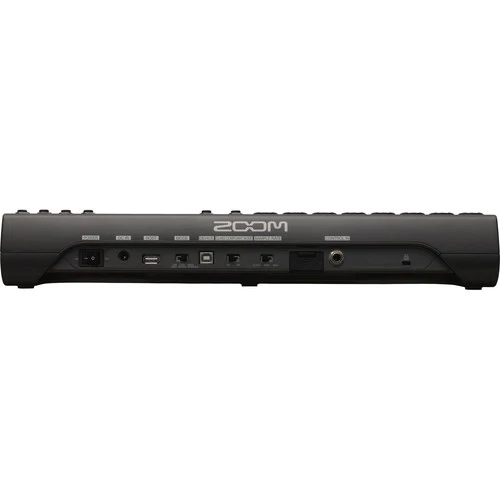

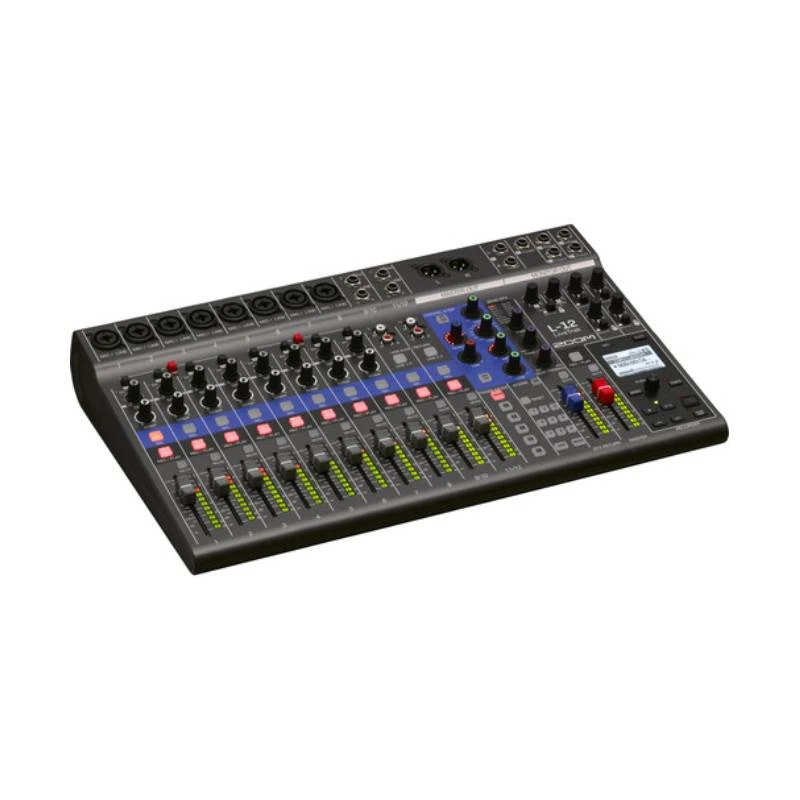

Zoom LiveTrak L-12 – 12-Channel Digital Mixer & Multitrack Recorder
Original price was: $331.00.$99.99Current price is: $99.99.
- Built-In 14-Track SD Recorder
- USB Audio Interface (iOS Compatible)
- 8 Mono Inputs + 2 Stereo Inputs
- Channels 1-2 Offer Hi-Z Inputs
- Phantom Power and -26 dB Pad
- Eight Channels of Compression
- Channel Strip with 3-Band EQ
- Low-Cut Filter and 16 Digital Effects
- 5 Headphone Outputs with Individual Mix
- Free Shipping over $25
- Fast & reliable delivery options
- Enjoy top quality items for less
- Multiple safe payment methods
Overview
The versatile Zoom LiveTrak L-12 is a 12-channel digital mixer and multitrack recorder designed to excel in various settings, including live performances, studio sessions, band practices, podcasts, and more. This compact unit offers 8 mono channels equipped with combo XLR-1/4″ inputs featuring high-gain, low-noise microphone preamps, +48V phantom power, and a single-knob compressor. The two stereo channels provide dual 1/4″ and RCA inputs, while channels 1-2 also include Hi-Z inputs for direct guitar or bass connections. Each channel integrates seamlessly with the onboard channel strip, which includes a low-cut filter, 3-band EQ, pan control, and send FX for routing signals to the built-in 16-effect processor, complete with a dedicated EFX Return channel.
Features
- 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4″ connectivity
- 14-track simultaneous recording, 12-track playback
- 14-in/4-out USB audio interface connectivity
- 5 powered headphone outputs, each with a customizable and savable mix
- Add backing/click tracks from your computer to your live mix and recording
- RCA and TRS line inputs
- 48V phantom power (channels 1-4 and 5-8)
- Hi-Z connectivity (channels 1 and 2)
- 26 dB pad (channels 3-8)
- Built-in compression control (channels 1-8)
- 12-Segment Digital Level Meters: -48 to 0 dB
- Master mute button
- Low-cut control
- Stereo panning
- Master and monitor outputs (A-E)
- Scene saving function, up to 9 scenes saved at a time
- 16 built-in delay and reverb effects with adjustable parameters
- Built-in slate mic
- Class-compliant mode (for iOS compatibility)
- SD card input
- Built-in metronome
- Automatic recording starting/stopping capability
- Project protection
- Import/export projects with USB 2.0 host port
- Latency adjustment for A-to-D conversion
- Compatible functions for optional Zoom FS01 footswitch
In The Box
Zoom LiveTrak L-12 – 12-Channel Digital Mixer & Multitrack Recorder
Power Cable
USB Cable
Limited 1-Year Manufacturer Warranty
specification
| EQ |
No |
| EQ Parameters |
High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 100 Hz to 8 kHz (Semi-Parametric) Low: ±15 dB at 100 Hz (Shelving) |
| Dynamic Processing |
Mono Channels: Compressor |
| Built-In Effects |
16x Effect (Type Unspecified) |
| Sync I/O |
No |
| Wireless |
No |
| Headphone Output Power |
10 mW per Channel into 60 Ohms (Max) |
| Mobile Device Compatibility |
iPod Touch |
