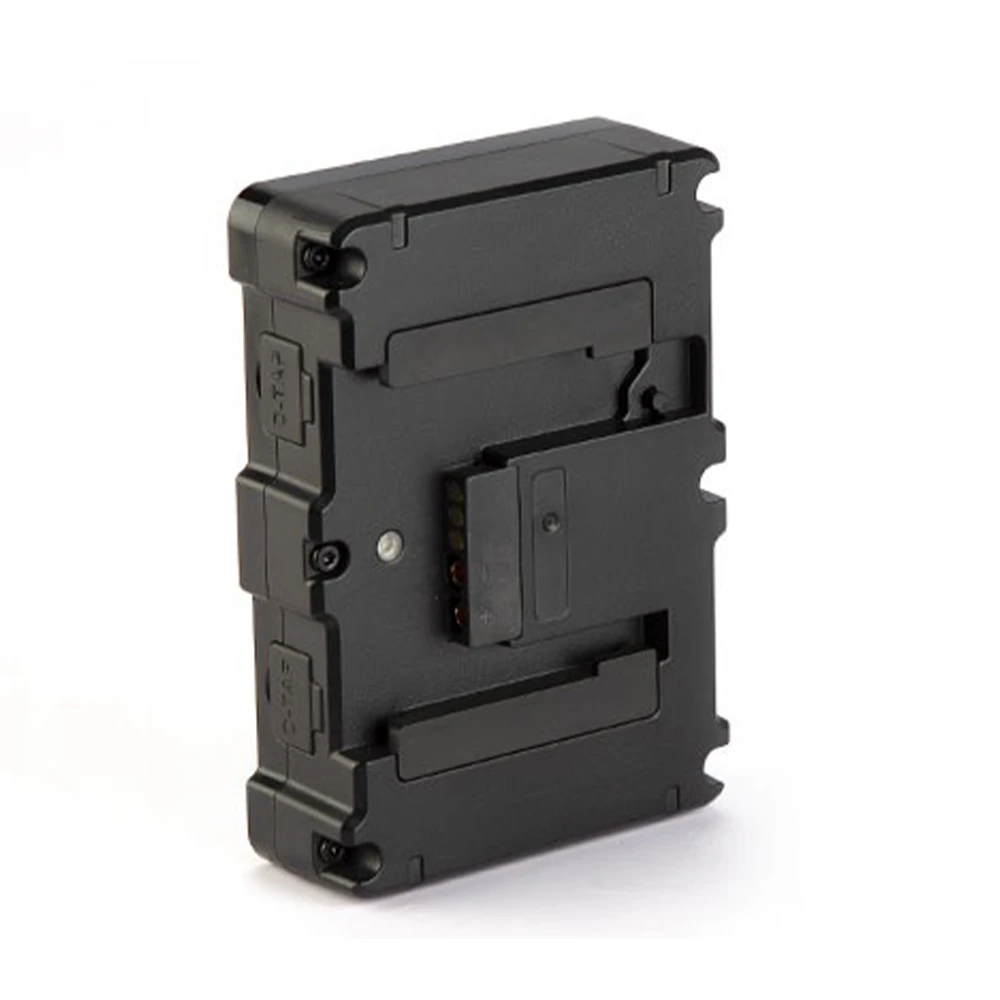

Swit 98Wh Battery With 14V/28V B-Mount 16V D-taps

14.4V/28.8V Bi-Voltage B-mount Battery

BIVO-98 is a 14.4V(11-16.8V) and 28.8V (22-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

98Wh Fly Friendly Capacity

BIVO-98 battery is only 38mm thickness and 668g light weight for handheld shooting. It’s 98Wh capacity, run at least 1 hour on ARRI ALEXA 35 camera, and not being restricted to board airplane.
The battery provides at least 150W constant power load for cine cameras and devices.

2x D-tap Power Output

BIVO-98 provides with 2x D-tap power sockets.
When the battery works at 14.4V voltage,
the D-tap outputs 11-16.8V;
When the battery works at 28.8V voltage,
the D-tap output regulated 16V,
to power all kinds of camera-top devices.



1.2 meters Drop-off Proof

BIVO-98 battery can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.
