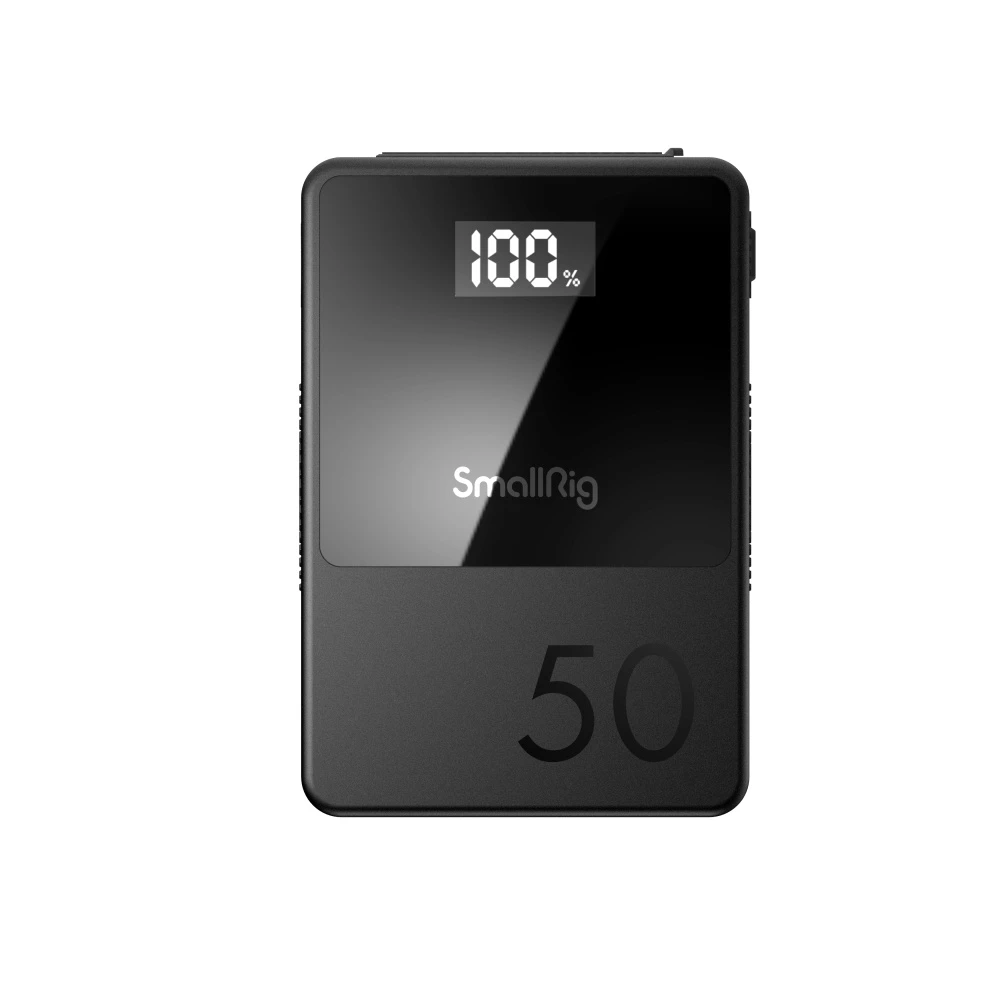

VB50 Mini V Mount Battery

The VB50 Mini V Mount Battery is a compact, lightweight power solution, offering 70% of the size of a standard V-mount battery. Its integrated design maximizes space utilization, making it highly portable. The battery is equipped with a sophisticated BMS chip that supports various fast charging protocols such as PD, QC, SCP, PPS, and APPLE-2.4A. Additionally, it features bi-directional 45W (Max) USB-C PD fast charging, along with adaptive voltage boost and adaptive current regulation.

Features:

• Integrated Design: Highly compact and portable, occupying 70% less space than a standard V-mount battery.
• Fast Charging: Supports a wide range of fast charging protocols for efficient charging of various devices.
• USB-C PD Fast Charging: Bi-directional 45W (Max) USB-C PD fast charging for versatile power delivery.
• Intelligent BMS System: Customized BMS system provides multiple protections against over-current, short-circuit, over-temperature, and over-voltage.

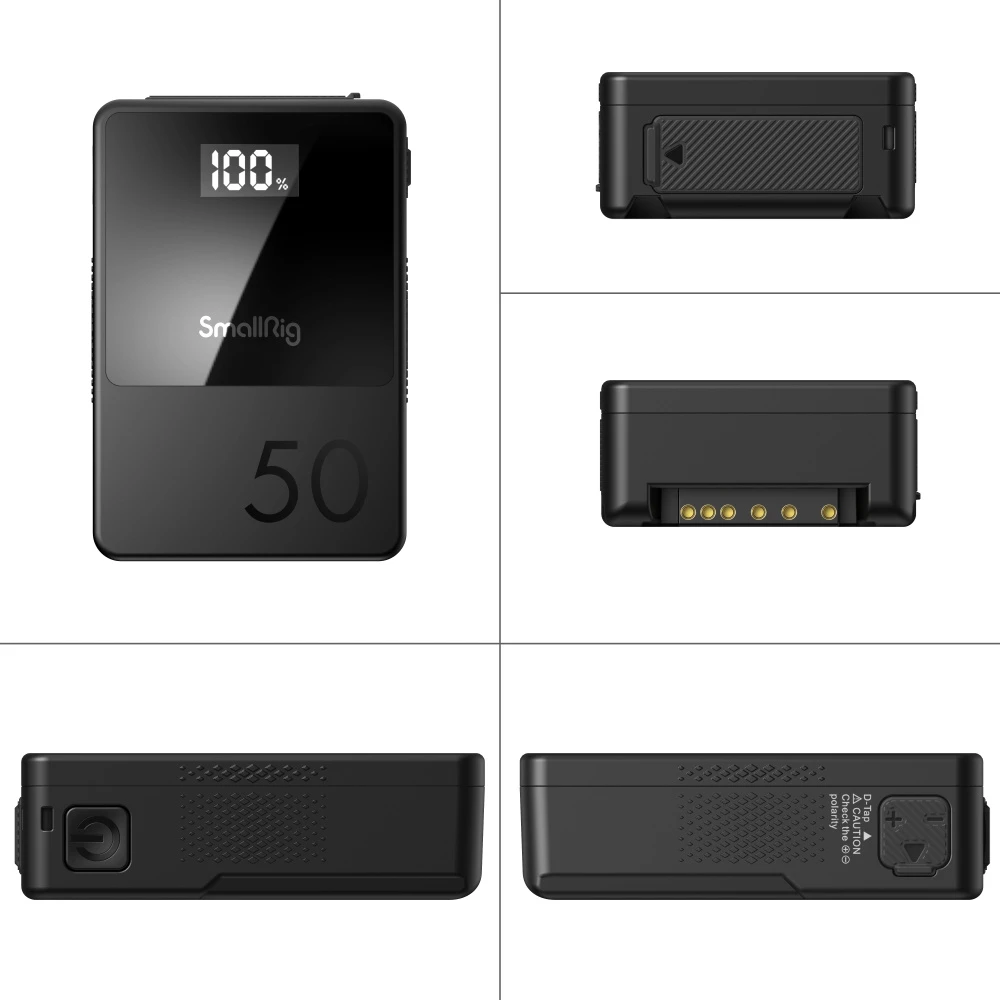

• Versatile Interfaces: Includes USB-A, USB-C, D-tap, DC 8V, DC 12V, and V Mount for efficient charging and powering of various devices.

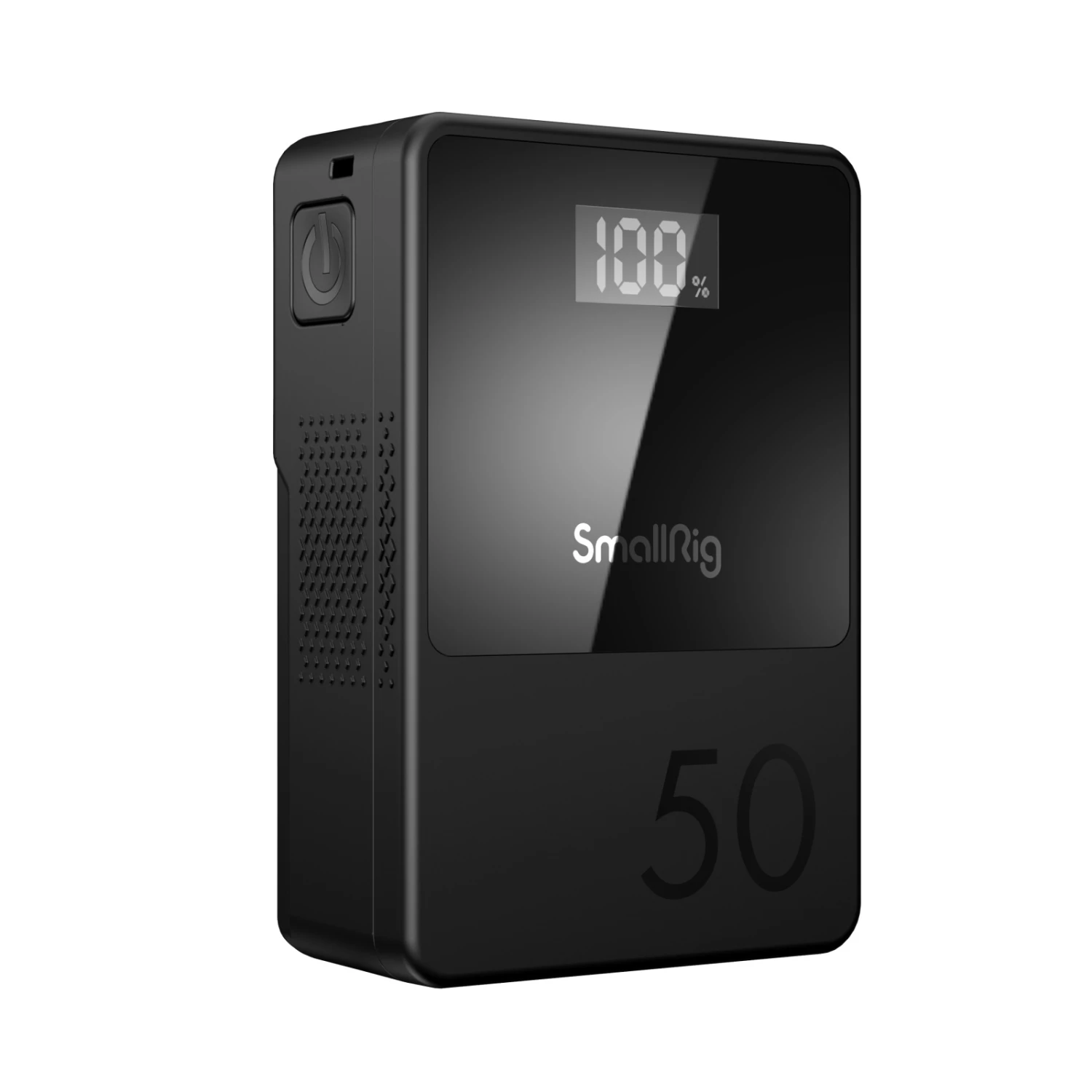

• OLED Digital Display: Features an OLED digital display with a 16bit ADC/power meter algorithm to monitor battery status.
• Premium Battery: Built-in premium high-performance battery with no inflated capacity, meeting international standards.
• Compact Dimensions: Product Dimensions: 107.0 × 73.0 × 34.0 mm.
• Lightweight: Net Weight: 330 g ± 10 g.
• Comprehensive Package: Comes with a user manual.

Parameters:

• Material: Fireproof PC.
• Capacity: 14.8V 3.4Ah 50Wh.
• Rated Power:
  • Discharge: 50W
  • Charge: 45W
• V Mount / D-TAP Input: 5A (Max)

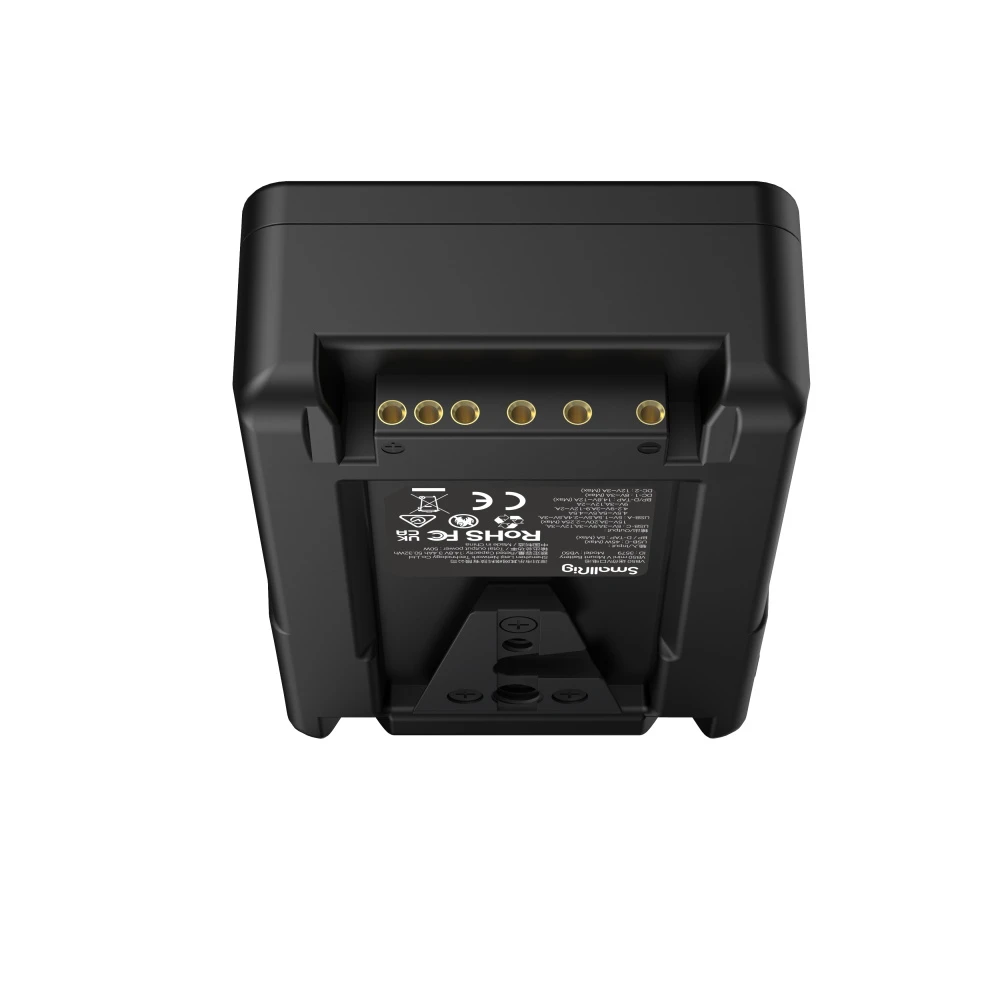

• V Mount / D-TAP Output: 14.8V / 12A (Max)
• USB-A Output: Supports QC2.0 / QC3.0 / AFC / FCP / SCP / DCP-1.5A / APPLE-2.4A.
• USB-C Input / Output:
  • Input 45W (Max)
  • Output 45W (Max)
  • Supports PD3.0 / QC2.0 / QC3.0 / PPS / AFC/ FCP / SCP / DCP-1.5A / APPLE-2.4A.
• DC1 Output: 8V / Max3A.
• DC2 Output: 12V / Max3A.
• Cutoff Voltage: 11V.
• Optional Charging Method: 16.8V D-TAP charger, USB-C charger (e.g., GaN charger with PD fast charging tech up to 45W).
• Package Dimensions: 147.0 × 114.0 × 57.0 mm.
• Gross Weight: 490 g ± 10 g.

Note:

1. Please keep it clean, dry, and away from corrosive substances.
2. Regularly check battery life.
3. Charge to about 70% every three months for prolonged storage.
4. Working temperature: -10℃-45℃; Storage temperature: -20℃-60℃ (One month), -20℃-45℃ (Three months), -20℃-20℃ (One year).
5. It is normal for the battery to heat up slightly during charging or use.
6. When using the D-TAP connector, distinguish positive and negative terminals.
7. Normal for long-term storage to lose some power due to self-consumption.
8. Do not exceed rated output when powering other devices.
9. Keep away from water or fire.
10. Avoid dropping or crushing.
11. Children should use it under adult supervision.
