SmallRig 3384 Professional Phone Video Rig Kit

SmallRig All-in-One Video Kit For Smartphone Creators 3384 – Overview

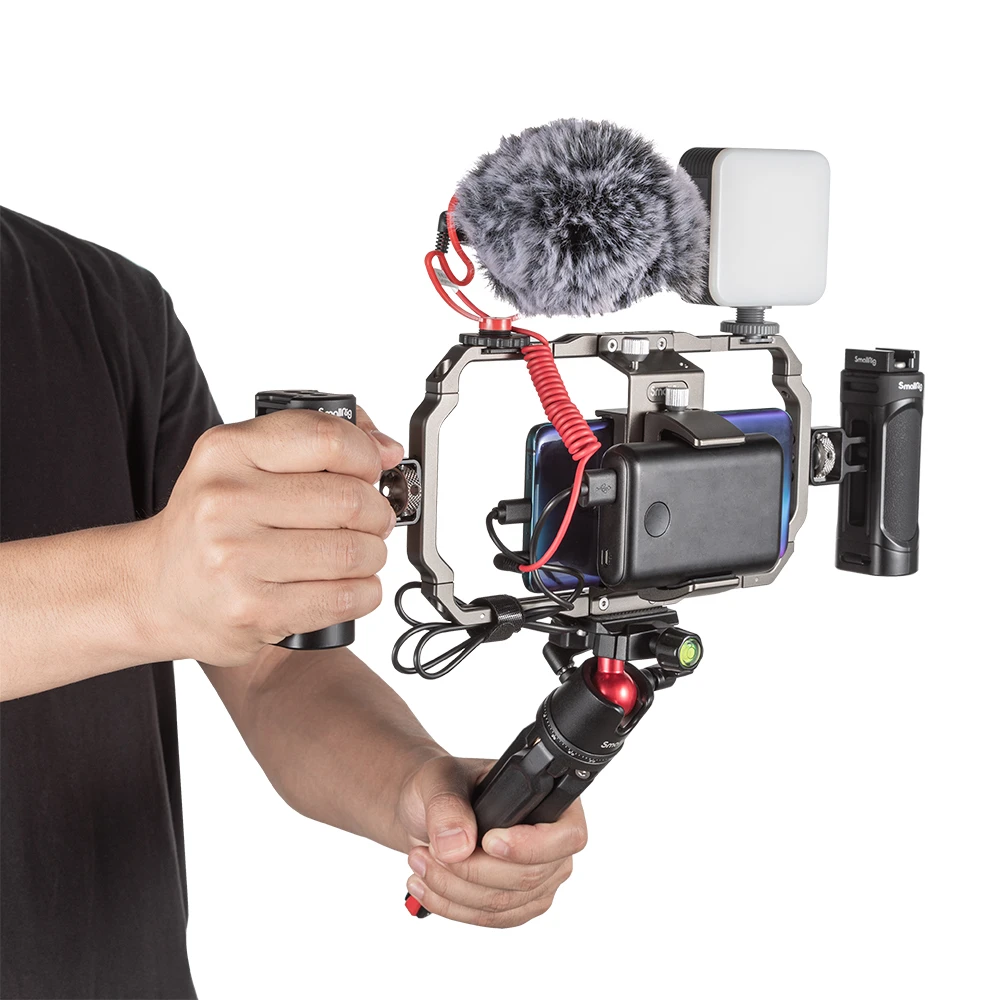

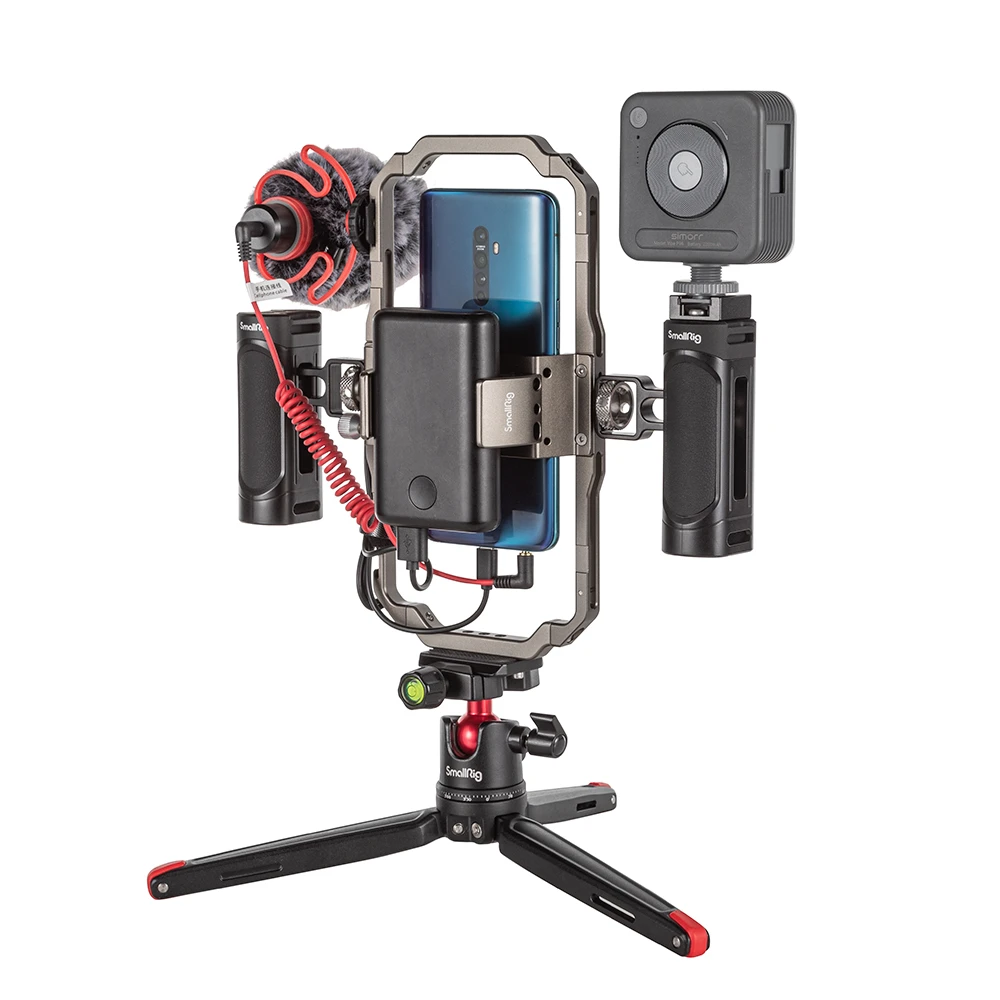

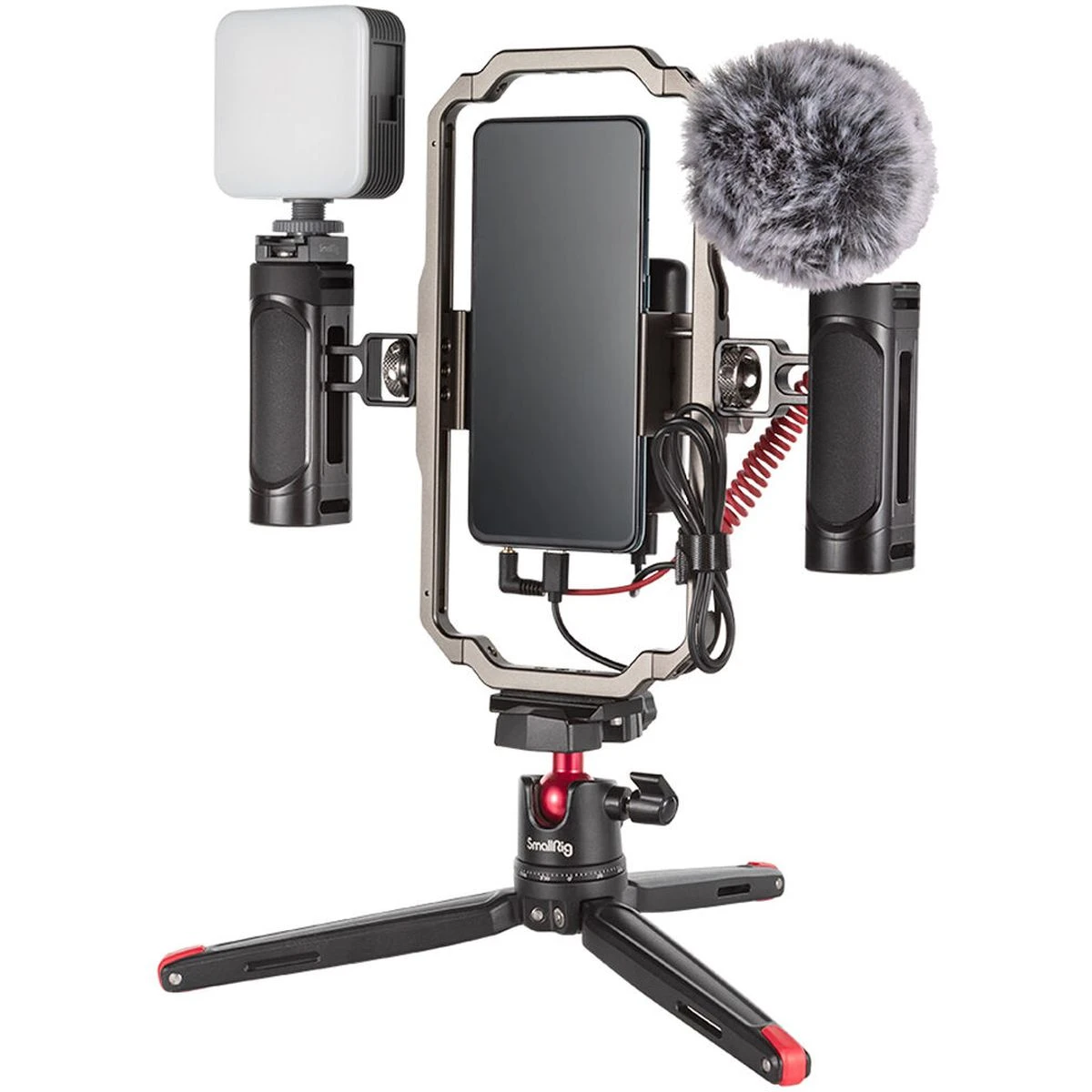

The SmallRig All-in-One Video Kit For Smartphone Creators 3384 is a comprehensive solution designed specifically for vlogging and live streaming using smartphones. This kit includes various accessories that enhance stability, lighting, audio, and overall shooting capabilities. Here’s an overview of the key components and features:

Components:

1. Universal Phone Cage:
   • Compatible with phones with a width range from 62mm to 86mm.
   • Multiple 1/4”-20 thread holes and cold shoe mounts for additional accessories.
2. Desktop Tripod:
   • Provides stability for tabletop shooting.
   • Compact and portable design.
3. Power Bank Holder:
   • Compatible with power banks with a width range from 53mm to 81mm.
   • Offers a convenient solution for extended shooting sessions.
4. Side Handles (x2):
   • Designed for use with SmallRig phone cages.
   • Enhances grip and control during handheld shooting.
5. Cold Shoe Mount:
   • Additional mounting option for accessories.
6. LED Light:
   • Color Temperature: 2700K-6500K.
   • CRI: 95+.
   • Adjustable lighting for improved video quality.
7. Microphone:
   • Cardioid polar pattern.
   • Frequency Range: 50Hz-16kHz.
   • Enhances audio quality for clear sound capture.
8. Shock Mount and Windproof Accessories:
   • Reduces vibrations and minimizes wind noise for improved audio recording.

Note:

• Handle use is recommended only with SmallRig phone cages.
• Ensure gentle handling of the phone to prevent damage.
• OTG must be switched on for microphone use with some smartphones (e.g., OPPO, VIVO, OnePlus).

Package Includes:

• Universal Phone Cage
• Desktop Tripod
• Power Bank Holder
• Side Handles (x2)
• Cold Shoe Mount
• LED Light
• Microphone
• Allen Wrenches (x4)
• Cable Ties (x2)
• Screws (x2)
• Type-C Charging Cable
• Shock Mount
• Windproof Sponge Foam
• Furry Windshield
• 3.5mm Camera Cable
• 3.5mm Smartphone Cable
• User Manual

Specifications:

• Product Dimensions: 235 x 125 x 33mm
• Package Dimensions: 270 x 228 x 118mm
• Net Weight: 1242±5g
• Package Weight: 1660±5g
• Material: Aluminum Alloy, ABS

LED Light:

• Color Temperature: 2700K-6500K
• CRI: 95+
• Illuminance: 0.3m: 1100Lux; 0.5m: 400Lux; 1m: 150Lux
• Battery Type: Lithium-ion Battery (3.7V / 2200mAh)
• Power: 5W
• Working Temperature: -10°C-50°C

Microphone:

• Polar Pattern: Cardioid
• Frequency Range: 50Hz-16kHz
• Sensitivity: -38dB±3dB
• Maximum SPL: 71dB SPL
• Output Impedance: 2.2kΩ±30%（at 1kHz）

The SmallRig All-in-One Video Kit offers a versatile and user-friendly solution for smartphone creators, providing essential tools for capturing high-quality content.
