SmallRig 3196 Mini Matte Box

SmallRig Mini Matte Box 3196 – Overview

The SmallRig Mini Matte Box 3196 is a compact and versatile solution designed for DSLRs and mirrorless cameras to control light and prevent glare and flare. Let’s explore the key features and details of this mini matte box:

Key Features:

1. Glare and Flare Control:
   • Prevents sunlight or other light sources from causing glare and flare for better image control on the screen.
2. Clamp Connector:
   • Works with adapter rings in various sizes (Φ52-95mm) or can be attached directly to Φ95mm lenses.
3. Adapter Ring Compatibility:
   • Adapter rings in sizes Φ52-95mm are available separately for compatibility with different lens diameters.
4. Circular Filter Support:
   • Accommodates circular CPL, ND filters, and other circular filters up to Φ92.5mm.

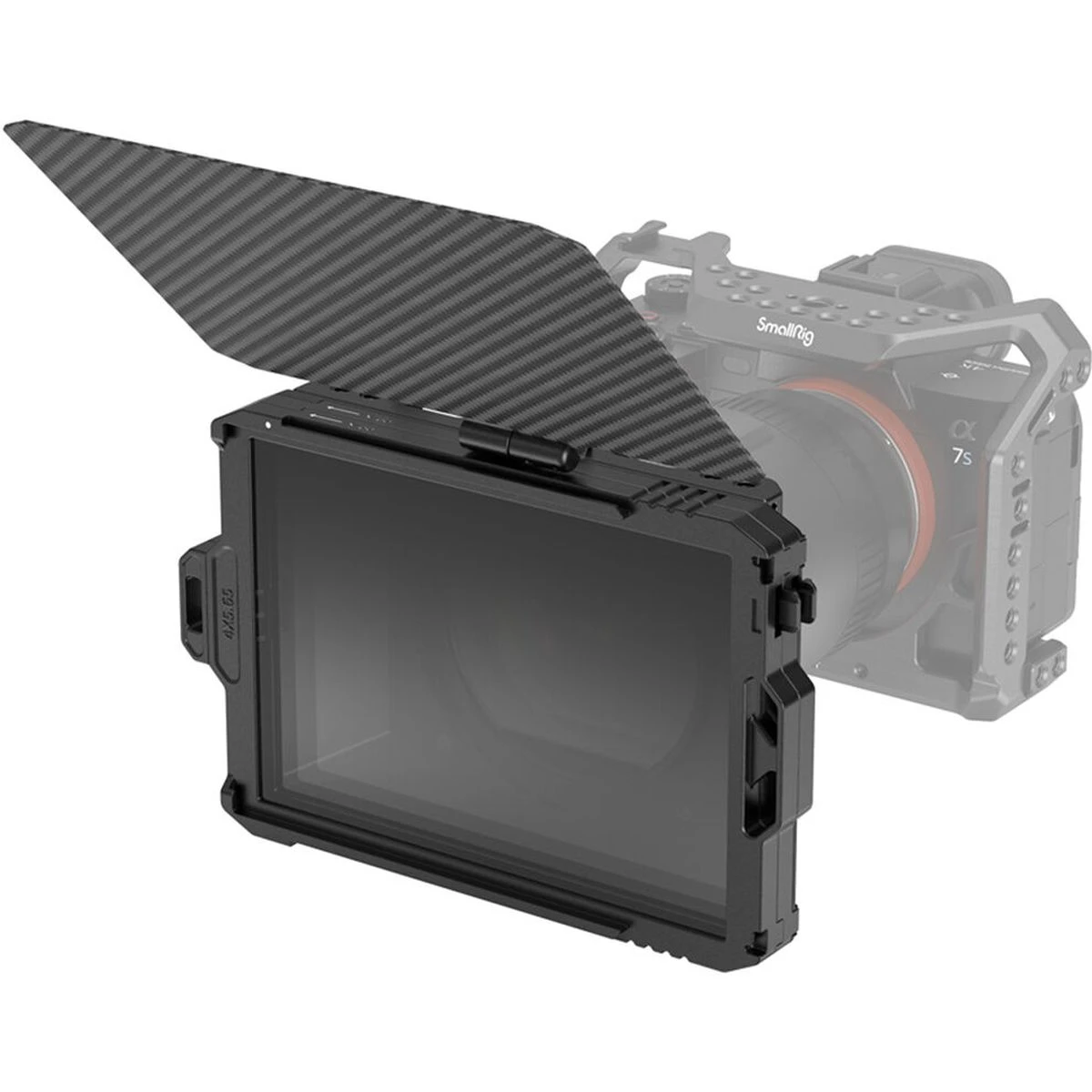

5. Filter Tray 3319:
   • Quickly mounts onto the matte box via a NATO clamp and supports multiple 4 x 5.65″ plug-in filters of up to 4mm thickness.
6. Filter Tray 3320 (Sold Separately):
   • Supports multiple 4 x 4″ plug-in filters of up to 4mm thickness simultaneously.

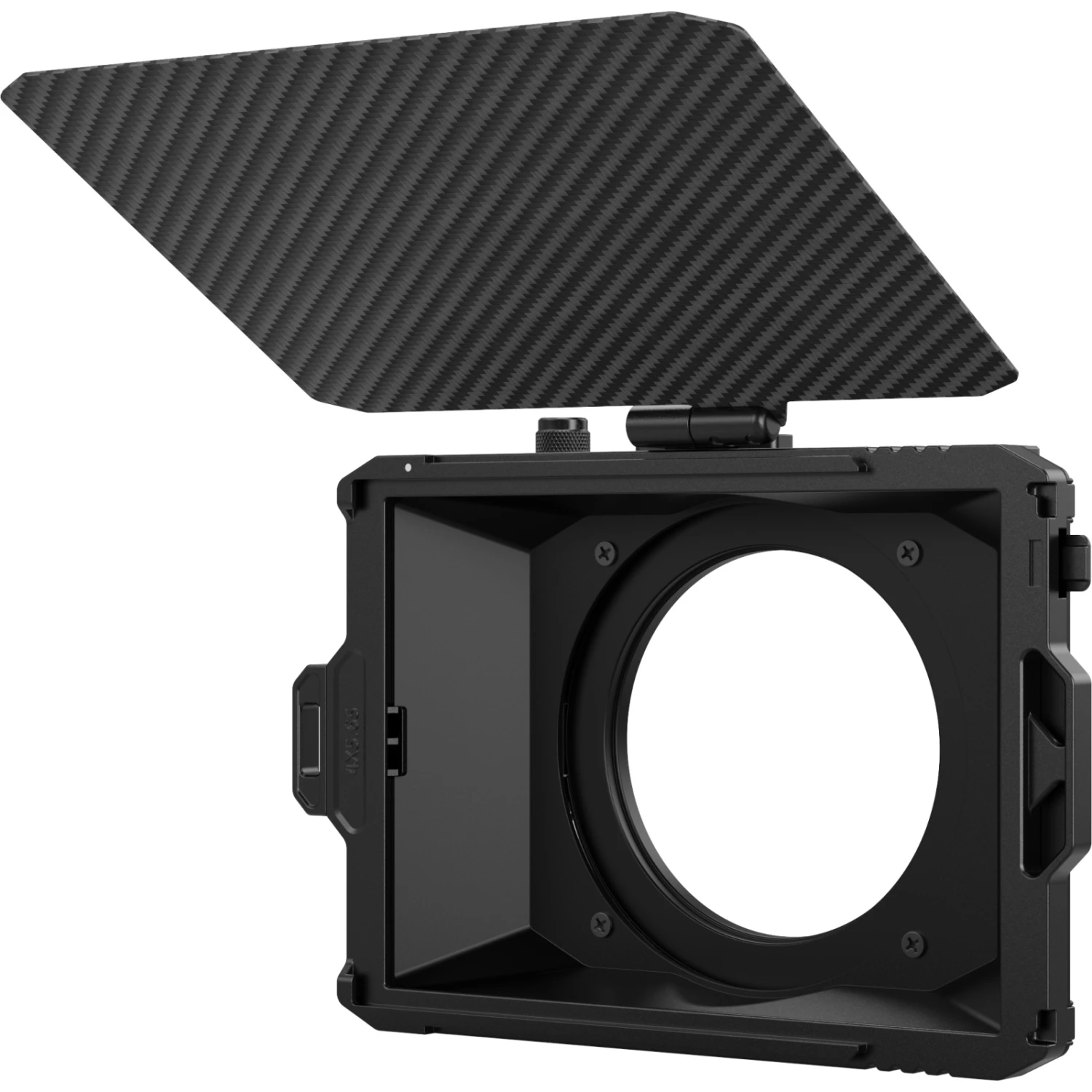

7. Top Flag:
   • Adjustable carbon-fiber top flag blocks sunlight or strong light and prevents internal reflections with an anti-reflective design.
8. Accessory Mounting:
   • Top 1/4″-20 threaded holes enable easy attachment of other accessories.
9. Anti-Twist Holes:
   • 1/4″-20 threaded holes on the bottom for use with 15mm LWX Rod Support 3411.

Note:

1. Not compatible with 100 x 100mm filters.
2. Adapter rings kit (Φ52/55/58/62/86-95mm) 3383 is available separately.
3. Maximum load capacity: 1kg.

Compatibility:

1. Standard Φ52/55/58/62/67/72/77/82/86mm lenses.
2. Round filters of up to Φ92.5mm.
3. Φ52/55/58/62/67/72/77/82/86-95mm adapter ring.
4. 4 x 5.65″ and 4 x 4″ plug-in filters of 4mm thickness.

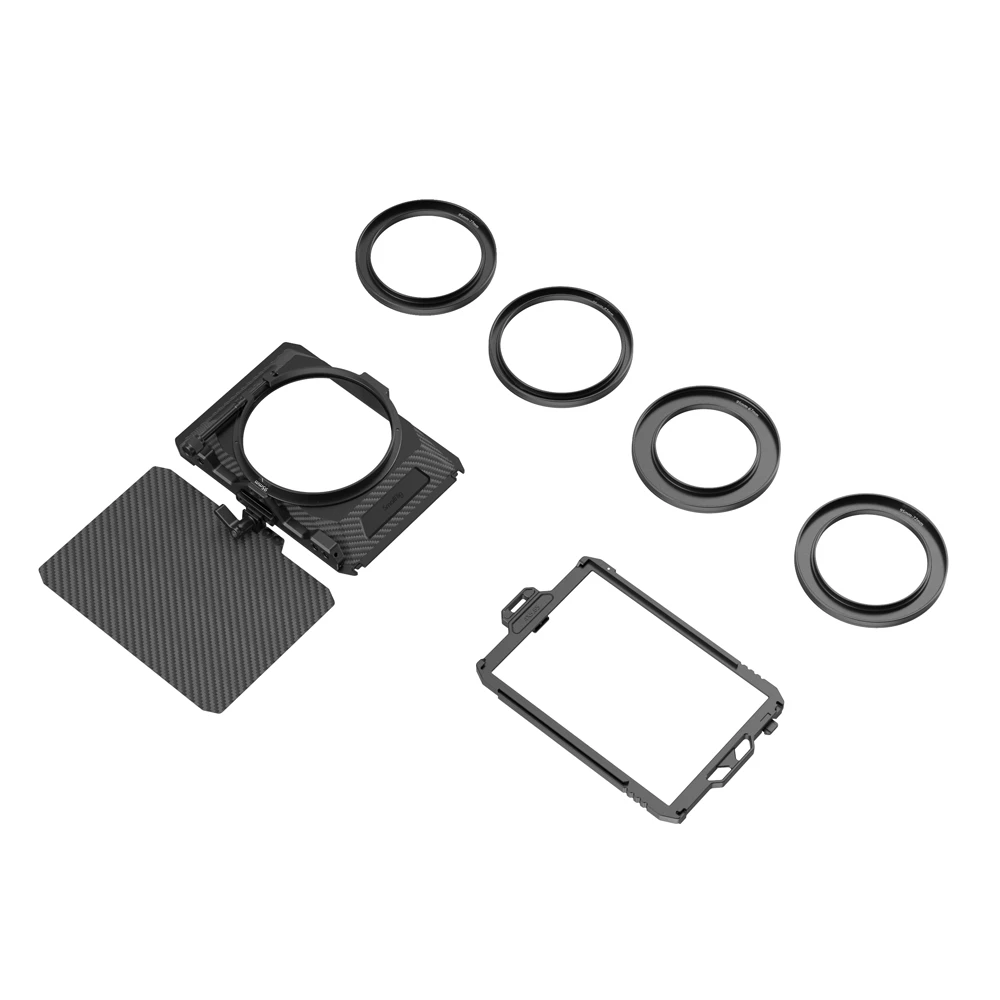

Package Includes:

• 1 x Mini Matte Box
• 1 x Φ67/72/77/82-95mm Adapter Ring
• 1 x Filter Tray (4 x 5.65)

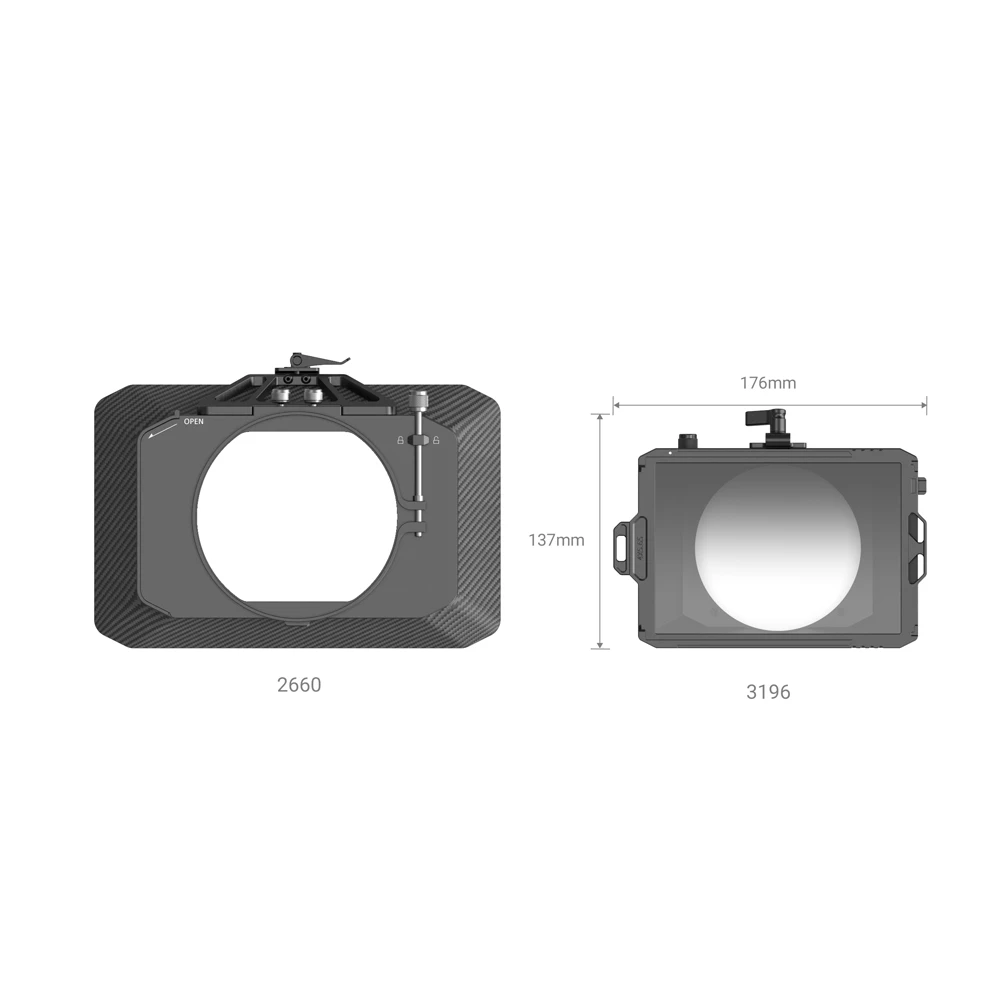

Product Dimensions:

• 176 x 137 x 42.7mm

Package Dimensions:

• 228 x 170 x 72.5mm

Net Weight:

• 150g±5g (excluding adapter rings)

Package Weight:

• 470g±5g

Material:

• AL6061+PC+Carbon Fiber

The SmallRig Mini Matte Box 3196 offers a lightweight and efficient solution for controlling light and enhancing your camera setup with versatile features.
