Sale!

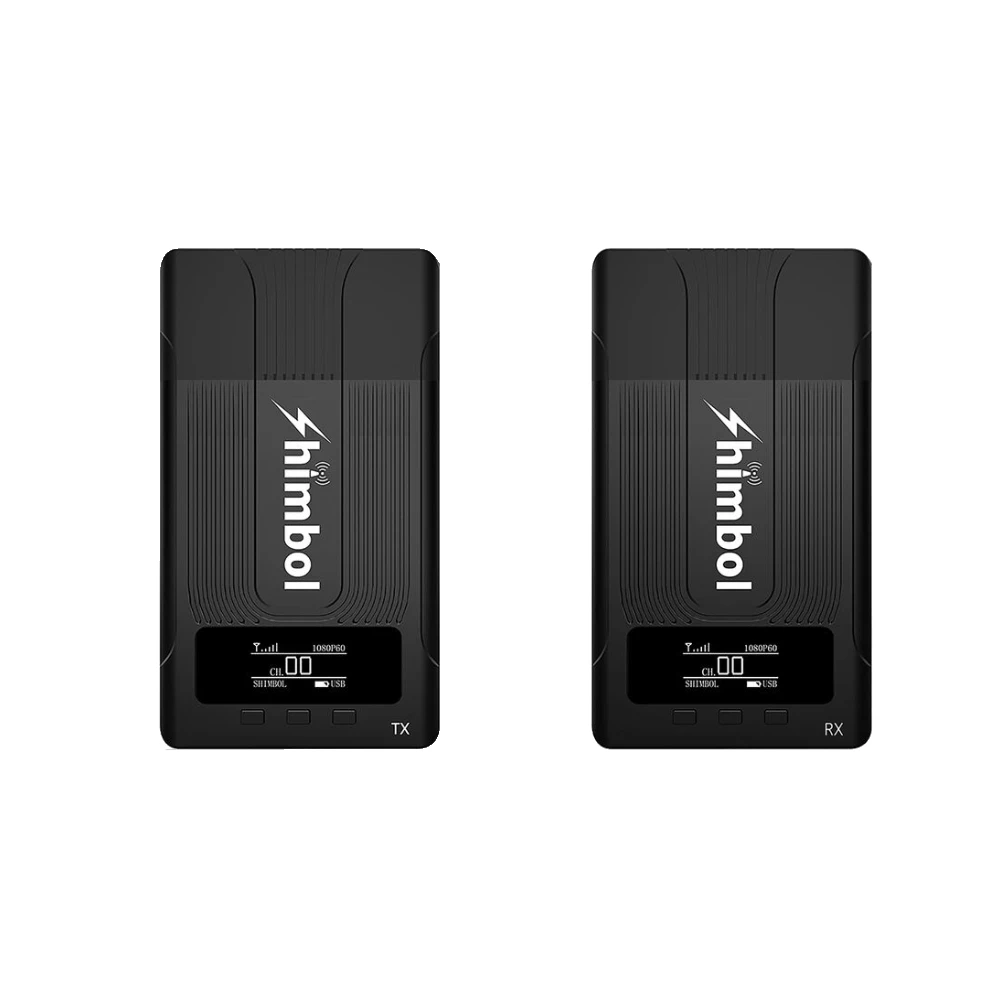

Shimbol ZO600S SDI & HDMI Wireless Video Transmission System
Original price was: $389.00.$99.99Current price is: $99.99.
- Wireless Video Transmission up to 600′
- 1 x Transmitter & 1 x Receiver
- Supports up to 1080p60 Video
- SDI & HDMI Input, SDI & HDMI Out
- USB Type-C Power Input & L-Series Plate
- Transmit to Receiver & Mobile Devices
- Compact, Silent Fan-Less Design
- Low-Latency of Approximately 80ms
- OLED Displays on Transmitter & Receiver
- Free Shipping over $25
- Fast & reliable delivery options
- Enjoy top quality items for less
- Multiple safe payment methods
Overview
Enhance your video workflow with wireless monitoring using the Shimbol ZO600S SDI & HDMI Wireless Video Transmission System. Designed for convenience, this compact transmitter and receiver duo can be powered via USB Type-C or Sony L-Series batteries. The system supports professional-grade SDI (BNC) and HDMI inputs and outputs, ensuring compatibility with a wide range of devices. Capable of transmitting 1080p60 video with an ultra-low latency of under 1ms, it offers a reliable line-of-sight range of up to 600′. The transmitter is equipped with one SDI input and one HDMI input, while the receiver features one SDI output and one HDMI output, perfect for connecting to monitors.
Wireless Range up to 600′
Delivers crisp, high-quality video with resolutions up to 1080p60, offering a line-of-sight wireless range of up to 600′
SDI and HDMI Connectivity

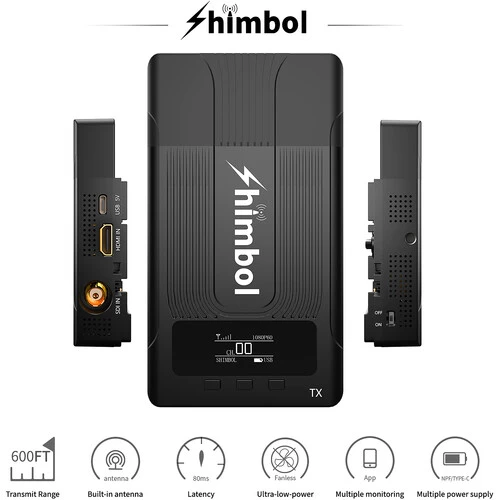

The ZO600S transmitter supports both SDI (BNC) and HDMI inputs, making it compatible with a broad range of cameras, while the receiver includes SDI (BNC) and HDMI outputs for seamless monitor connections
Ultra-Low Latency
Ensures smooth video and audio transmission with latency as low as 80ms
Multi-Device Support
The system supports transmission to multiple devices, including the receiver, smartphones, and tablets, for versatile monitoring
Flexible Power Solutions
Both the transmitter and receiver can be powered via USB Type-C sources such as power banks or batteries, or by attaching an L-series battery to the integrated mounting plate
Compact and Quiet Operation
Featuring a lightweight, fan-less design with built-in antennas, the units operate silently, making them ideal for on-set use
OLED Status Displays
Both the transmitter and receiver are equipped with OLED screens that provide real-time status updates
In The Box
Transmitter
Receiver
USB Type-C Cable
Limited 1-Year Manufacturer Warranty
Specifications
Inputs/Outputs
| Antenna I/O |
No |
| Video I/O |
Transmitter: 1x BNC (HD-SDI) Input Transmitter: 1x HDMI (Unspecified Signal) Input Receiver: 1x BNC (HD-SDI) Output Receiver: 1x HDMI (Unspecified Signal) Output |
| Embedded Audio |
Not Specified by Manufacturer |
| Audio I/O |
No |
| Power I/O |
Transmitter: 1x USB-C Input Receiver: 1x USB-C Input |
| Encryption |
No, |
Wireless
| Wireless Range |
600′ / 182.9 m (Line-of-Sight) |
| Frequency Range |
5 GHz |
| Latency |
80 ms |
| RF Power |
21 dBm |
| RF Sensitivity |
-80 dBm |
| Wi-Fi |
No |
| Bluetooth |
No |
| Mobile App Compatible |
No |
| Cellular Support |
No |
Format Support
| Video Format |
HDMI 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/59.94/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/50 |
| Audio Format |
Not Specified by Manufacturer |
| Timecode Support |
No |
Power
| Input Power |
5 VDC |
| Battery Type |
Transmitter: 1x L-Series Receiver: 1x L-Series |
| Power Consumption |

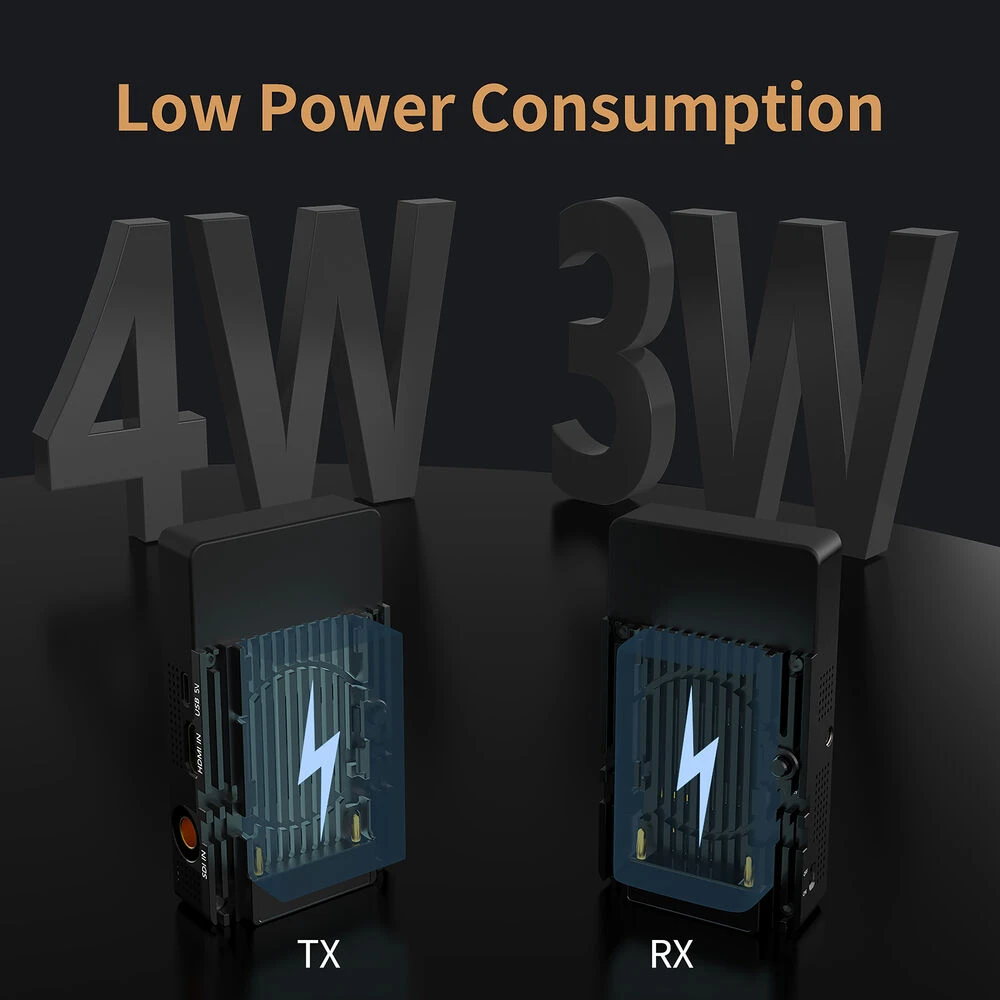

Transmitter: 4.5 W Receiver: 3 W |
Mounting
| Mounting |
Transmitter/Receiver: 1x 1/4″-20 Female (Bottom) |
General
| Status Display |
Transmitter/Receiver: OLED |
| Environmental Resistance |
No |
| Dimensions |

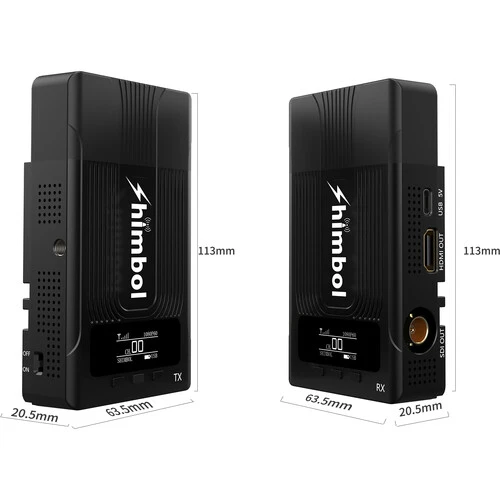

Transmitter/Receiver: 4.4 x 2.5 x 0.8″ / 113 x 63.5 x 20.5 mm |
| Weight |
Transmitter: 5.64 oz / 160.00 g, Excluding Battery Receiver: 5.64 oz / 160.00 g, Excluding Battery |
