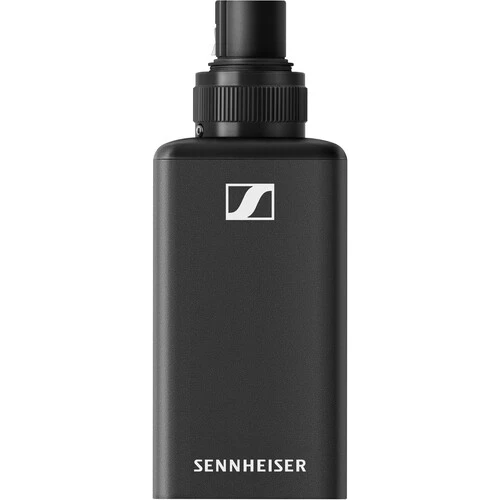

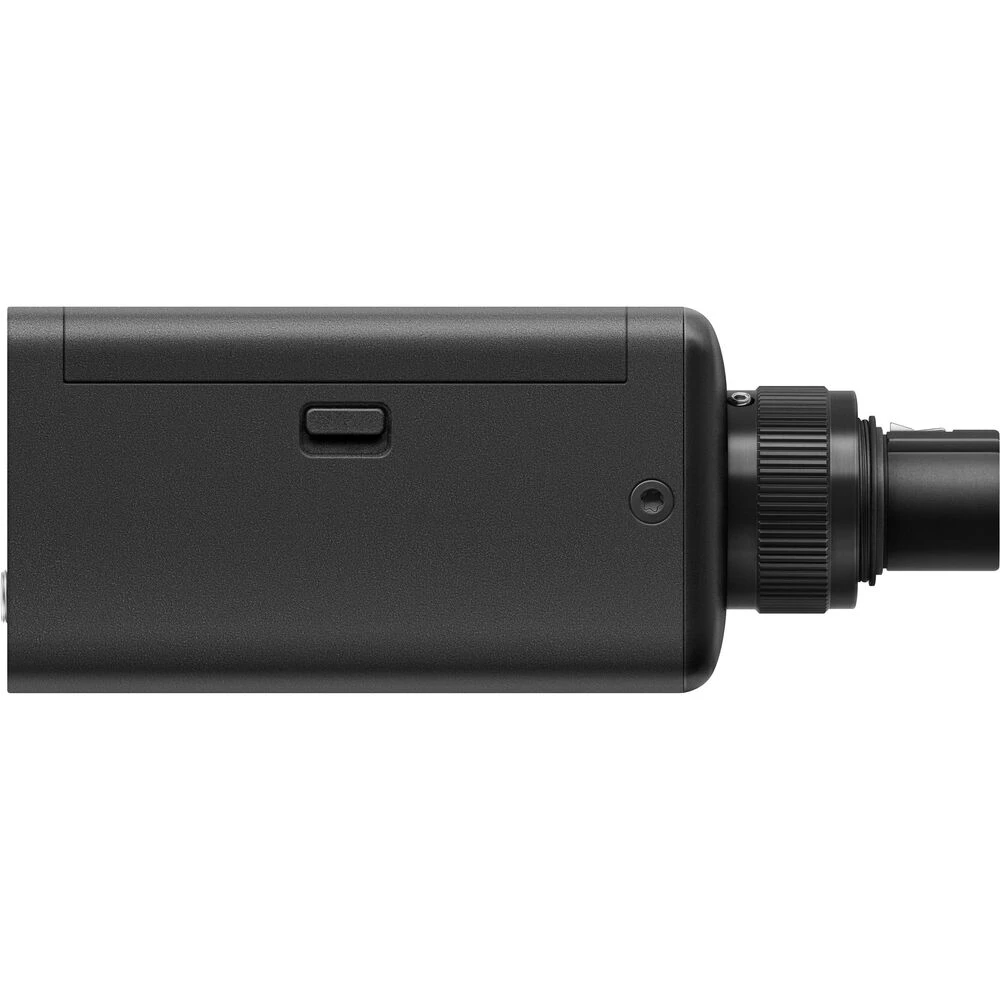

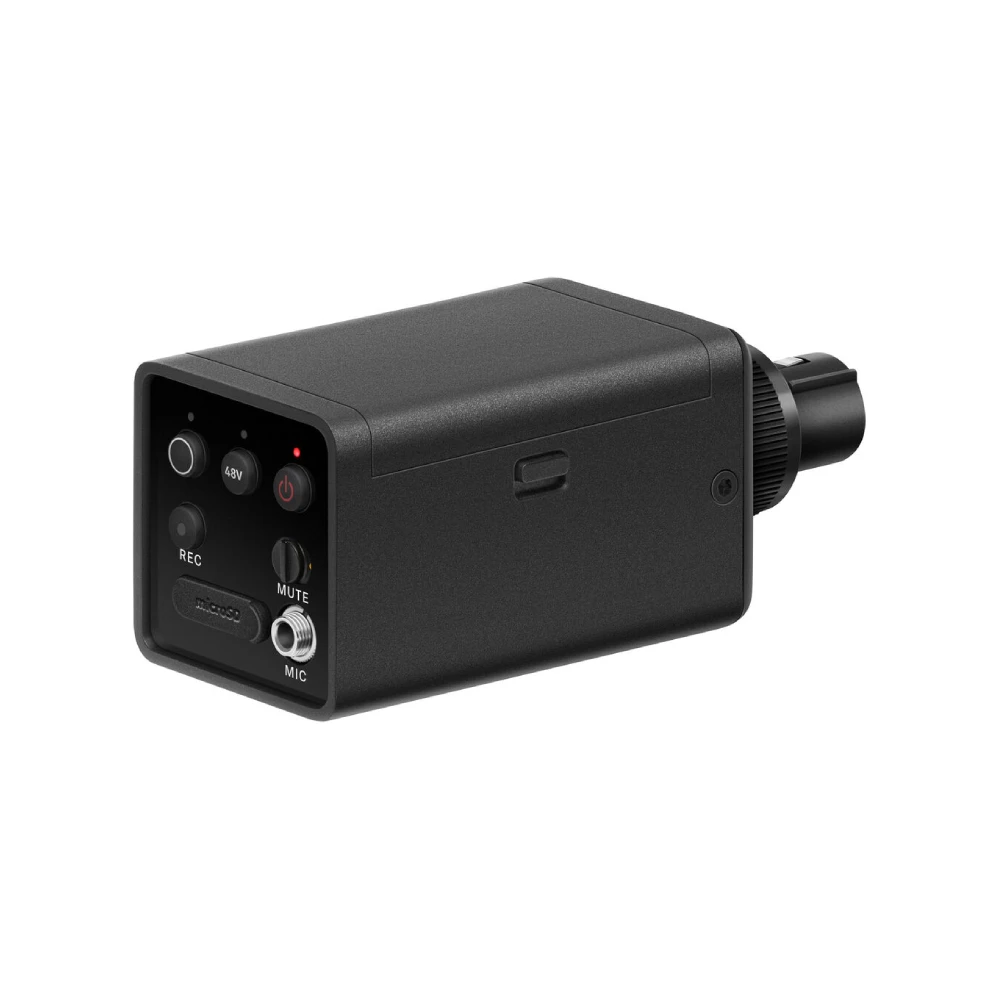

Sennheiser EW-DP SKP (R1-6) Digital Plug-On Wireless Transmitter/Recorder
Original price was: $288.00.$97.99Current price is: $97.99.
- Frequency range R1-6: 520 – 576 MHz
- Videography, Filmmaking, Newsgathering
- For EW-D and EW-DP Systems
- XLR-F and 3.5 mm Mic Inputs
- Onboard Recording via microSD
- +48V Phantom Power
- Pro Features with Fast & Easy Setup
- 134 dB of Dynamic Range, 24-Bit Audio
- 56 MHz Bandwidth, Equidistant Grid
- Setup/Operate from Phone via Bluetooth
- Free Shipping over $25
- Fast & reliable delivery options
- Enjoy top quality items for less
- Multiple safe payment methods
Overview
Digital UHF XLR plug-on transmitter featuring +48V phantom power, microSD card slot, and 3.5 mm lav mic input for use with Evolution Wireless Digital.
In The Box
Sennheiser EW-DP SKP Digital Plug-On Wireless Transmitter/Recorder
2 x AA Battery
Specifications
| Product | |
|---|---|
| Latency (ms) | 1.9 ms |
| Total harmonic distortion (THD) | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Frequency Specifications | |
| Audio frequency response | 20 Hz – 20 kHz (-3 dB) @ 3 dBfs |
| Acoustic Properties | |
| Audio output level | < 2 dBV max. (high level) / < 4dBU max (high level) |
| Dynamic range (>) | 134 dB |
| Connectivity | |
| Connection | Wireless |
| Ambient Conditions | |
| Operating relative humidity (≤ %) | 5 – 95 % (non-condensing) |
| Operating temperature (C) | -10 °C – +55 °C (14 °F – 131 °F) |
| Battery & Power | |
| Battery capacity (Ah) | 2.3 |
| Battery count | 2 |
| Battery included | Y |
| Battery voltage (V) | 1.5 |
| Charging current (mA) | < 300 mA / (without record and P48) |
| Electrical Properties | |
| Input voltage | ~ 2.0 – 4.35 V |
| Output power | max. 10 mA |
| Transmission power (mA) | Audio link: 10 mW ERP / BLE: max. 10 mW EIRP |
| Dimensions | |
| Height (mm) | 73 |
| Length (mm) | 350 |
| Weight (g) | 214 |
| Width (mm) | 81 |
| Product height | 73 |
| Product length | 350 |
| Product weight (g) | 163 |
| Product width | 81 |
| Bluetooth | |
| Bluetooth transmission frequency | 2402 – 2480 MHz |
