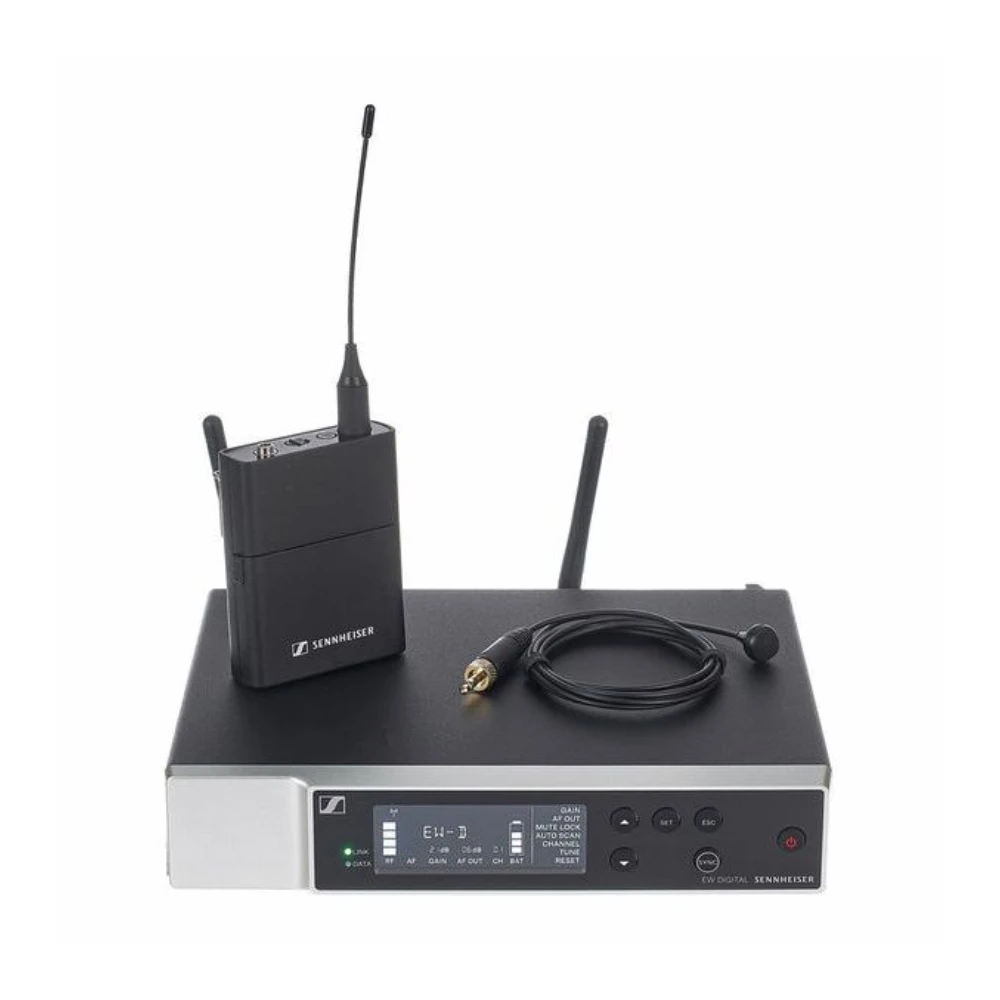

Sennheiser EW-D ME4 Set (Y1-3) Digital Wireless Cardioid Lavalier Microphone System

Sennheiser EW-D ME4 Set (Y1-3) Digital Wireless Cardioid Lavalier Microphone System - Image 2

Sennheiser EW-D ME4 Set (Y1-3) Digital Wireless Cardioid Lavalier Microphone System

Original price was: $331.00.Current price is: $95.99.

For Presenters, Performers, Lecturers
Frequency range Y1-3: 1785.2 – 1799.8 MHz
Dynamic range: 134 dB
Pro Features with Fast & Easy Set Up
ME 4 Cardioid Lav Mic
Lightweight Bodypack Transmitter
Intelligent Diversity Rackmount Receiver
Set Up/Operate from Phone via Bluetooth
8-Hour AA /12-Hour Rechargeable Battery
Expandable to 90 Mic Channels/330′ Range

SKU: Y2LUZ 99524 Categories: Audio, Wireless Tags: Sennheiser, Wireless Lavalier Microphone System

Free Shipping over $25
Fast & reliable delivery options
Enjoy top quality items for less
Multiple safe payment methods

Description
Reviews (0)

Overview

Versatile and feature-rich digital wireless system for those who speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.

Features

Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
Auto scan creates reliable connections with minimal time and effort
134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning
Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

In The Box

EW-D EM rack receiver
EW-D SK bodypack transmitter
ME 4 lavalier microphone (cardioid)
2 rod antennas
power supply with country adapters
rackmount set
4 rubber feet
quick guide
safety guide
manufacturer declaration sheet

Specifications

Product
Polar pattern	Cardioid
Total harmonic distortion (THD)	≤ -60 dB for 1 kHz @ -3 dBfs input level
Transducer principle	Pre-polarized condenser microphone
Latency (ms)	1.9 ms
Frequency Specifications
Audio frequency response	20 Hz – 20 kHz (-3 dB) @ 3 dBfs, 50 to 18,000 Hz
Frequency response	50 to 18,000 Hz
Acoustic Properties
Audio output level	18 dBu max.
Equivalent noise level (db)	31 dB
Max. sound pressure level	120 dB
Dynamic range (>)	134 dB
Connectivity
Connection	Wireless
Connectors	3.5mm
Ambient Conditions
Operating relative humidity (≤ %)	5 – 95 % (non-condensing)
Operating temperature (C)	-10 °C – +55 °C (14 °F – 131 °F)
Battery & Power
Battery capacity (Ah)	2.3
Battery count	2
Battery included	Y
Battery voltage (V)	1.5
Charging current (mA)	< 300 mA
Electrical Properties
Sensitivity	40 mV/Pa
Input voltage	11 – 13 V ⎓
Transmission power (mA)	Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
Dimensions
Dimensions	212 x 44 x 189 mm
Height (mm)	73
Length (mm)	405
Weight (g)	Approx. 1000 g (without antennas and power supply)
Width (mm)	350
Product height	73
Product length	405
Product weight (g)	2800
Product width	350
Cable length (m)	Approx. 1.60 m (62.99″)
Bluetooth
Bluetooth transmission frequency	2402 – 2480 MHz
