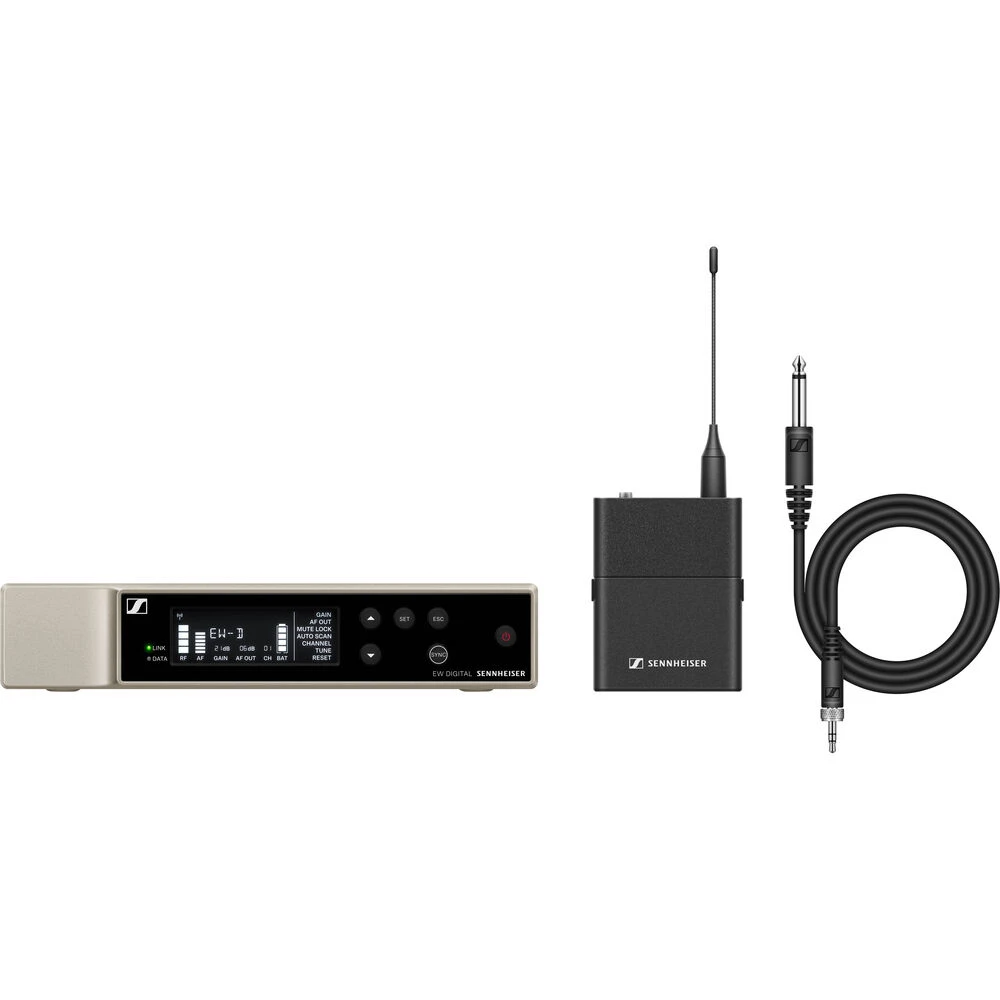

Sennheiser EW-D CI1 Set (Q1-6) – Digital Wireless Instrument System
Original price was: $357.00.$96.99Current price is: $96.99.
- For Guitar Players and Instrumentalists
- Pro Features with Fast & Easy Set Up
- CI 1 Instrument Cable
- Lightweight Bodypack Transmitter
- Intelligent Diversity Rackmount Receiver
- 134 dB of Dynamic Range, 24-Bit Audio
- 2240 Frequencies on Equidistant Grid
- Set Up/Operate from Phone via Bluetooth
- 8-Hour AA /12-Hour Rechargeable Battery
- Expandable to 90 Mic Channels/330′ Range
- Free Shipping over $25
- Fast & reliable delivery options
- Enjoy top quality items for less
- Multiple safe payment methods
Overview
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and included CI 1 instrument cable suit perfectly for daily use on stage.
Features
- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
In The Box
- EW-D EM rack receiver
- EW-D SK bodypack transmitter
- CI 1 instrument cable
- 2 rod antennas
- power supply with country adapters
- rackmount set
- 4 rubber feet
- quick guide
- safety guide
- manufacturer declaration sheet
Specifications
System
| Diversity |
True Digital Diversity |
| RF Frequency Band |
470 to 526 MHz |
| Number of RF Channel Frequencies |
2240 |
| RF Channel Scanning |
Auto-Scan |
| Max Operating Range |
328.1′ / 100 m (Line of Sight) |
| Max Transmitters per Band |
90 |
| Dynamic Range |
134 dB |
| Latency |
1.9 ms |
| Encryption |
No |
Receiver
| Antenna |
2x 1/4 Wave Rod, BNC (Rear-Mount) |
| Number of Audio Channels |
1 |
| Network I/O |
No |
| Word Clock I/O |
No |
| Gain Range |
-3 to +42 dB (3 dB Steps) |
| Frequency Response |
20 Hz to 20 kHz ±3 dB |
| Power Requirements |
AC/DC Power Adapter |
Transmitter
| Included Transmitters |
1x Bodypack |
| RF Output Power |
10 mW (ERP) Up to 10 mW (EIRP) |
| Muting |
Mute Switch |
| Auto-Level/Gain |
No |
| Sync Method |
Bluetooth |
| Transmitter Battery Life |
8 Hours (Alkaline) 12 Hours (Sennheiser Battery Pack) |
| AC/DC Power Adapter |
11 to 13 VDC at 300 mA (Included) |
| Rackmount Size |
1 RU (1/2 Rack) |
