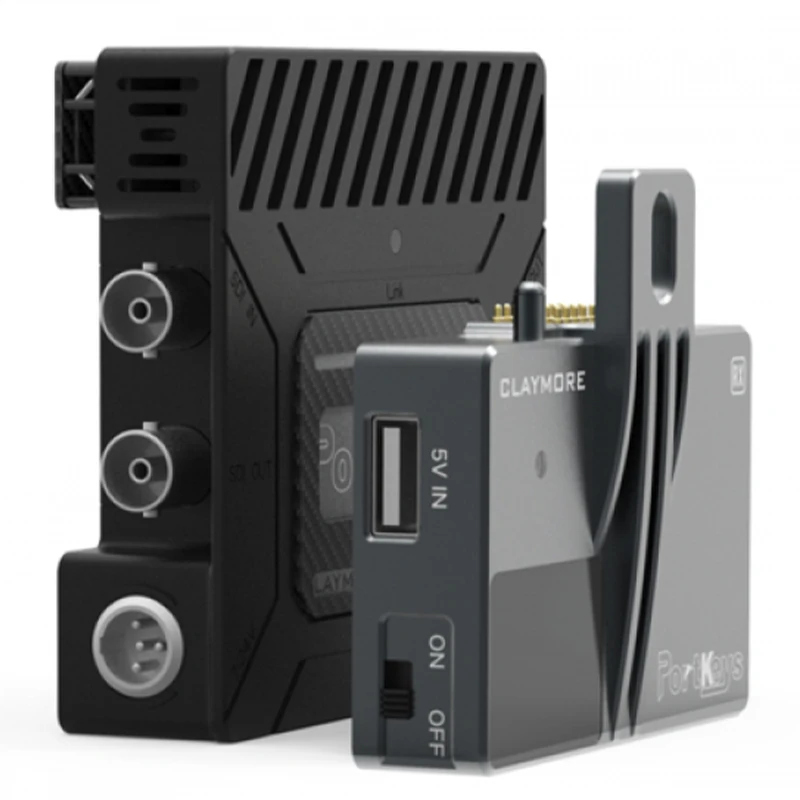

Portkeys Claymore Wireless HDMI & SDI Video Transmitter And Receiver Kit

Portkeys Claymore Transmitter specs.

Fenquency Band: 60G
Transmitting Angle: 160°
Transmitting Range: 30M(Empty Area), Gimbal, Stabilizer. Better to downwards to ground
Singal Type: 3G-SDI/HDMI Cross Conversion, Through-out
Interface: 3G-SDI，HDMI
System Power Supply: Canon E6 7-24V mini XLR Power Interface
Weight: 155g
Dimension: 90x80x23mm
Power Consumption: 7.5W
Material: PC Plastic, Aluminium Alloy,Carbon Fibre

Portkeys Claymore Receiver Specs

Frenquency Band: 60G
Transmitting Angle: 160°
Transmitting Range: 30M(Empty Area), Gimbal, Stabilizer. Better to downwards to ground
Singal Type: HDMI
Interface: HDMI
System Power Supply: USB 5V Power Interface
Weight: 90g
Dimension: 80X68X21mm
Power Consumption: 3W
Material: Aluminium Alloy, Tempered Glass,Carbon Fibre

Claymore Transmitter: SDI Input/Output Signal, Cross Conversion

1920×1080p@50Hz,59.94Hz,60Hz YUV422
1920×[email protected],24Hz,25Hz,29.97Hz,30Hz YUV444/YUV422/RGB444
1920×[email protected],24Hz,25Hz,29.97Hz,30Hz YUV444/YUV422/RGB444
1920×1080i@50Hz,59.94Hz,60Hz YUV444/YUV422/RGB444
1280×720p @23.98Hz,24Hz,25Hz,29.97Hz,30Hz,50,59Hz.94,60Hz
YUV444/YUV422/RGB444
720×480i @59.94Hz YUV422
720×576i @50Hz YUV422

Claymore Receiver: HDMI Input/Output Signal, Cross Conversion

1920×[email protected],24Hz,25Hz,29.97Hz,30Hz,50.94Hz,60Hz
1920×[email protected],24Hz,25Hz,29.97Hz,30Hz
1920×1080p@50Hz,59.94Hz,60Hz
1280×720p@50Hz,59.94Hz,60Hz
