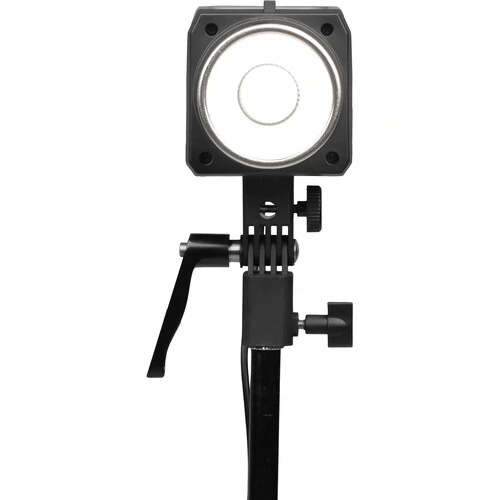

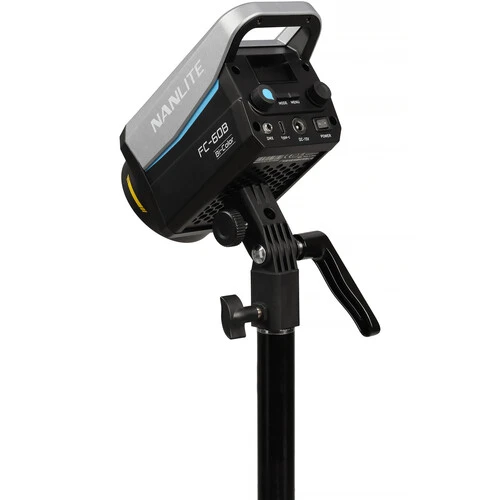

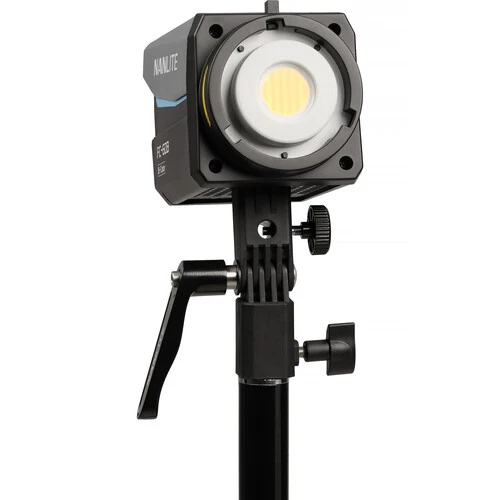

Nanlite FC60B Bi-Color LED Spotlight

Overview

Nanlite is expanding into the budget-friendly COB LED market with the FC60B Bi-Color LED Spotlight—a compact, cost-effective lighting solution designed for creatives who want professional-grade features at an affordable price. As the smallest fixture in the FC series, the 60W FC60B offers the perfect balance of portability and performance, ideal for smaller spaces or on-location shoots. Its sleek, wing-shaped top housing is similar to the FC300B and FC500B, giving it a modern, professional look. With flexible AC or battery power options, the FC60B is designed for versatility, offering variable bi-color illumination for a range of shooting conditions. Its color accuracy ensures high-quality lighting, and advanced control options make it easy to customize your setup. A USB-C port allows you to power it via optional power banks for additional convenience. The FC60B also includes an NP-F handheld battery grip, with the option for a V-mount battery using a separate Nanlite grip. For safe transport and storage, the light comes with a corrosion-resistant, shockproof hard foam case. Whether in the studio or on the go, the FC60B provides reliable and flexible lighting.

Bi-Color Output with Advanced Features

The FC60B offers sophisticated features like a maximum output mode for full power and a constant output mode, ensuring consistent intensity across its 2700-6500K CCT range. It can be dimmed from 0 to 100%, allowing users to precisely control the light’s intensity for both photo and video work. At 5600K, the fixture delivers 3027 lux at 3.3′, which increases to an impressive 12,510 lux at 3.3′ when used with the included mini reflector.

---

Color Accuracy

The FC60B ensures high color fidelity with a CRI rating of 96 and a TLCI of 98, providing confidence that the color reproduction will be precise and true to life.

---

Multiple Control Options

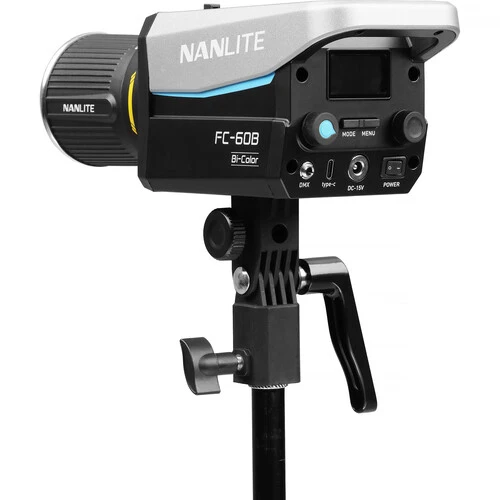

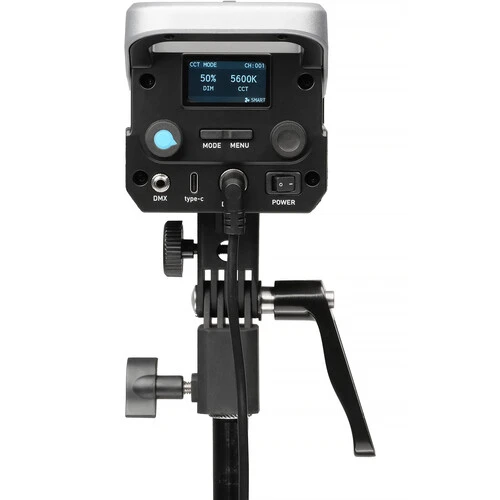

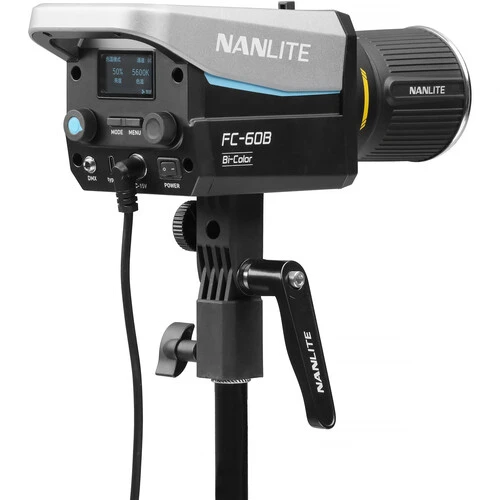

The FC60B is equipped with a 1.4″ onboard display for easy control, but also offers various remote control options:

• Control via smartphone using the NANLINK app, available for both iOS and Android devices.
• Operate the light remotely on a 2.4 GHz connection using the optional WS-TB-1 transmitter or WS-RC-C2 remote control for larger setups.
• A locking 3.5mm DMX/RDM port enables seamless integration into DMX-controlled environments with the optional CB-DMX-3.5C-1/2 DMX adapter cable.

---

12 Practical Lighting Effects

The FC60B comes with 12 customizable lighting effects, which can be saved as presets via the NANLINK app:

• CCT loop, INT loop, flash, pulse, storm, TV, paparazzi, candle/fire, bad bulb, firework, explosion, and welding.

---

AC Operation

For convenient studio setups, the FC60B can be plugged into a standard AC outlet, with the included power adapter and a 14.7′ power cable.

---

Extended Power Options

Offering flexible battery options for longer runtimes, the FC60B can be powered in various ways:

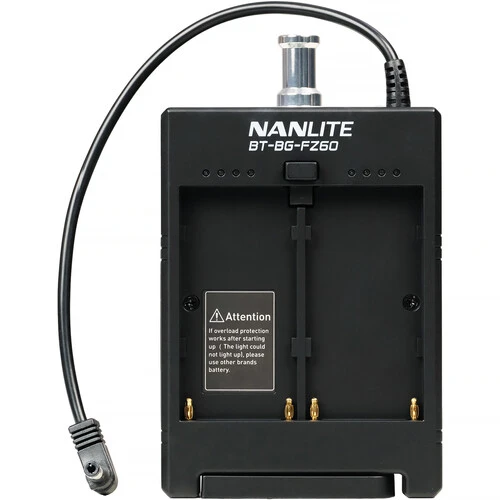

• Operates with two separately available NP-F batteries using the included battery handgrip.
• Can also be powered by a 14.8V V-mount battery with the optional BH-FZ60-V V-mount battery handgrip.
• A USB-C port supports external PD 3.0 or 2.0 power banks and chargers up to 30W.

---

Four Fan Modes

The light features four fan modes to adjust for speed or complete silence:

• Smart, Full Speed, Low Speed, and Off modes (with a maximum 15% output when turned off).

---

FM Mount & Bowens Adapter

The FC60B is compatible with Nanlite’s proprietary FM light modifiers, such as softboxes and the optional FL-11 Fresnel lens or projection attachment. It also includes a Bowens adapter, broadening its compatibility with various light shapers. Both the light and the Bowens mount come with an integrated umbrella holder.

---

Compact & Lightweight Design

With a compact design, the FC60B is bright enough for many applications and small enough to fit in tight spaces or hide behind objects without entering the frame. It measures 7.1 x 6.6 x 4.1″ and weighs just 1.5 lbs, making it an ideal portable lighting option.

---

Additional Features

• 60W power output
• Constructed from durable composite plastic
• USB port for firmware updates and to power optional wireless DMX receivers

---

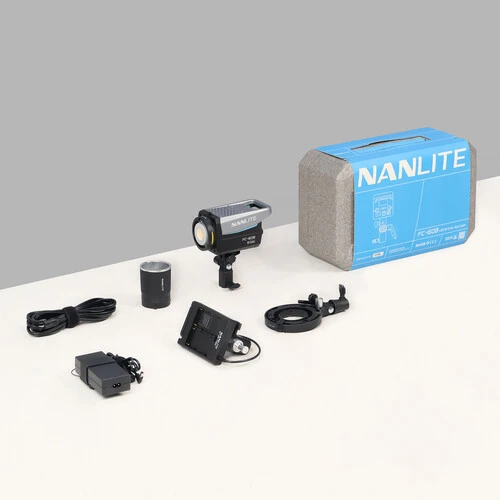

In The Box

Nanlite FC60B Bi-Color LED Spotlight

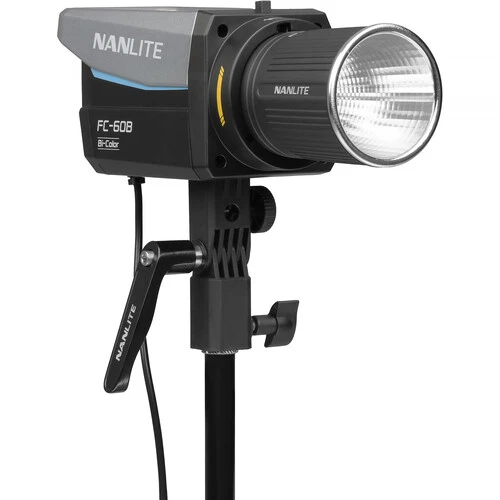

Nanlite Forza Mini Reflector

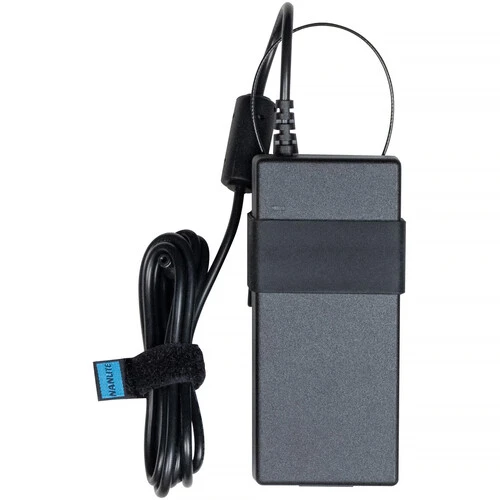

AC Power Adapter

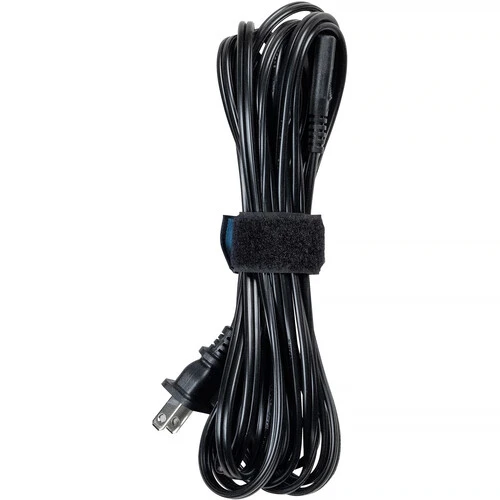

AC Power Cable (14.7′)
Nanlite Forza 60 Battery Grip (Sony L / NP-F)
Nanlite Forza 60 Bowens Mount Adapter

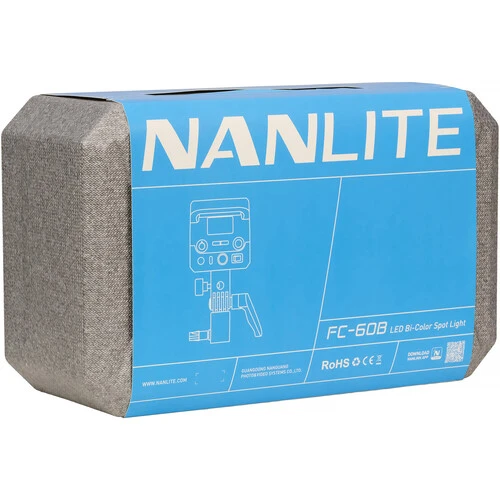

Hard Foam Carry Case
Limited 2-Year Manufacturer Warranty
Registration Extension: 1-Year
