MID49 Universal Speedball Monitor Mount

Overview

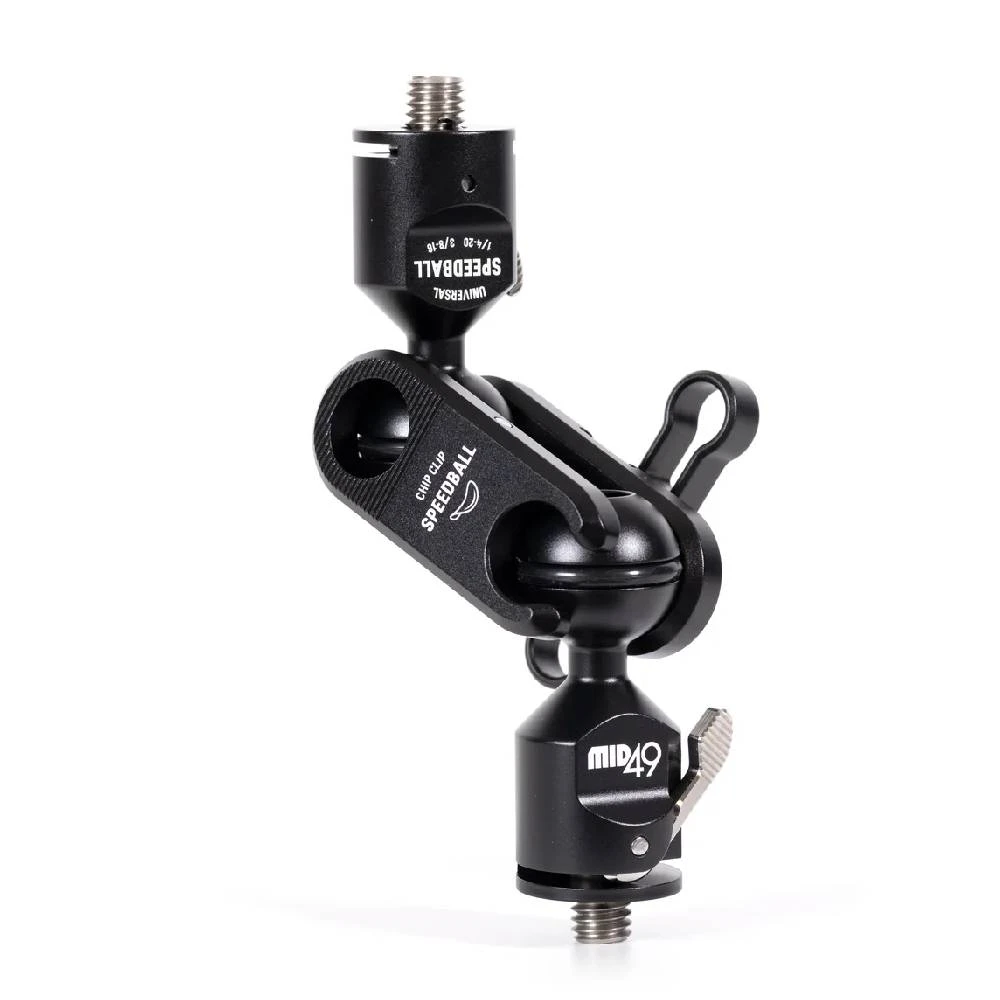

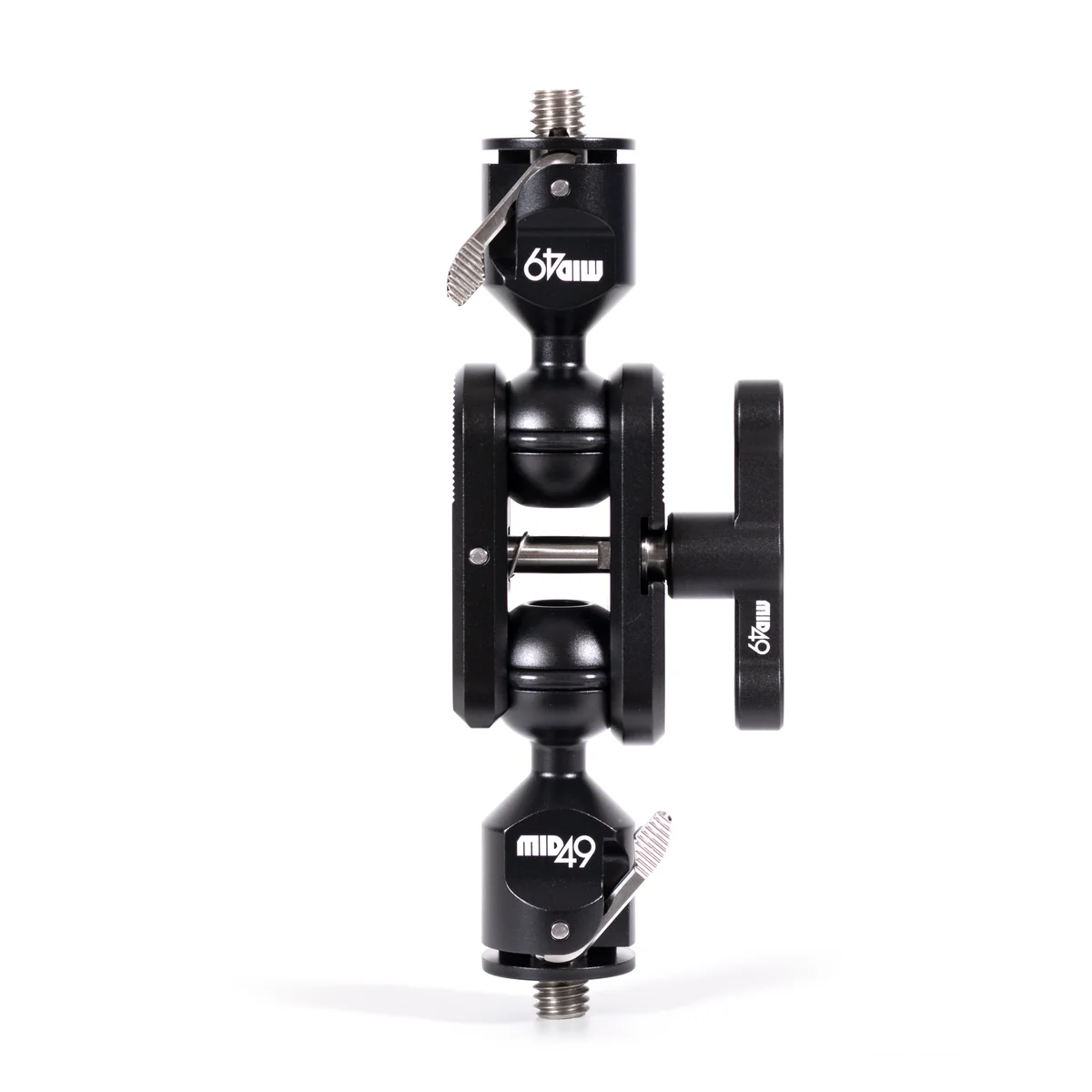

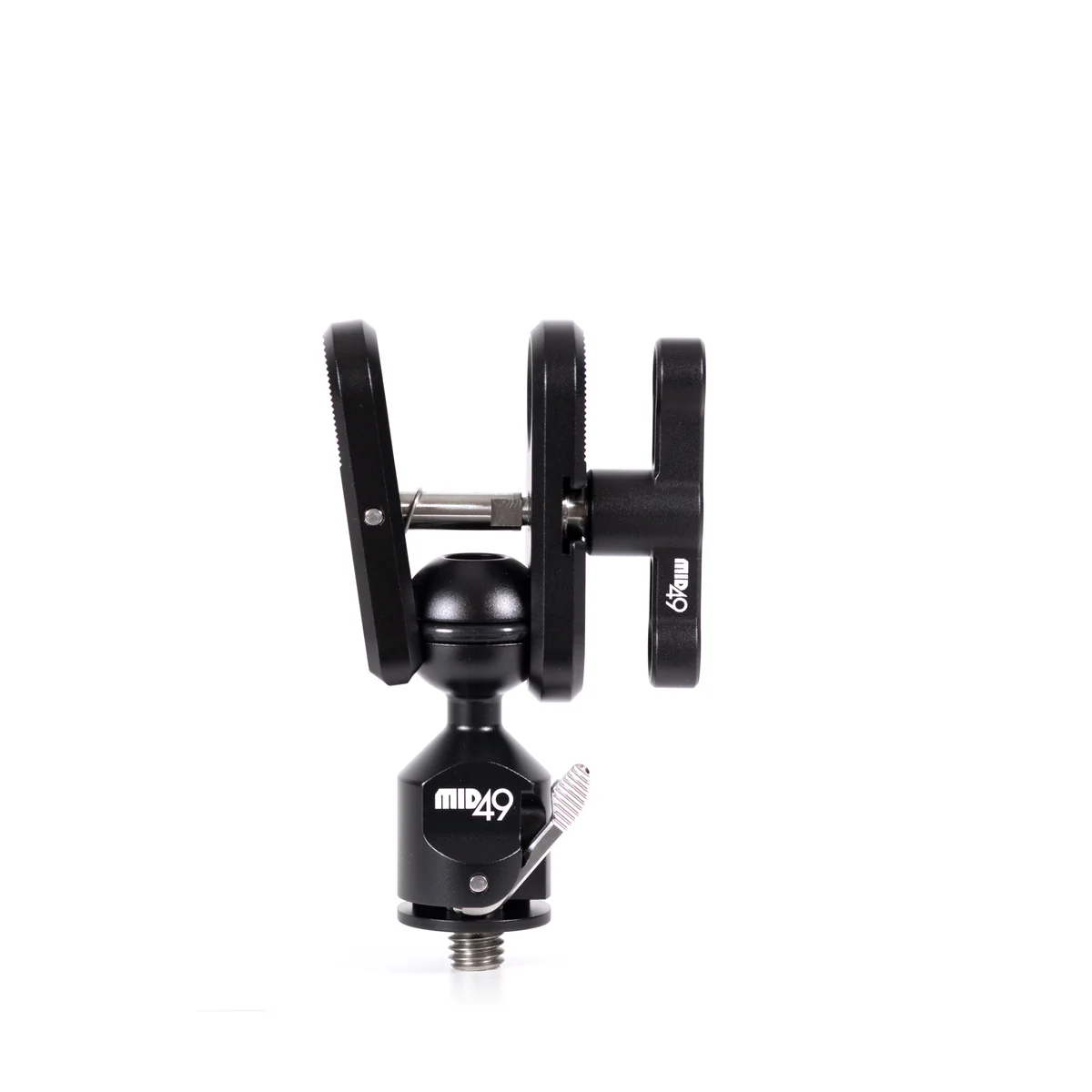

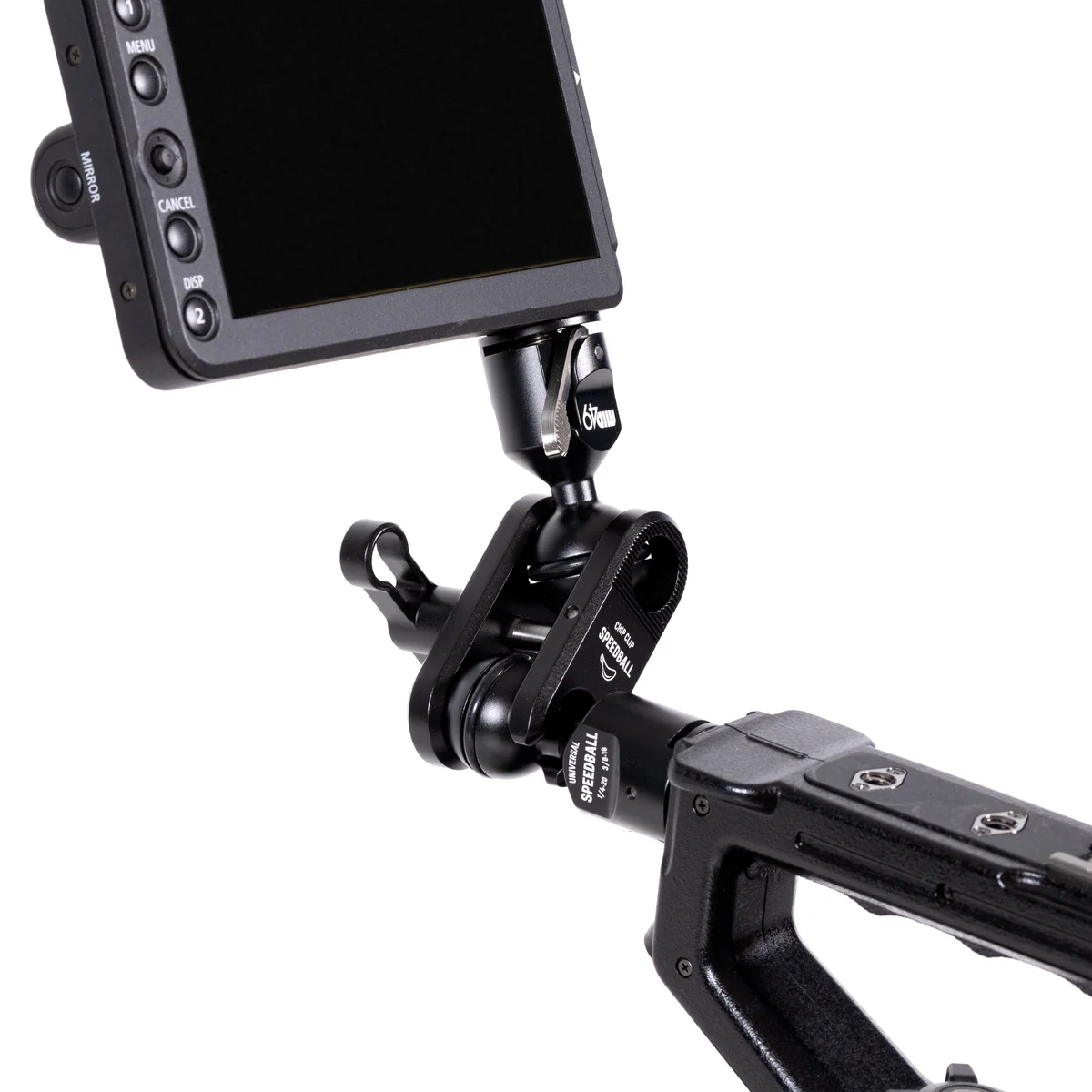

Universal Speedball Monitor Mount is an articulating arm with combination 1/4-20 and 3/8-16 mounting screws on each end and one double-ball clamp.

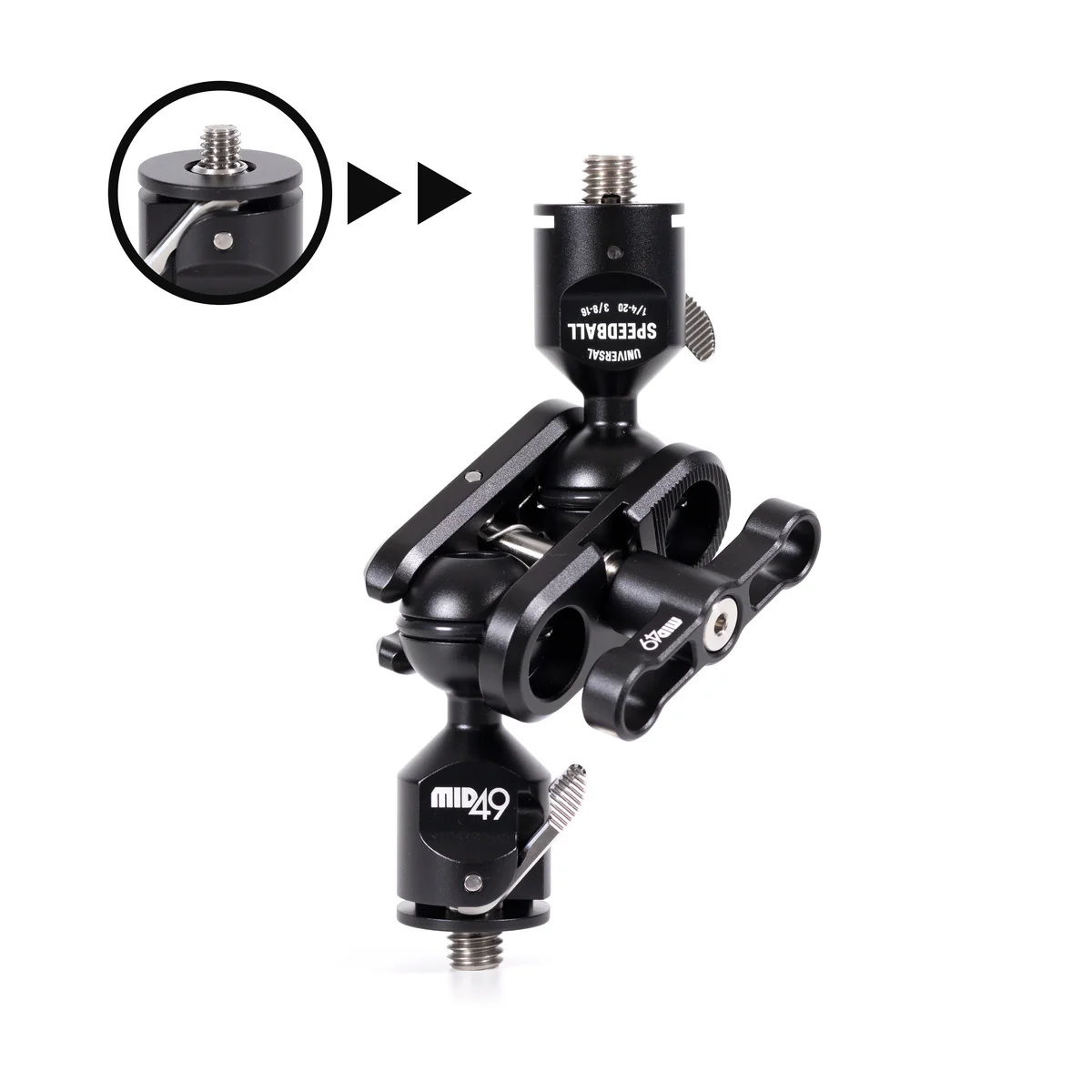

Each ball end contains both mounting thread standards. Push the 3/8-16 outer screw down to reveal the hidden 1/4-20.

Install the ball with the cam-lever in the down position to finger-tight, then lift the lever to add extra locking force to the assembly. The extra force of the cam-lever design allows the arm to lock in place without the use of messy rubber pads.

The “Chip Clip” clamp design allows for easy, annoyance-free installation, and the ratcheting thumbscrew can be pulled out and repositioned.

Universal Speedball components are compatible with any other brand of 1 inch (25mm) ball attachment like Ultralight Control Systems, Wooden Camera, etc.

• The Universal Speedball Monitor Mount is a versatile articulating arm featuring 1/4-20 and 3/8-16 mounting screws on each end, along with a double-ball clamp for added flexibility.
• Each ball joint offers both mounting thread options. Simply press down the 3/8-16 screw to reveal the hidden 1/4-20 thread for quick adaptation.
• To install, tighten the ball with the cam-lever in the down position, then raise the lever to increase the locking force. This cam-lever system secures the arm without the need for rubber pads.
• The “Chip Clip” clamp ensures easy, hassle-free installation, and the adjustable ratcheting thumbscrew allows for repositioning.
• The Universal Speedball system is fully compatible with any 1-inch (25mm) ball attachment systems from other brands like Ultralight Control Systems, Wooden Camera, and more.

In The Box

MID49 Universal Speedball Monitor Mount

Specifications

Top Mount	1/4″-20 Male with Retractable 3/8″-16 Sheath
Bottom Mount	1/4″-20 Male with Retractable 3/8″-16 Sheath
Points of Articulation	2
Maximum Length	6.0″ / 152 mm
Width	2.5″ / 63 mm
Depth	1″ / 25 mm
Weight	7.1 oz / 201 g
