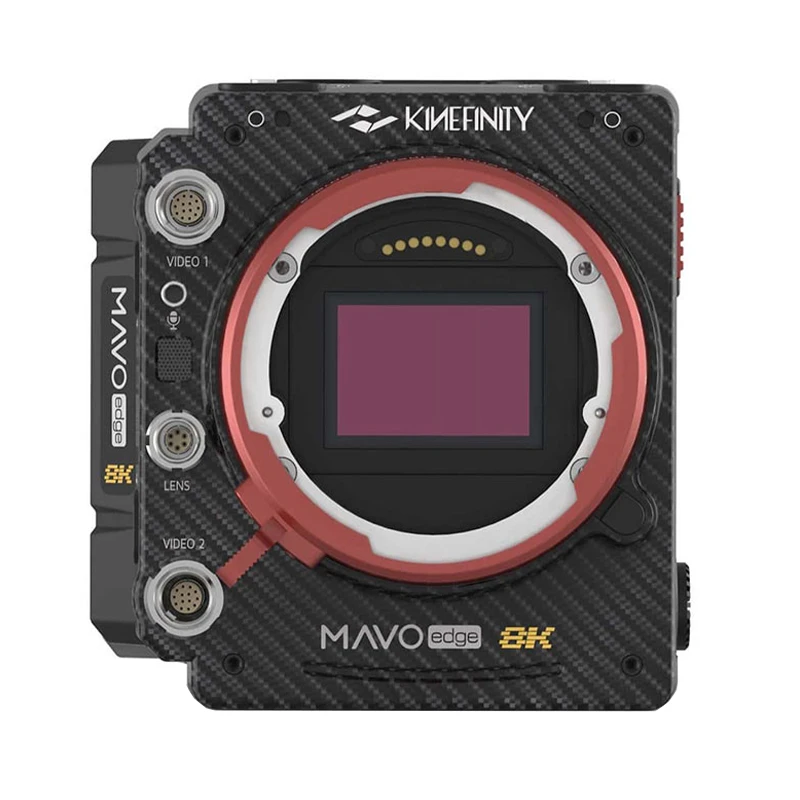

Kinefinity MAVO EDGE 8K Body + Professional Pack

Trade in deals available for current Kinefinity Terra 4K, MAVO 6K or MAVO LF owners. Please contact our sales team for more information.

Stunning 8K 75P Imaging Sensor
The new 8K imaging sensor on the MAVO Edge is an amazing canvas with 45 million pixels on a 36x24mm full-frame CMOS sensor featuring 800/3200 dual native ISO, 8K Wide up to 75fps and latitude up to 14+ stops. Even at open gate 3:2 , surprisingly this beast can still deliver a gorgeous image of 45 million pixels at up to 48 frames per second.

MAVO Edge ensures natural color, pleasing skin tones, low noise, high dynamic range and stunning details in organic and delicate way, cinematically.
Benefiting from a greatly upgraded, cutting-edge image processing platform, MAVO Edge can capture images as 100fps at 6K Wide or 160fps at 4K Wide. At the same time, MAVO Edge also supports oversampling in Full Frame mode to output 6K or 4K resolutions which will result in more details and latitude with the same optical format.

Powerful 8K ProRes RAW
MAVO Edge can directly record Apple’s newest ProRes RAW codec which has been highly expected by the video industry from 2018 NAB. From the capture of its 8K CMOS image over the delicate color processing to the 8K ProRes RAW encoding and storage, these complex processes and the ultra-high bandwidth bitrate processing all happen within the compact MAVO Edge body. Aside from this, MAVO Edge also supports in-camera ProRes4444/XQ, ProRes422HQ, and H264 proxy.

Comprehensive Power Solution

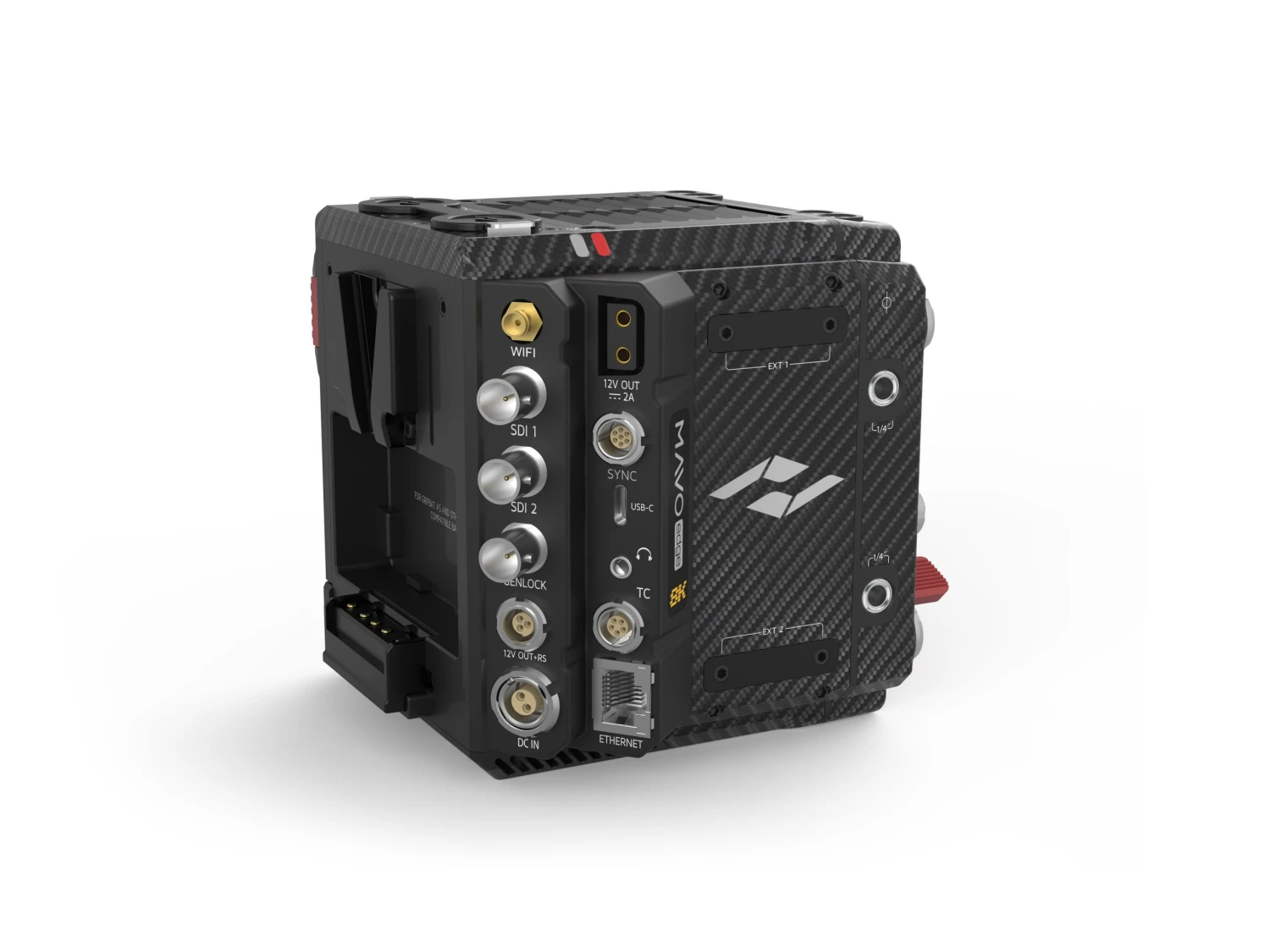

An innovative hybrid battery plate is introduced to MAVO Edge, to meet power demands of the camera and accessories in different shooting scenarios. The integrated combined battery plate can work with 14.8V broadcast V-mount batteries like KineBAT PD 75/150. When handheld or gimbal way, the camera can be powered directly by compatible BP-U30 type batteries like GripBAT 4S, so the operator could work in a cord-free and smooth way, thanks to a reduced payload and no extra power cord. MAVO Edge’s body offers standard a D-Tap port, 12V RS port and Lens port (12V) to power the third-party accessories like wireless video transmitter and wireless lens motor directly.

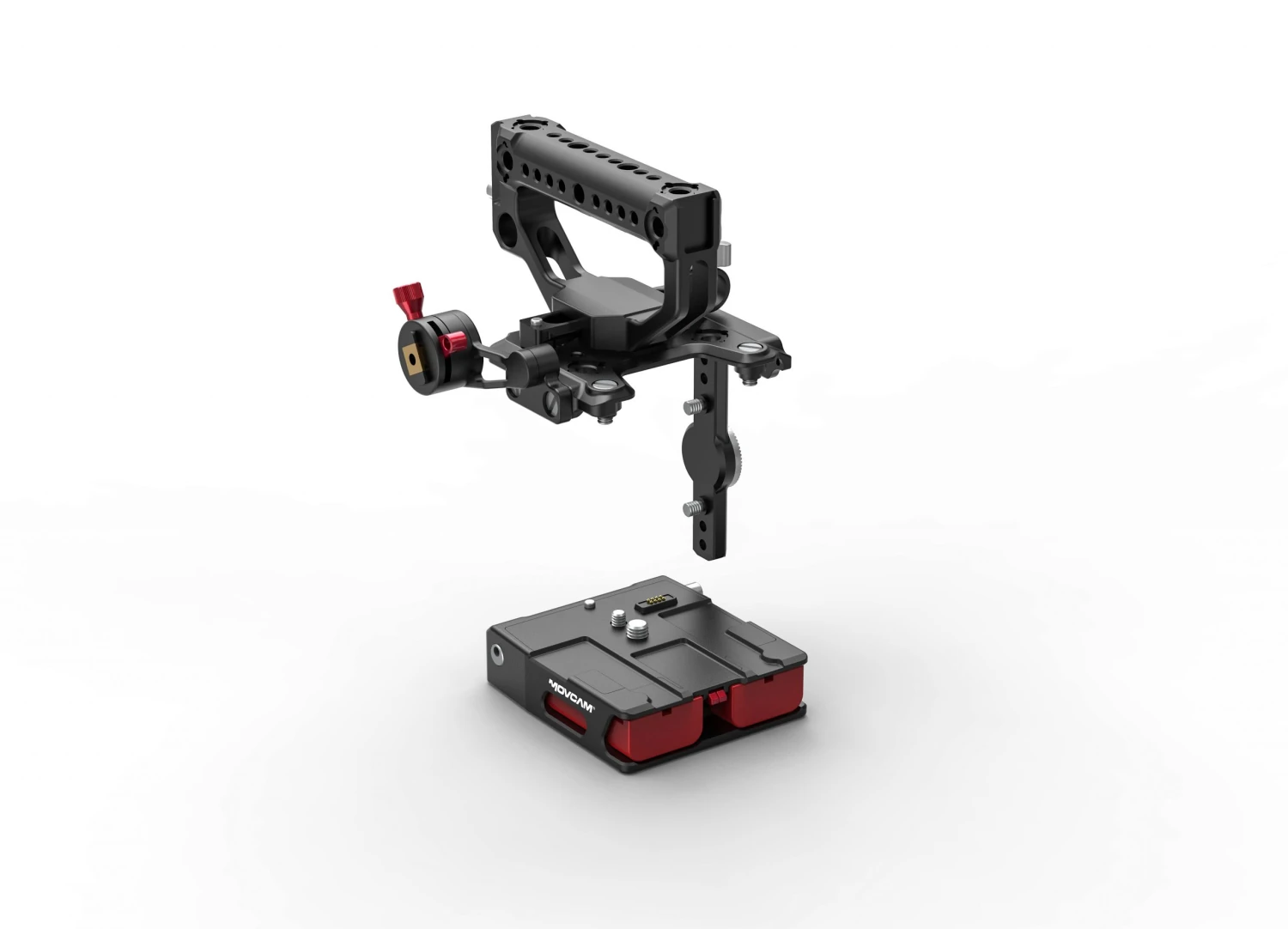

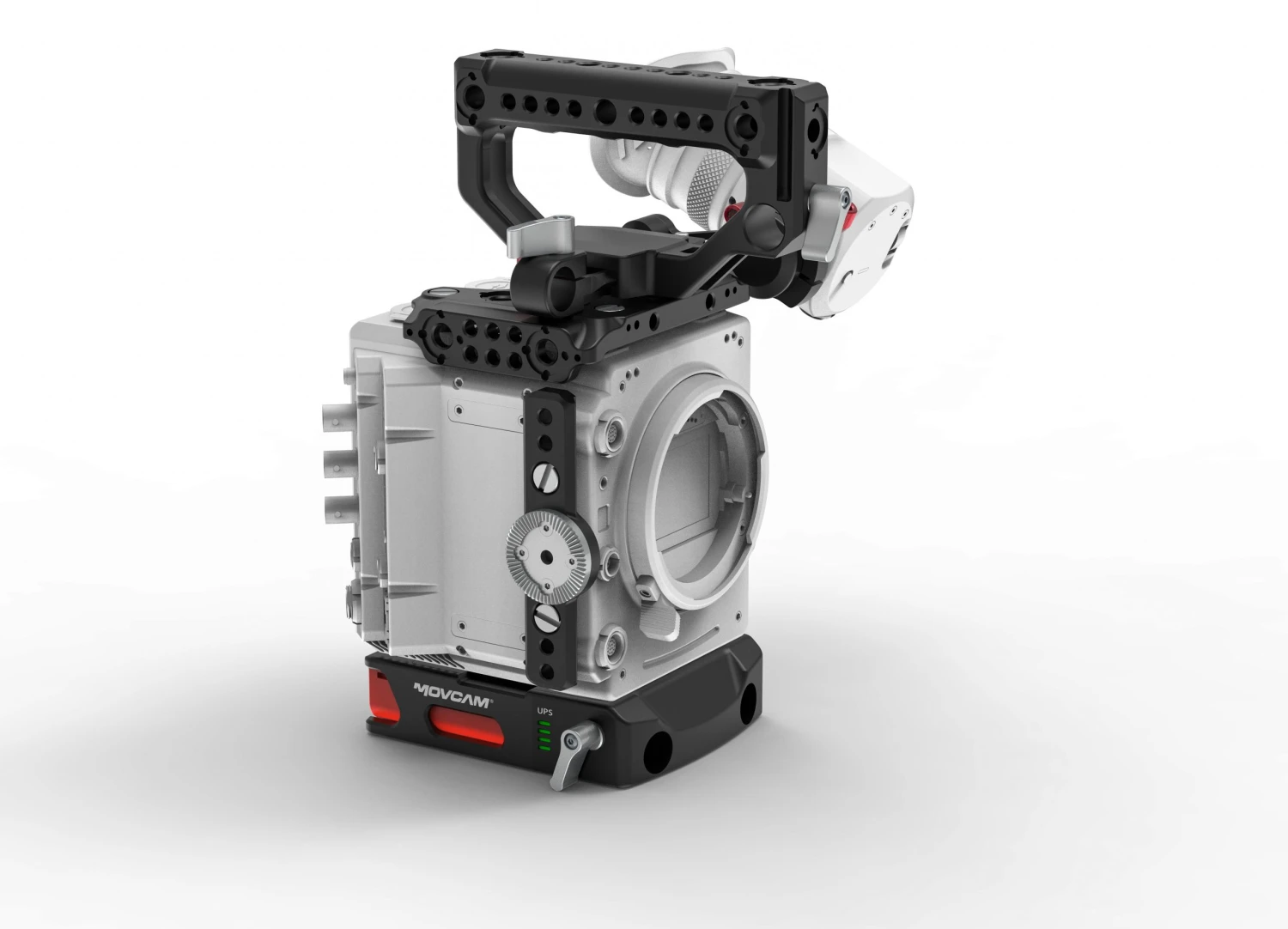

These ports eliminate the need for extra batteries or power converters thus streamlining the camera setup and improving the system stability. In addition, Movcam brings dedicated KineKIT for MAVO Edge, especially the innovative 15mm baseplate with UPS function powered by two NP-F550 type batteries, due to specialized UPS power contacts at the bottom of MAVO Edge. The creative power solution can not only power the MAVO Edge independently, allowing for an efficient kit space utilization, but also work as UPS power source to supply uninterrupted power to the camera when replacing V-mount batteries or BP-U30 type batteries.
