DwarfConnection DC-LINK-ULR1.MKII WHDI Set
Original price was: $388.00.$95.99Current price is: $95.99.
- Up to 1200m wireless video
- Uncompressed video up to 1080p60 4: 2: 2 10-bit
- 4: 4: 4 sampling possible with exclusive transmission of the video signal via HDMI input and output
- Frequency scanner via HDMI output
- Antenna function monitor via HDMI output
- Adjustable fans, can be switched off in cinema mode
- OSD can be switched off
- OLED display on the side
- Temperature display on the transmitter
- Supports META data and start / stop function
- Fully compatible with CLR1, CLR2, LR1, LR2
- Delay less than 1ms
- 3G-SDI & HDMI via the built-in converter
- Works with an unlimited number of wireless receivers
- Manual frequency selection – does not require pairing
- Stable connection using the preset channels and no DFS
- Works with 5GHz ISM band (license free)
- Free Shipping over $25
- Fast & reliable delivery options
- Enjoy top quality items for less
- Multiple safe payment methods
Overview

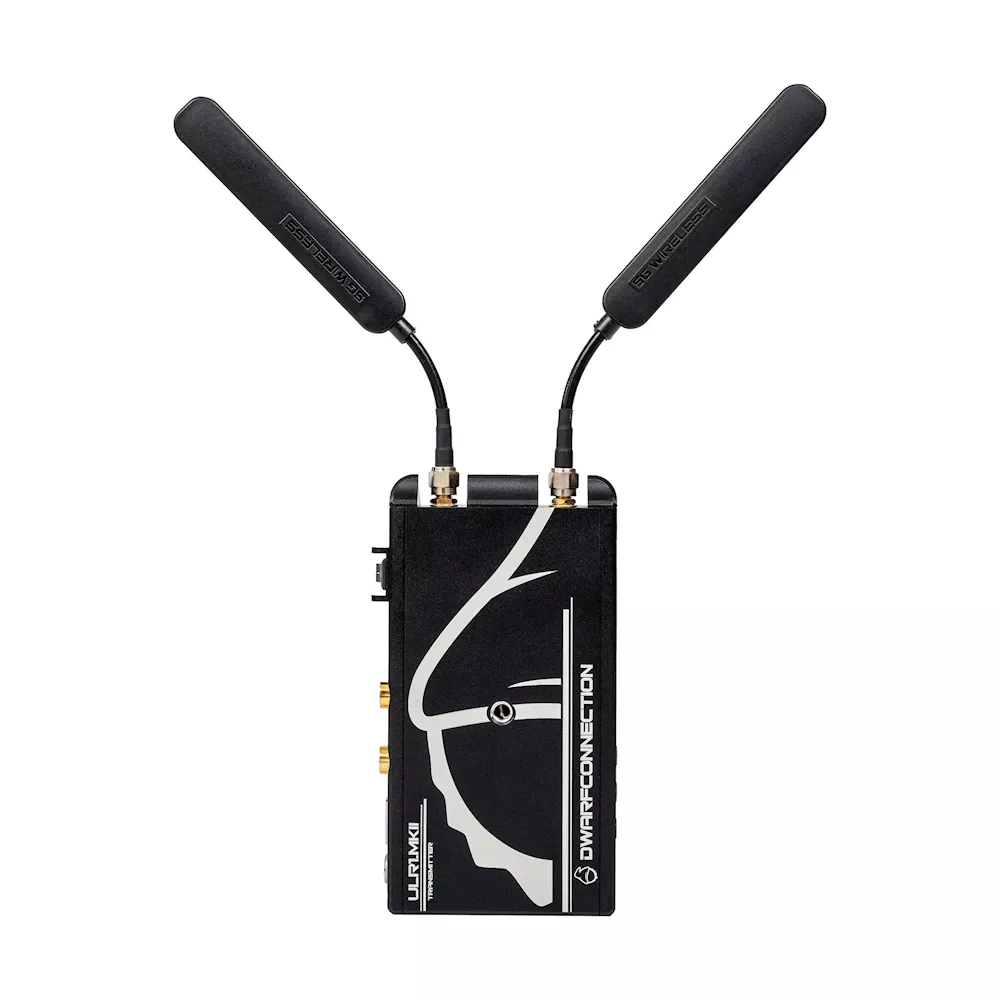

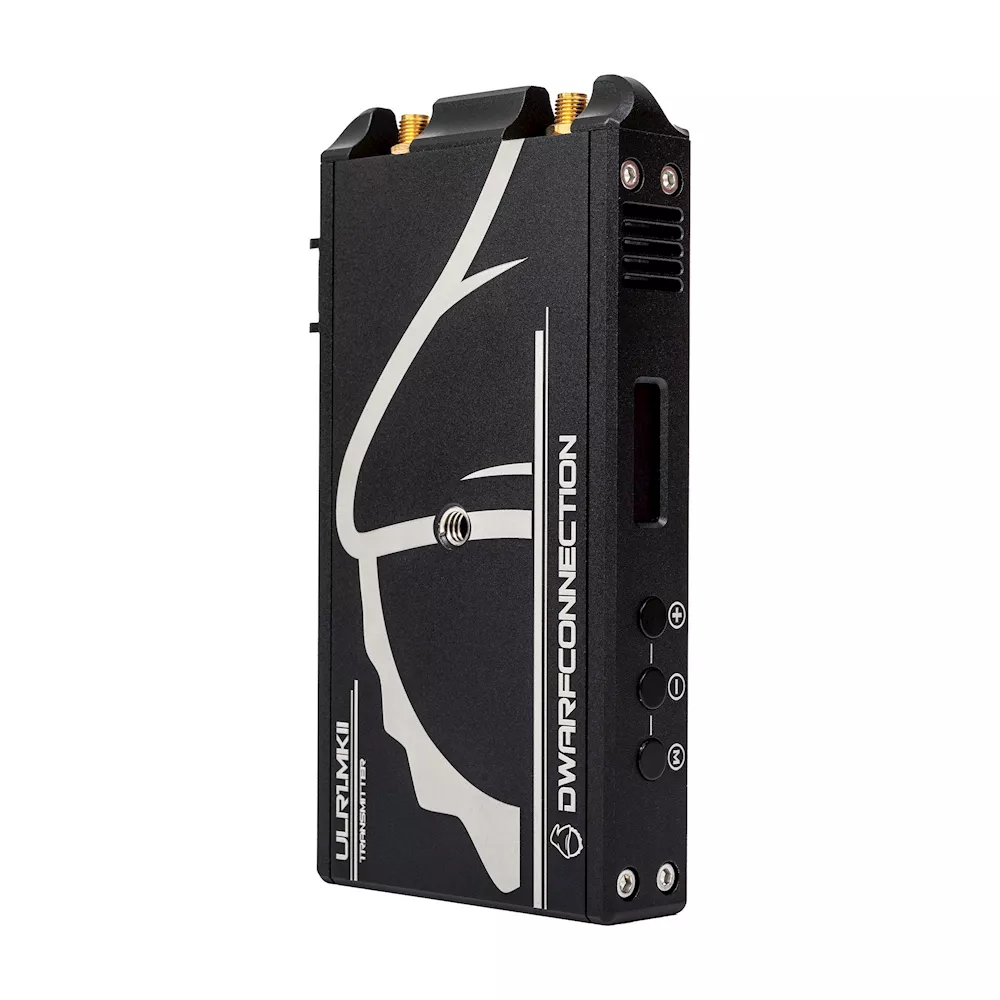

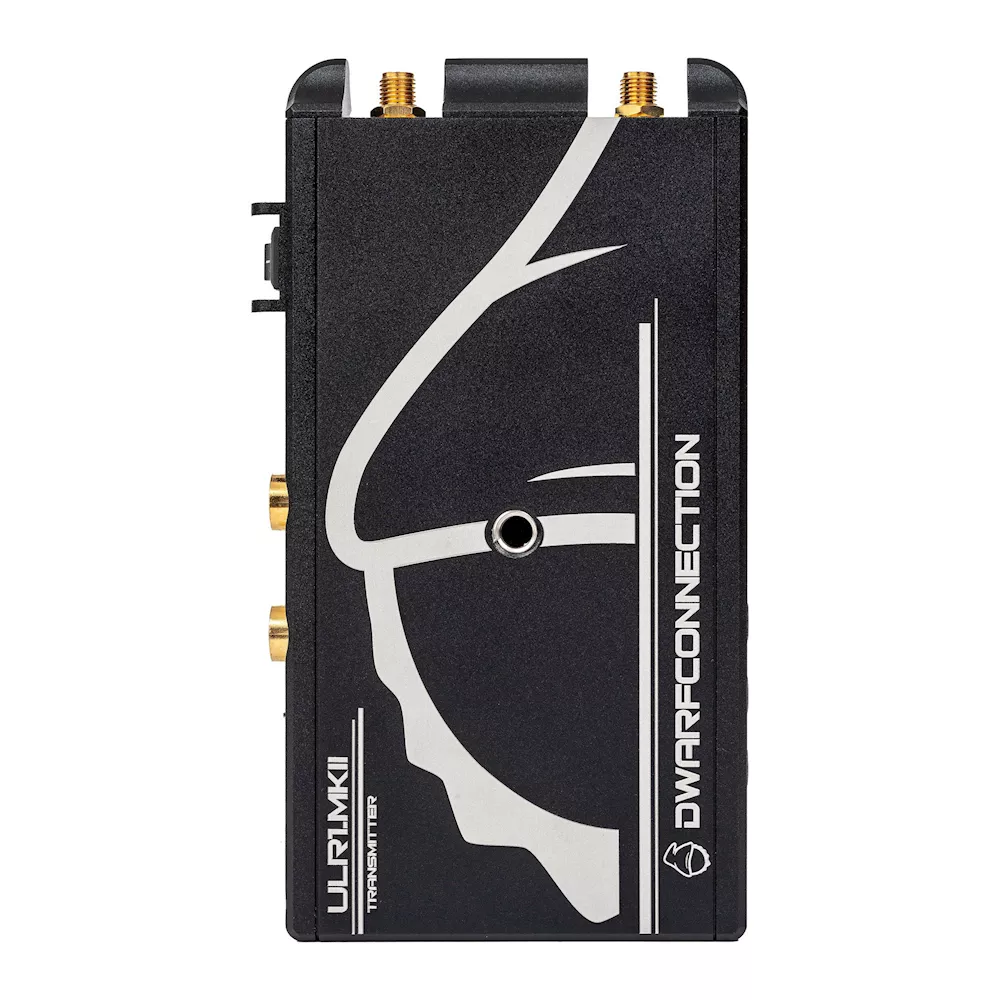

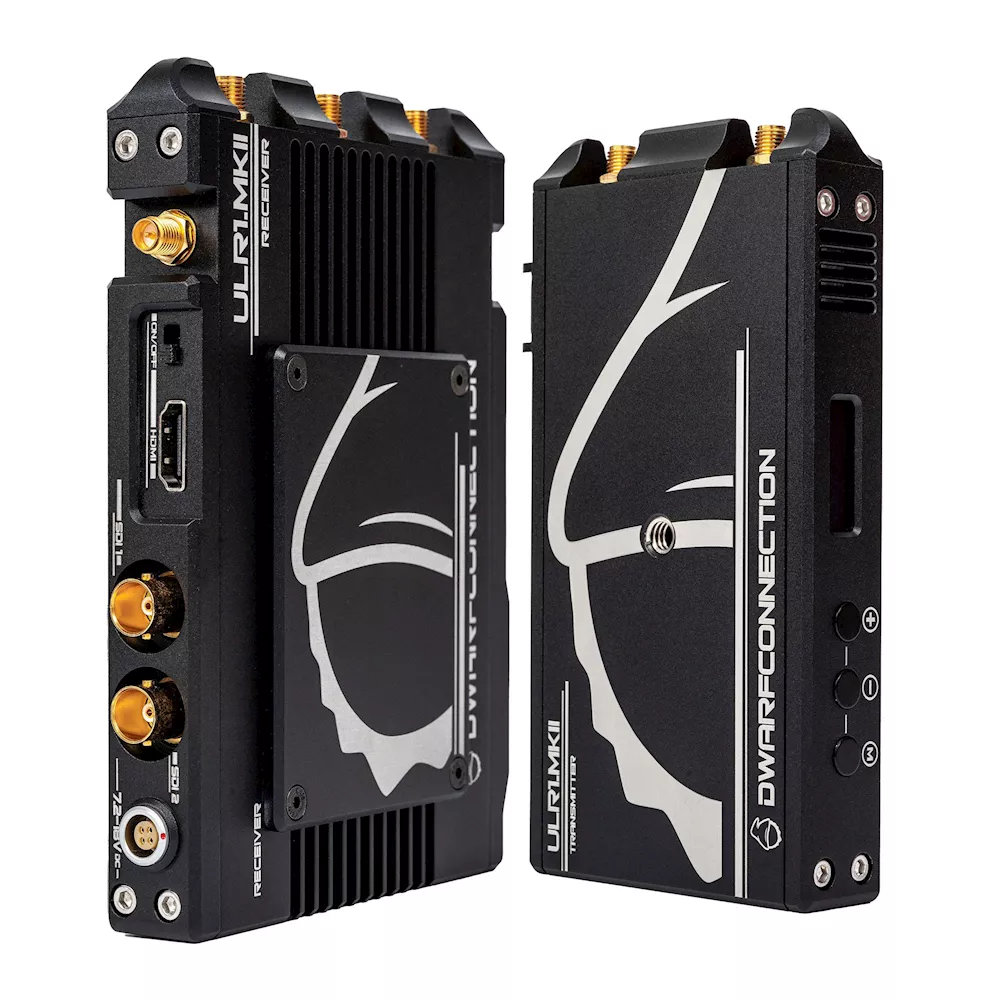

ULR1 | Video Transmission System with SDI and HDMI up to 1200m Using WHDI Technology
The DwarfConnection DC-LINK-ULR1 stands as the premier model in the 2nd generation of video transmission systems from DwarfConnection. With a direct line-of-sight range of up to 1200 meters, it ranks among the most powerful WHDI systems available. Like all 2nd generation systems, the ULR1 is backward compatible and can be integrated and expanded with the entire DFS-free DC-LINK product range.
To ensure optimal channel selection, the ULR1 features a frequency scanner and an antenna function monitor, known as DC-SCAN, which can output through the receiver’s HDMI port. Note that the wireless video transmission and frequency monitoring functions cannot be used simultaneously.
DC-LINK systems achieve exceptional stability by intentionally forgoing DFS (Dynamic Frequency Selection), which confines their use to specified indoor channels.
The fan settings on both transmitters and receivers can be adjusted or turned off. For live area use, the on-screen display (OSD) can also be disabled.

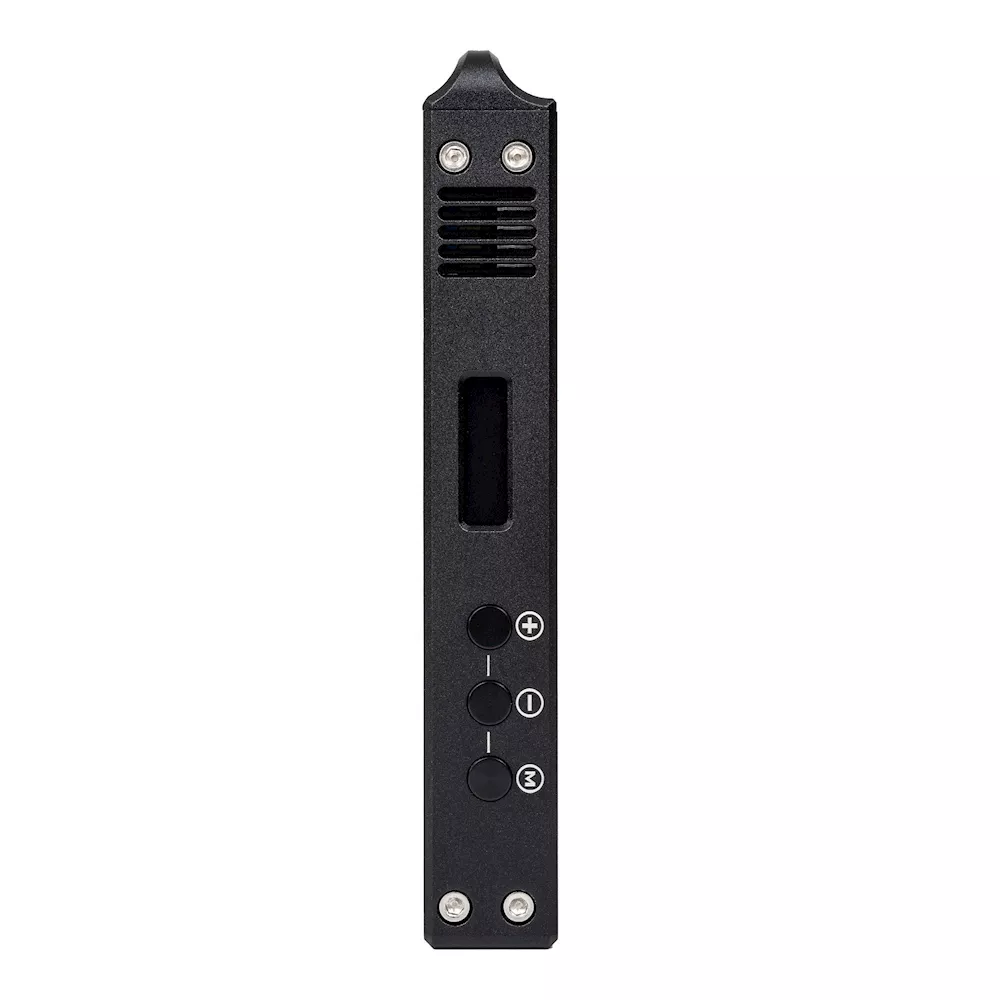

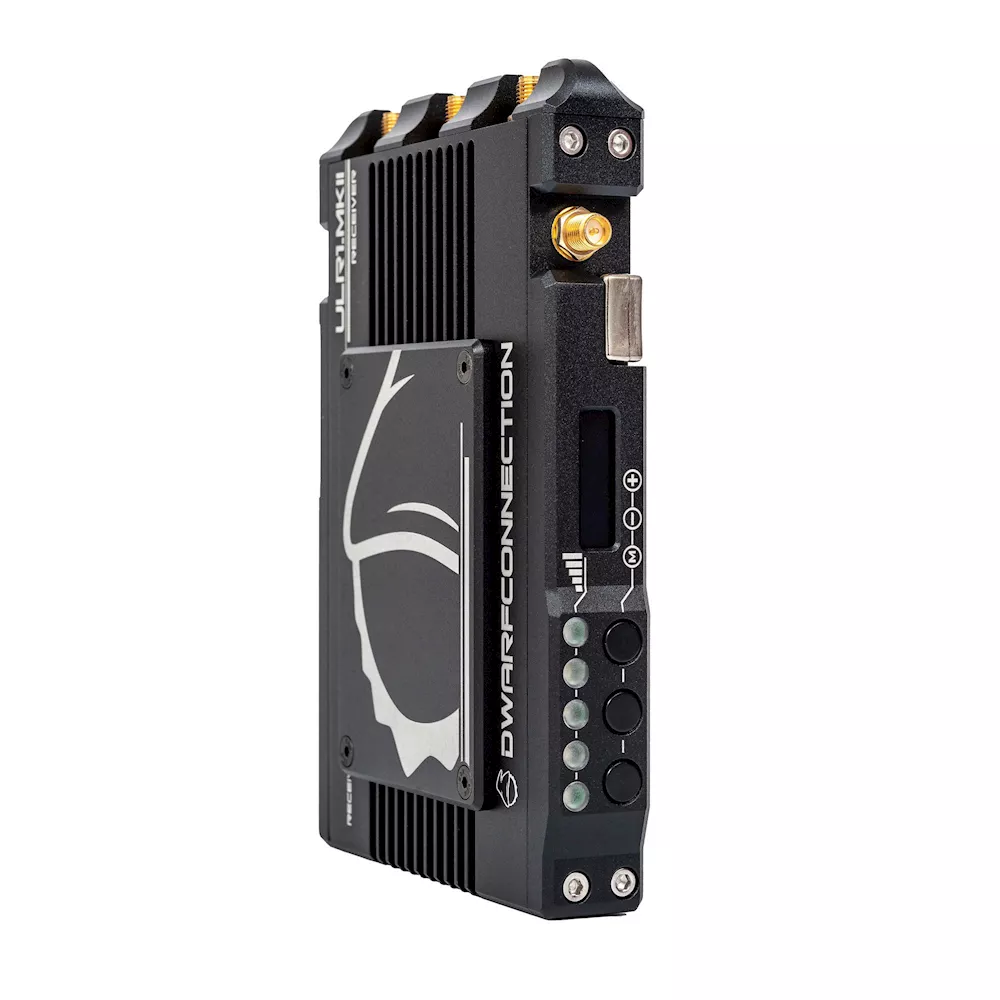

An OLED display on both the transmitter and receiver shows the selected channel, temperature, and battery charge level. Five large LEDs on the receiver indicate reception quality, even in bright environments.
The ULR1 supports the transmission of time code and start/stop signals. It also facilitates quick switching between the camera image and recorded footage, making it one of the most versatile video transmission systems available.

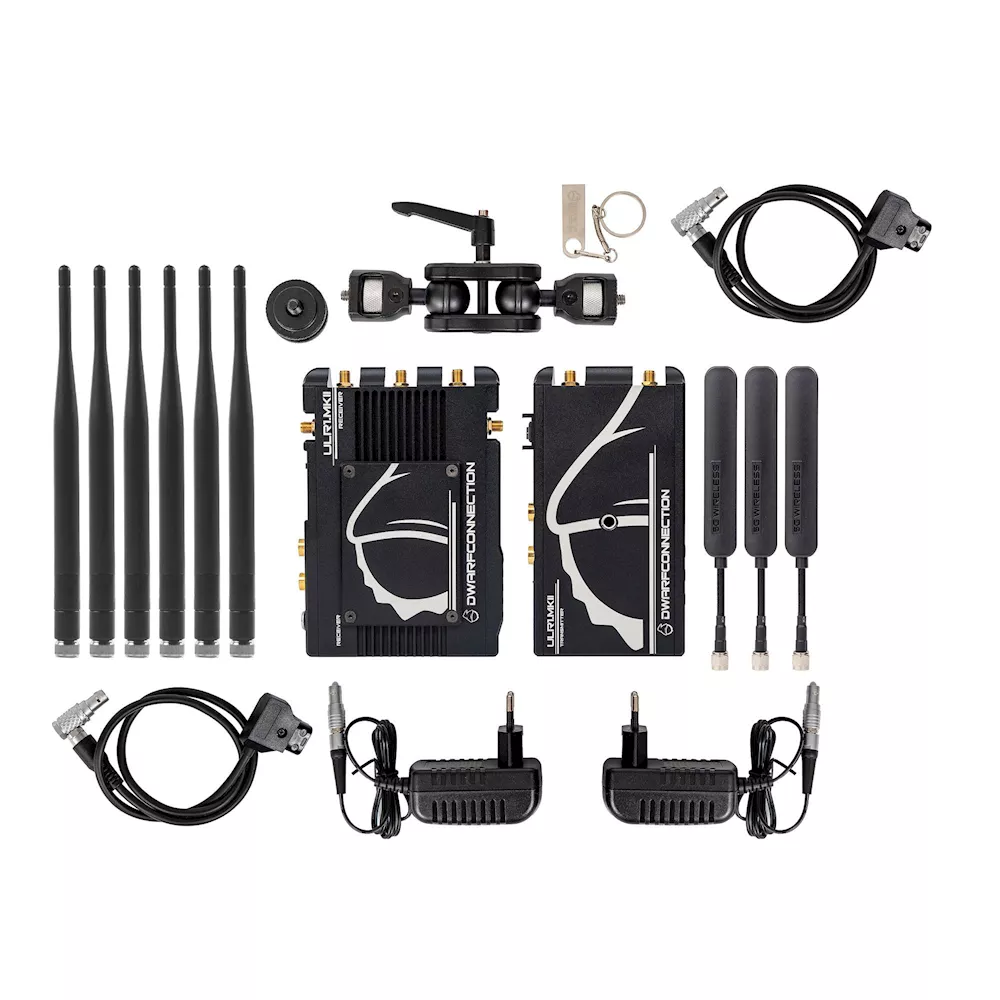

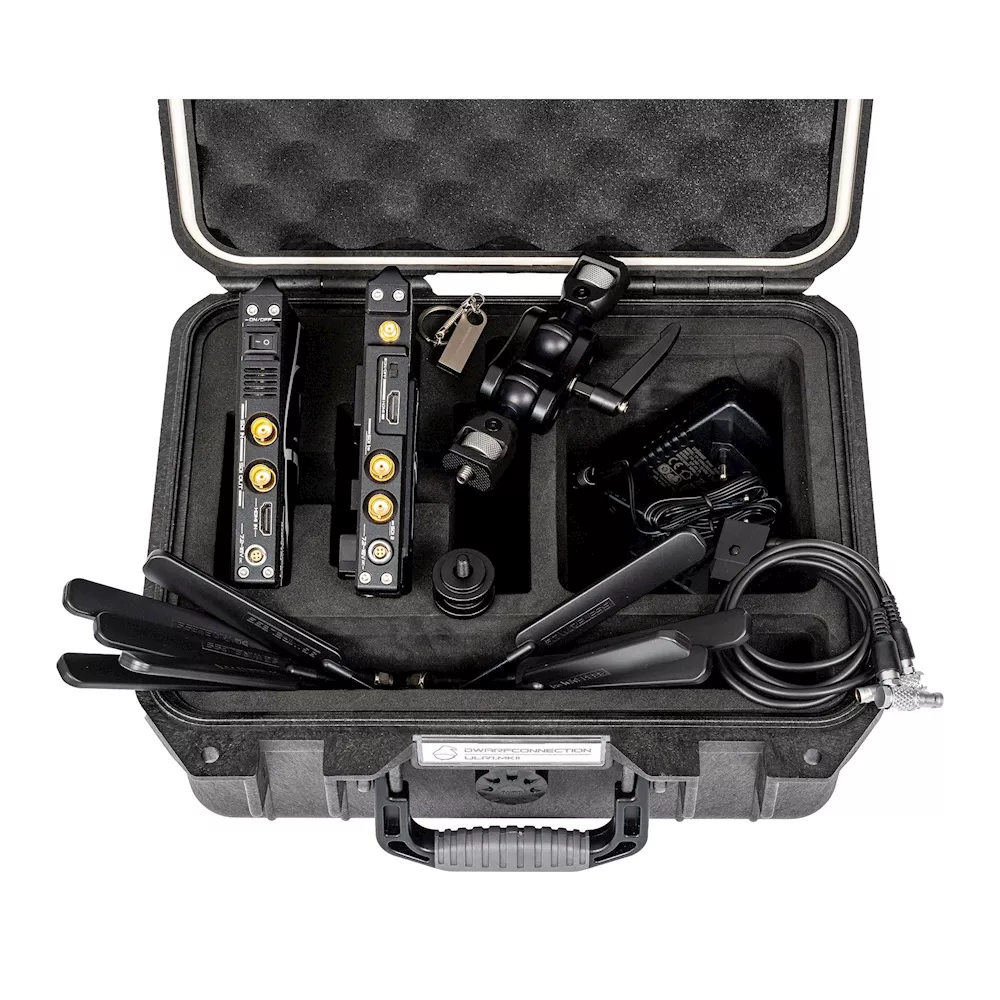

In The Box
- 2x power supply

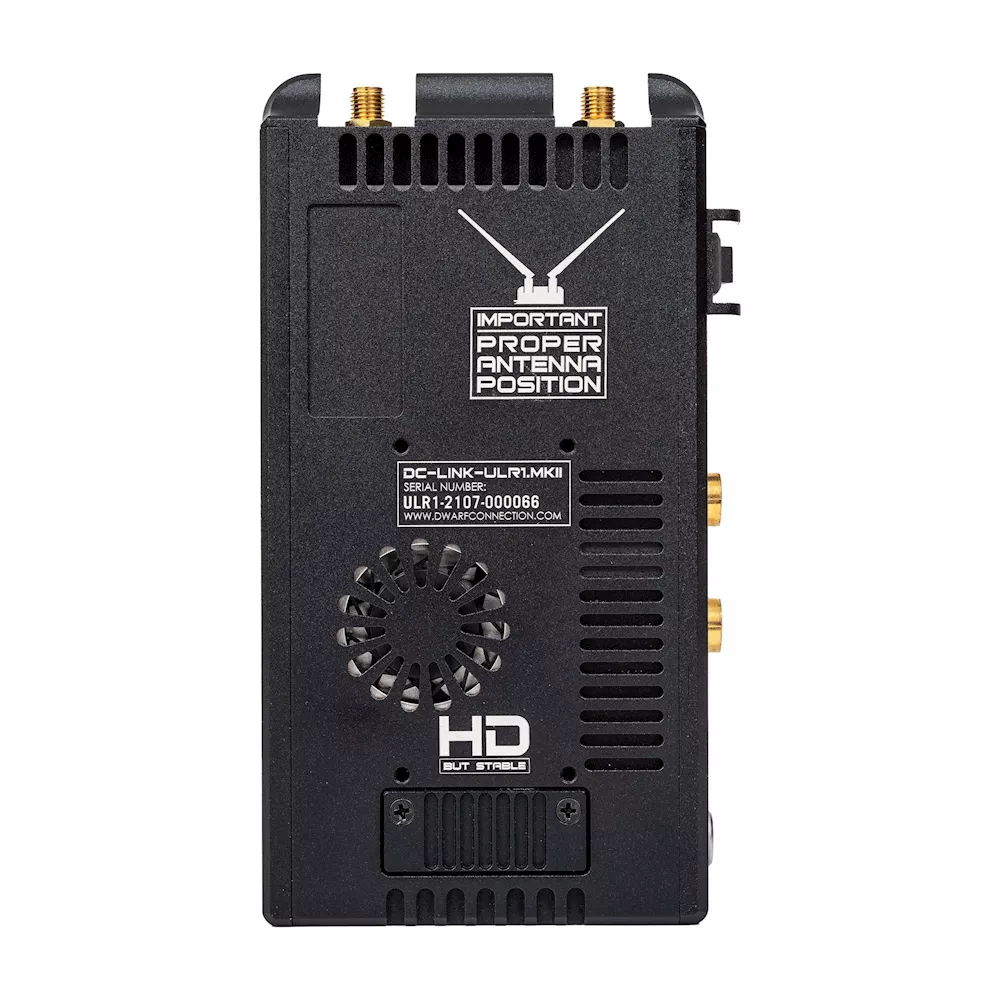

- 1x ULR2 transmitter

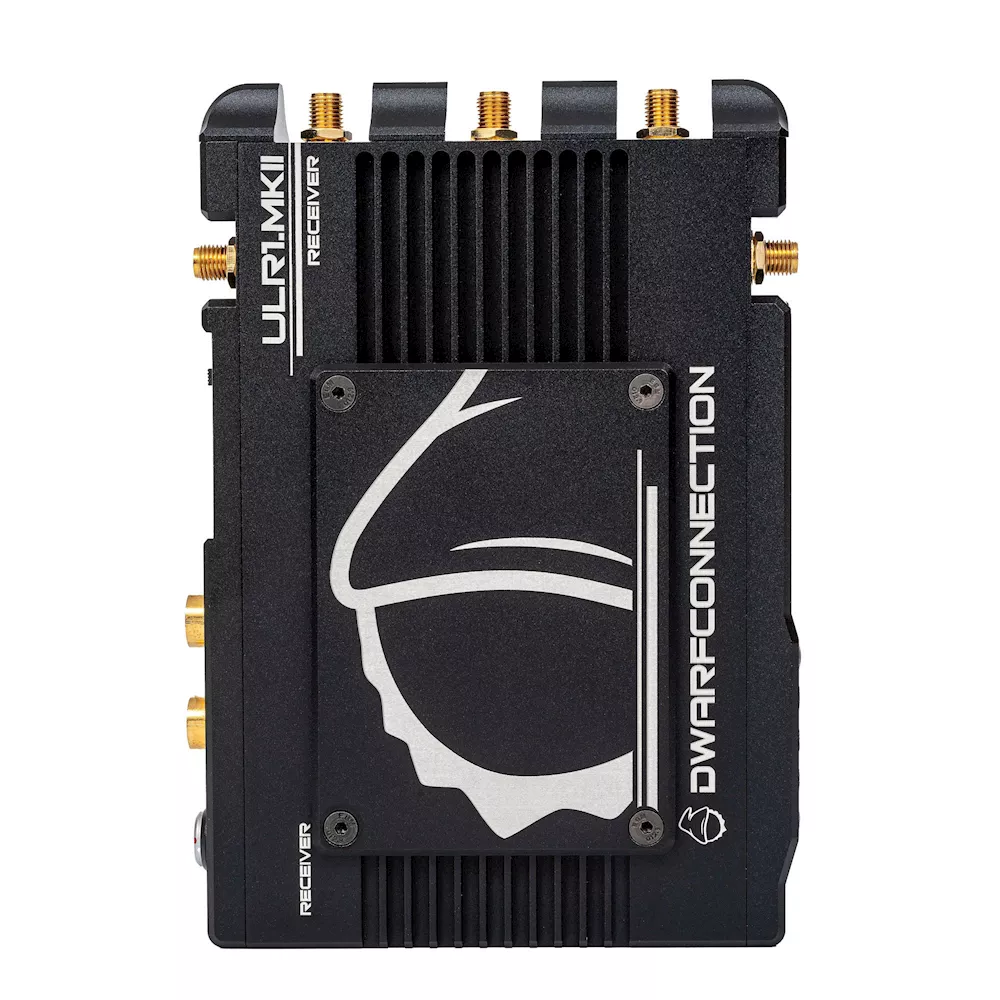

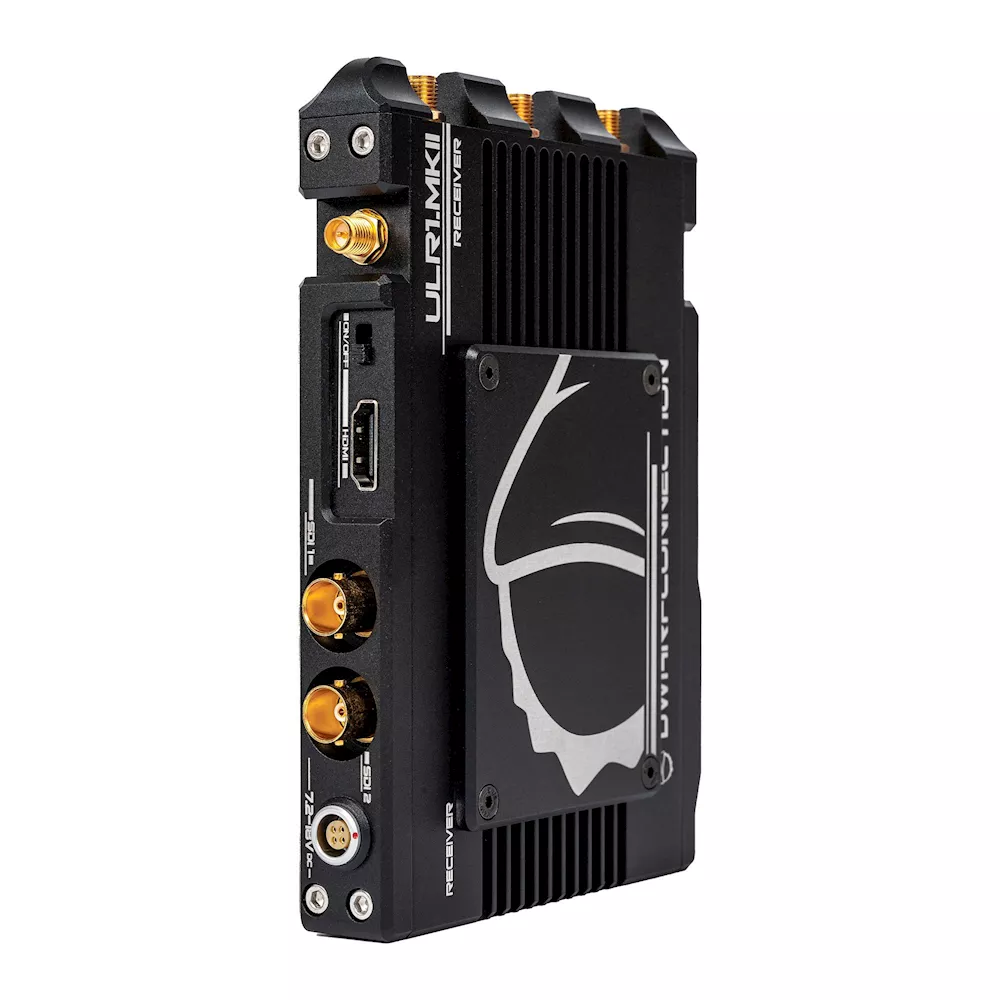

- 1x ULR2 receiver

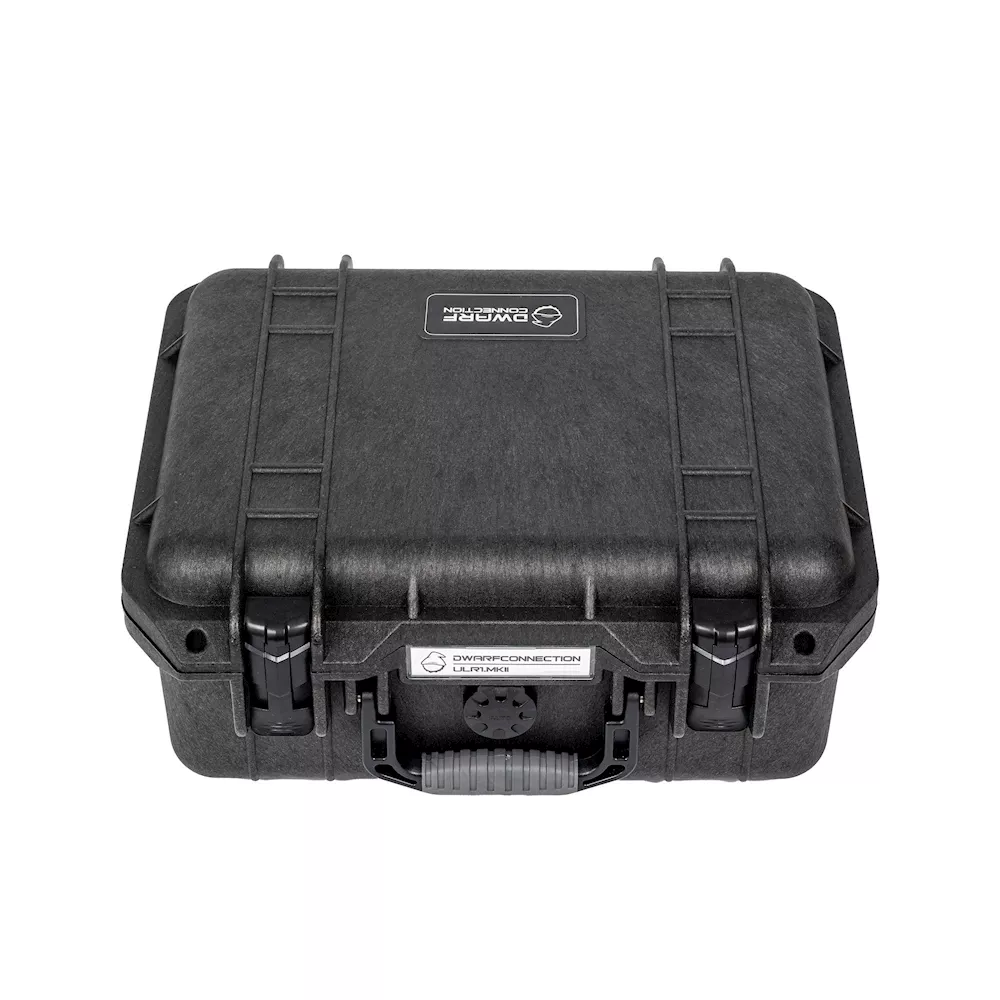

- 1x hard case with foam insert

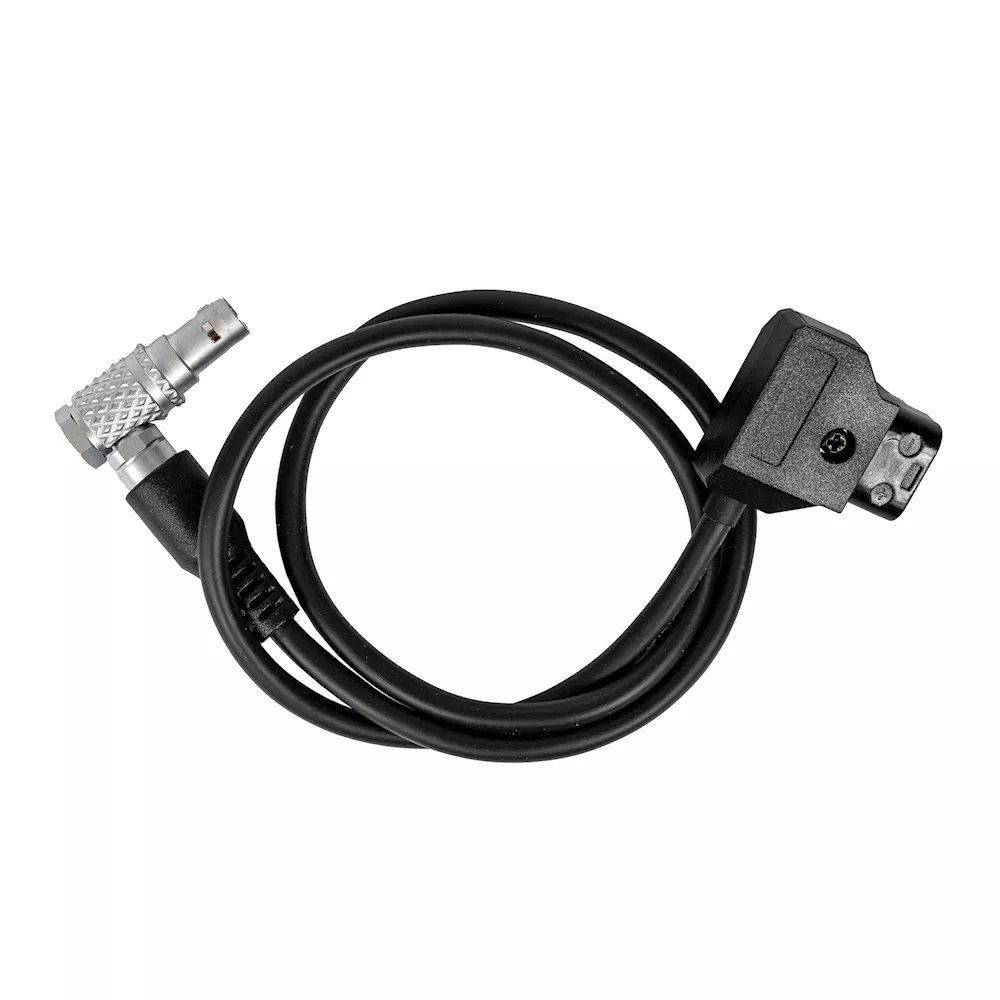

- 1x DC D-Tap on 4-pin spiral cable
- 1x Magic Arm with ¼ “threaded bolt
- 1x hot shoe adapter
Technical Data

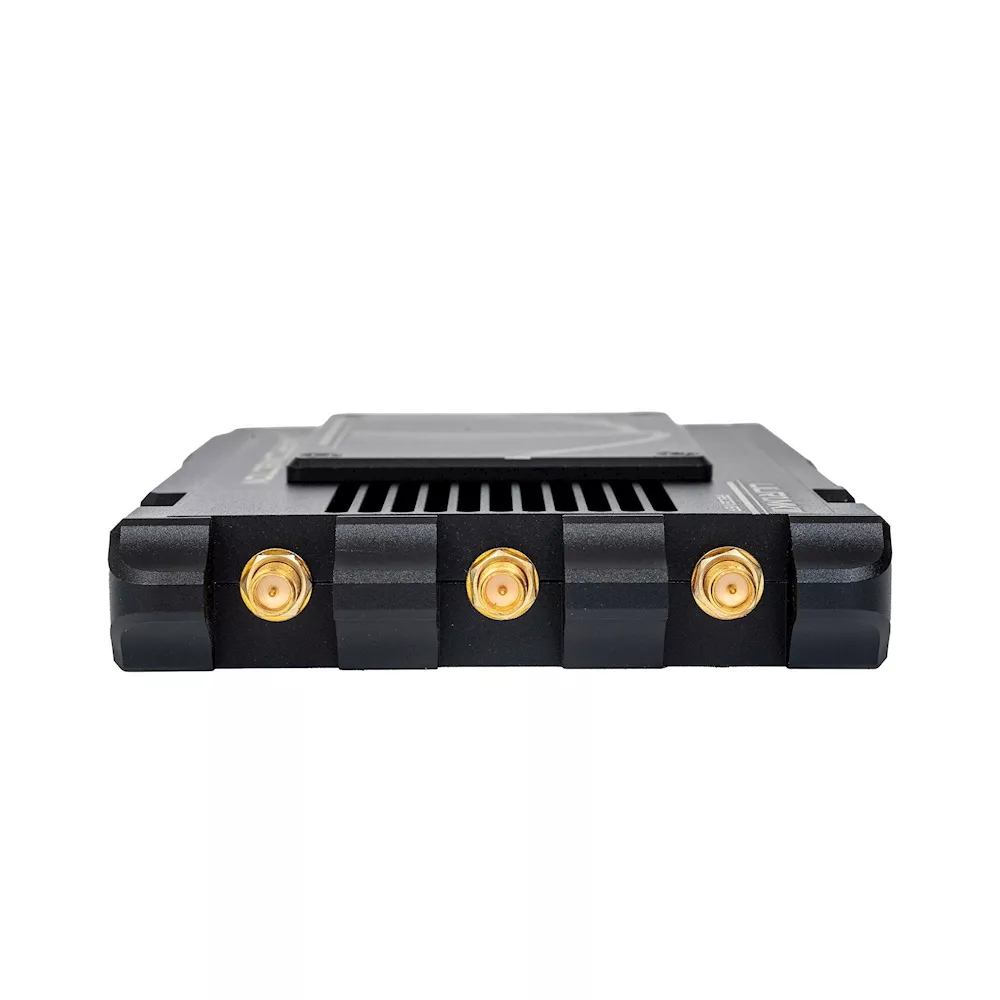

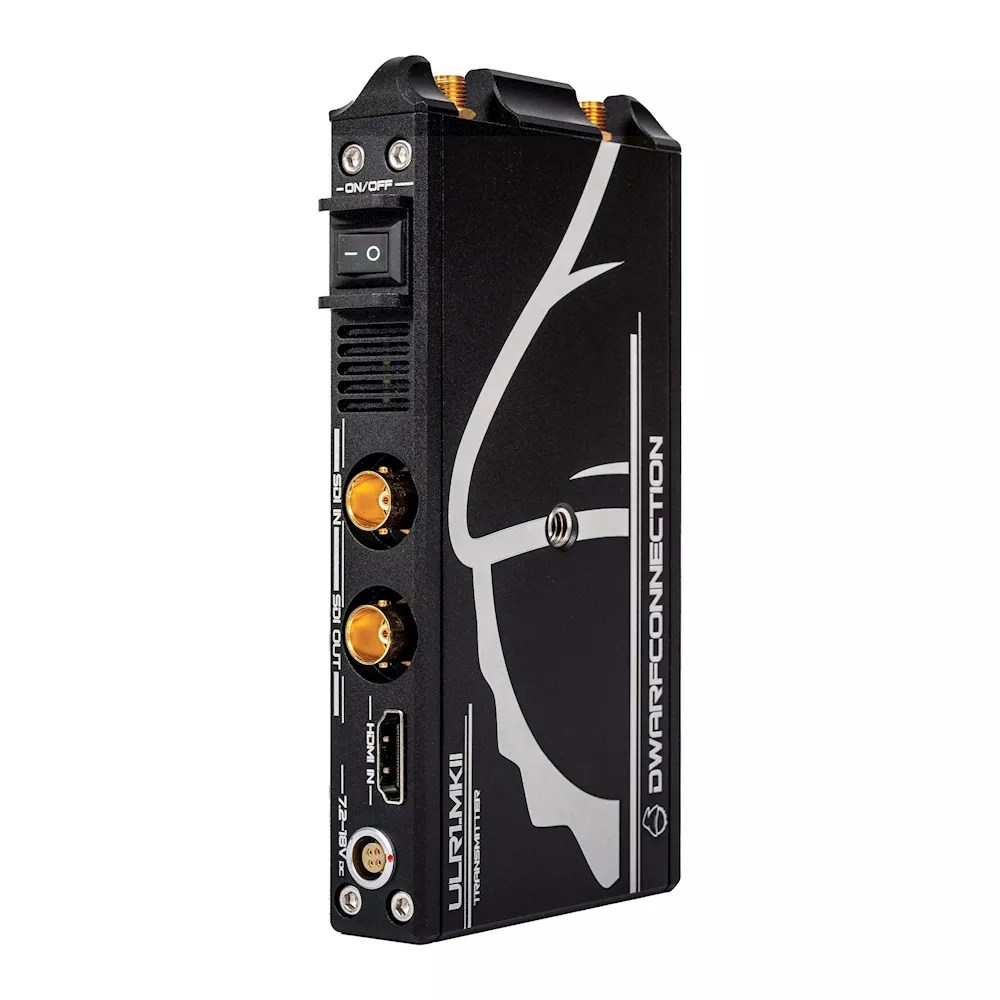

| Connector | 1x SDI Input (BNC female) 1x SDI Output (BNC female) 1x HDMI Input (Type A female) 2x Antenna (RP-SMA male) 1x DC Input (4-pin female) | 2x SDI Output (BNC female) 1x HDMI Output (Type A female) 5x Antenna (RP-SMA male) 1x DC Input (4-pin female) |
| Input Voltage | 9,0 – 18,0V DC | 9,0 – 18,0V DC |
| Power Consumption | < 8 W | < 8 W |

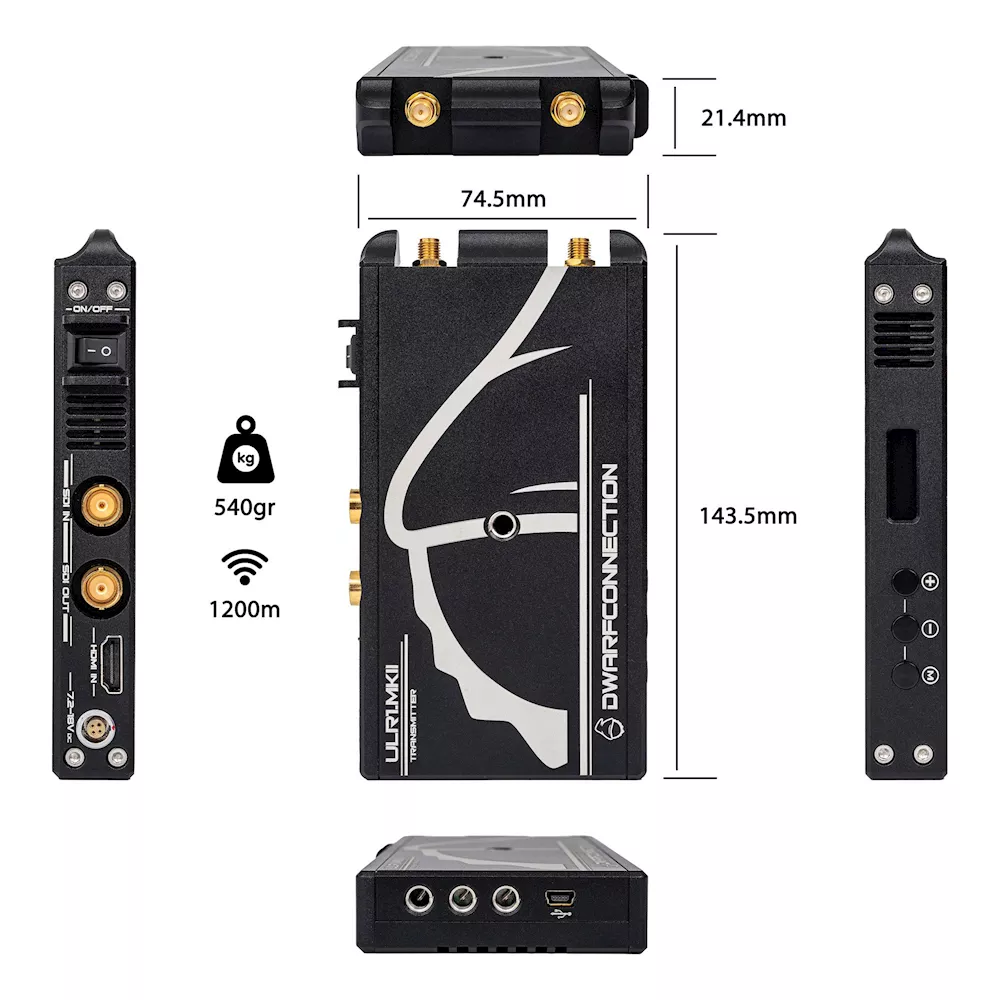

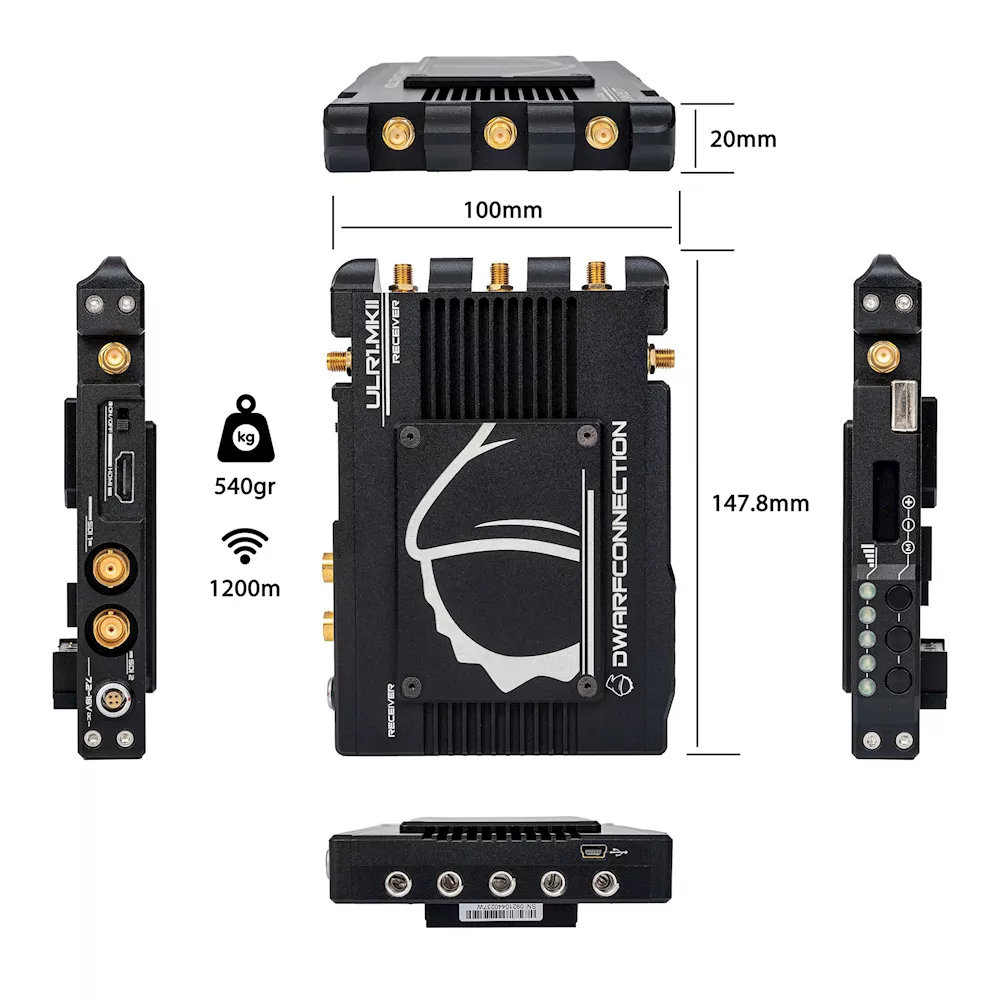

| Dimensions | 143,5 x 74,5 x 21,4mm | 148,8 x 100 x 20mm |
| Weight | 380g | 540g |
| Supported Video Formats | 1080p (60, 59.94, 50, 30, 29.97, 25, 24, 23.98) 1080i (60, 59.94, 50) 720p (60, 59.94, 50) 576i (50) 480i (59,94) | 1080p (60, 59.94, 50, 30, 29.97, 25, 24, 23.98) 1080i (60, 59.94, 50) 720p (60, 59.94, 50) 576i (50) 480i (59,94) |
| Audioformat | SDI embedded 2 Channel Audio 24bit/48kHz | SDI embedded 2 Channel Audio 24bit/48kHz |
| Displays | 0,91 Zoll OLED Panel | 0,91 Zoll OLED Panel 5 LEDs for RSSI Display |

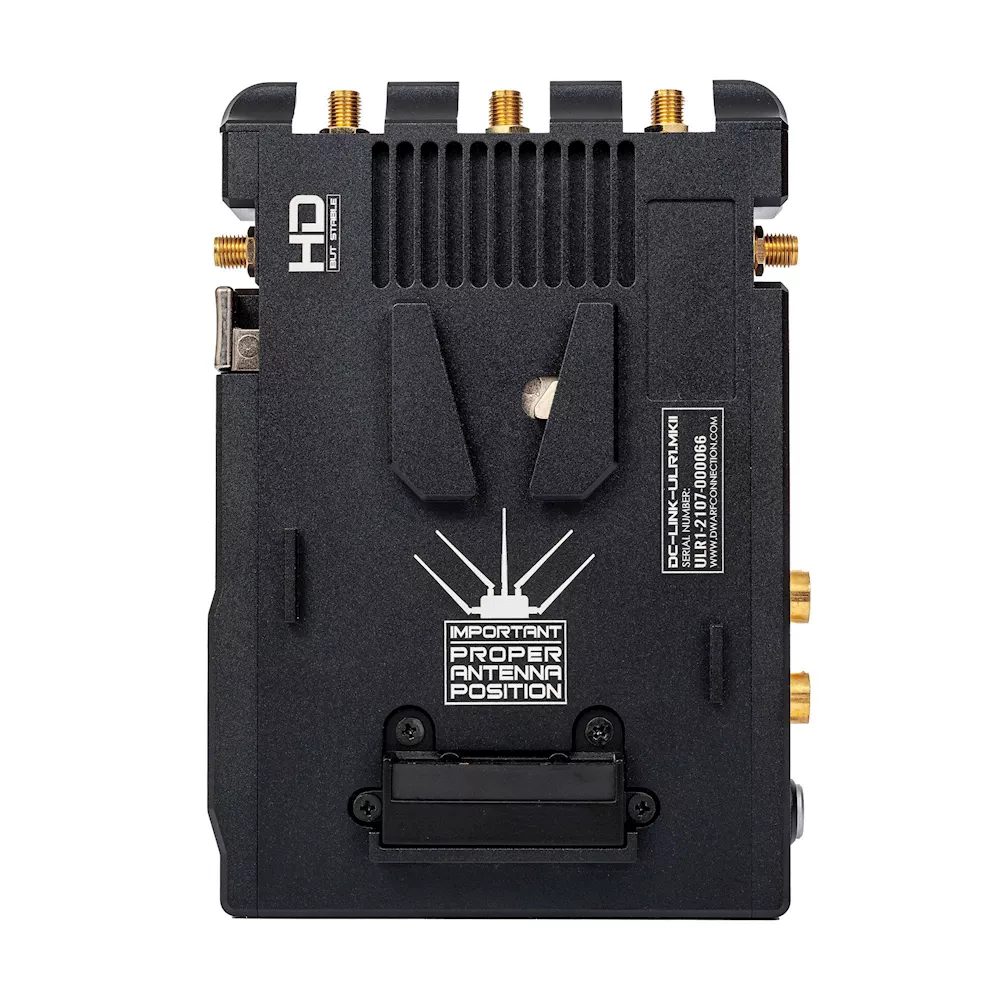

| Battery holder | NPF | V-Mount |
| Transmissionstrength | Weniger als 20dBm | – |
| Reception Sensitivity | – | – 75 dBm |
| Bandwidth | 40MHz | 40MHz |
| Temperature | 0 – 40°C (In Use) -20 – 60°C (In storage) | 0 – 40°C (In Use) -20 – 60°C (In storage) |
| Conformity | CE | CE |
