DJI Transmission 2 Standard Combo (TX+RX)

The DJI Video Receiver integrates O3 Pro video transmission technology and can serve as an additional receiver when paired with the DJI Transmission Standard Combo. With a transmission range of up to 6 km, a bitrate of 40 Mbps, and an impressively low latency of just 70ms, you can seamlessly receive video signals wirelessly. This ensures uninterrupted monitoring of your footage.

The DJI Video Receiver relays these video signals to displays, enabling you to monitor your recordings effectively. It supports over 23 different frequencies in both ‘Control’ and ‘Broadcast’ modes, ensuring a stable connection via a frequency channel. In ‘Control’ mode, the system offers an extended transmission range and greater frequency channel options, while ‘Broadcast’ mode allows for connecting an unlimited number of video receivers and monitors to the transmitter.

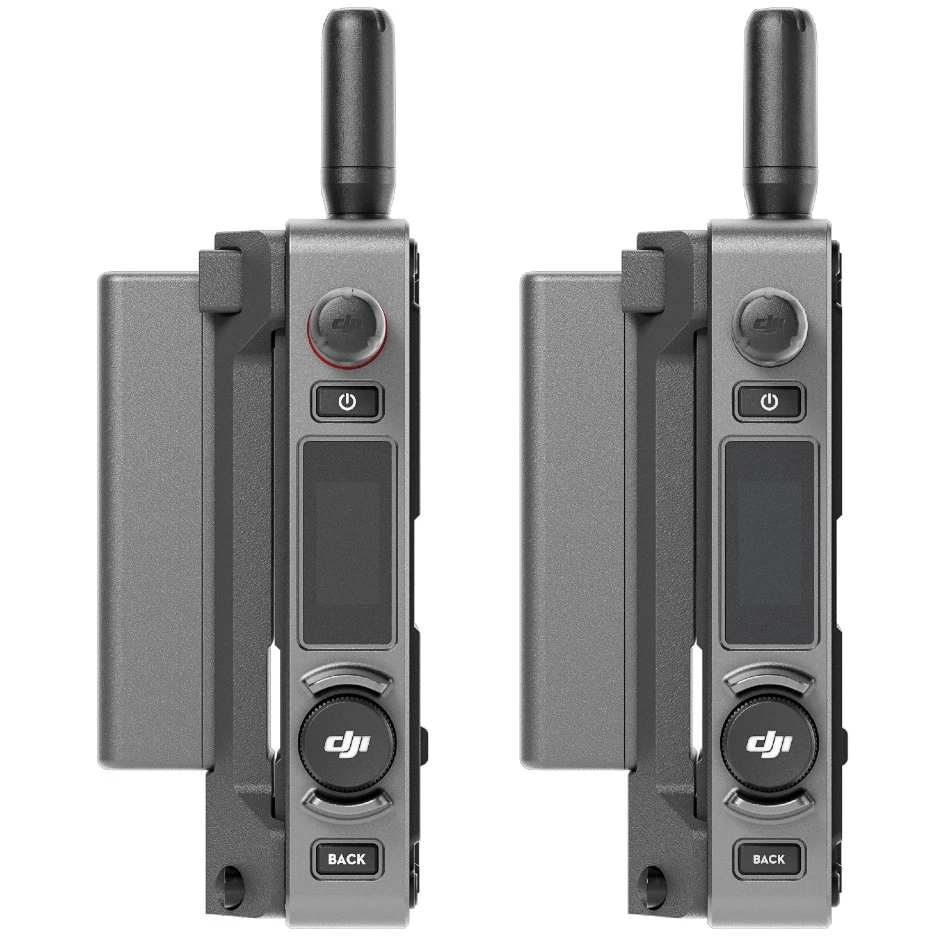

The receiver features a small LCD display for accessing key video and connection-related data. Additionally, it can receive metadata via SDI. When used with ARRI, RED, or other cinema cameras in conjunction with the transmission combo, metadata such as file names, time codes, and camera settings can be transmitted to monitors via the receiver. This feature enables directors and videographers to remotely access detailed information during recording sessions and make prompt adjustments as necessary.

Features

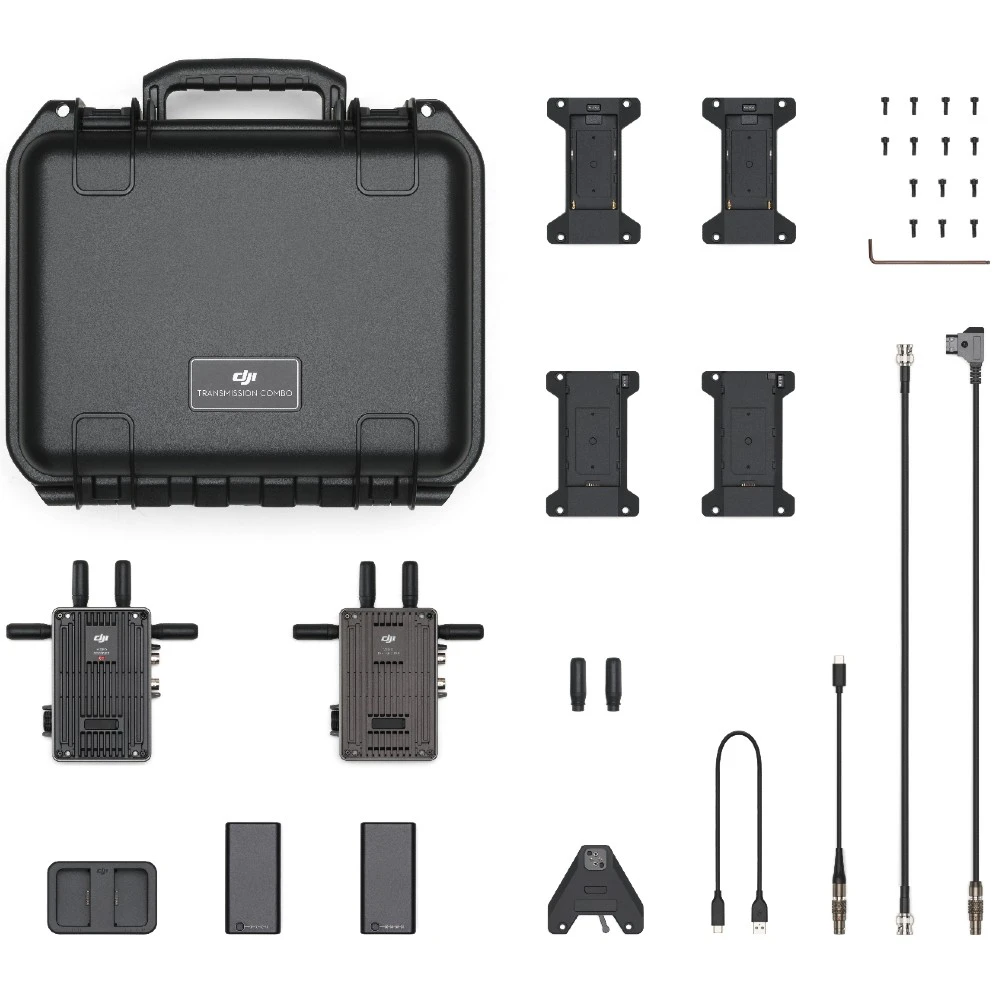

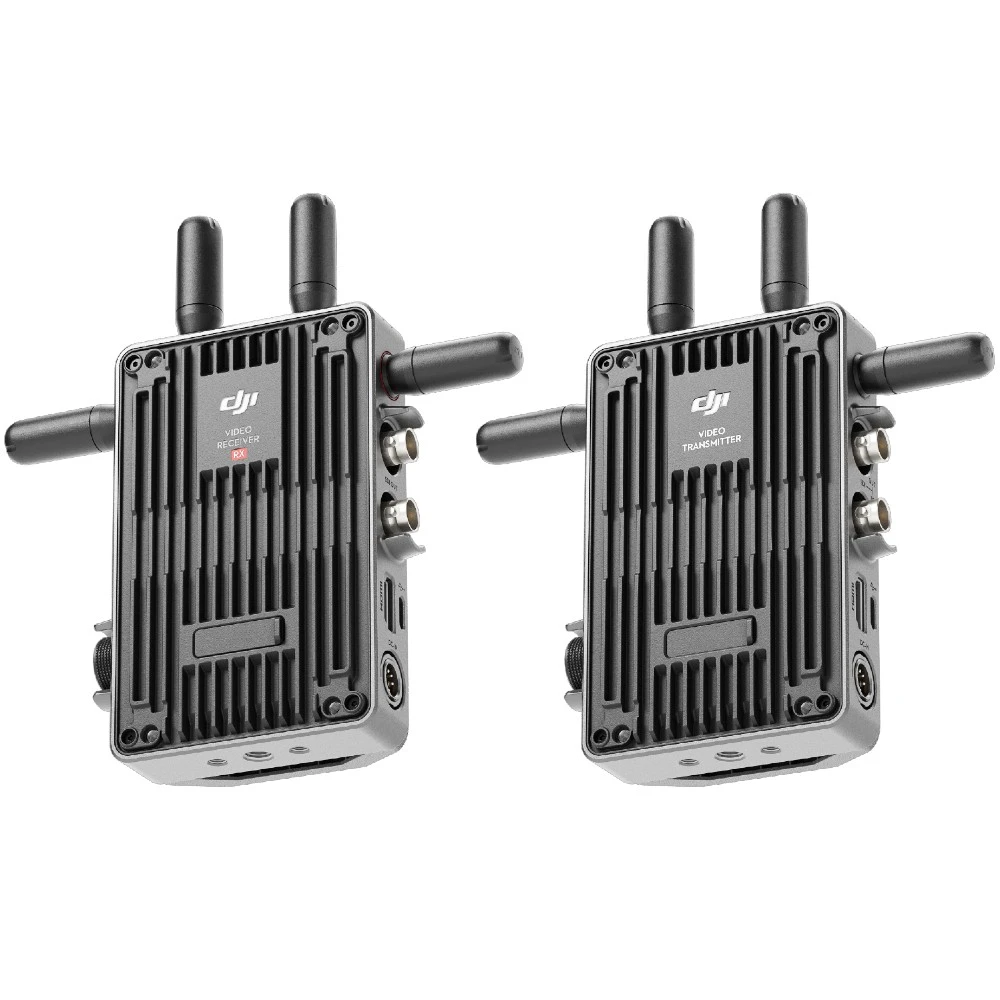

• Transmission combo consisting of 1 transmitter and 1 receiver
• Useful for monitoring multiple camera positions
• To be used with multiple receivers
• To be used in combination with the High-Bright Remote Monitor
• Compatible with the Ronin 4D, Ronin 2, RS 3 Pro and Master Wheels
• For wireless remote video monitoring
• O3 Pro video transmission technology

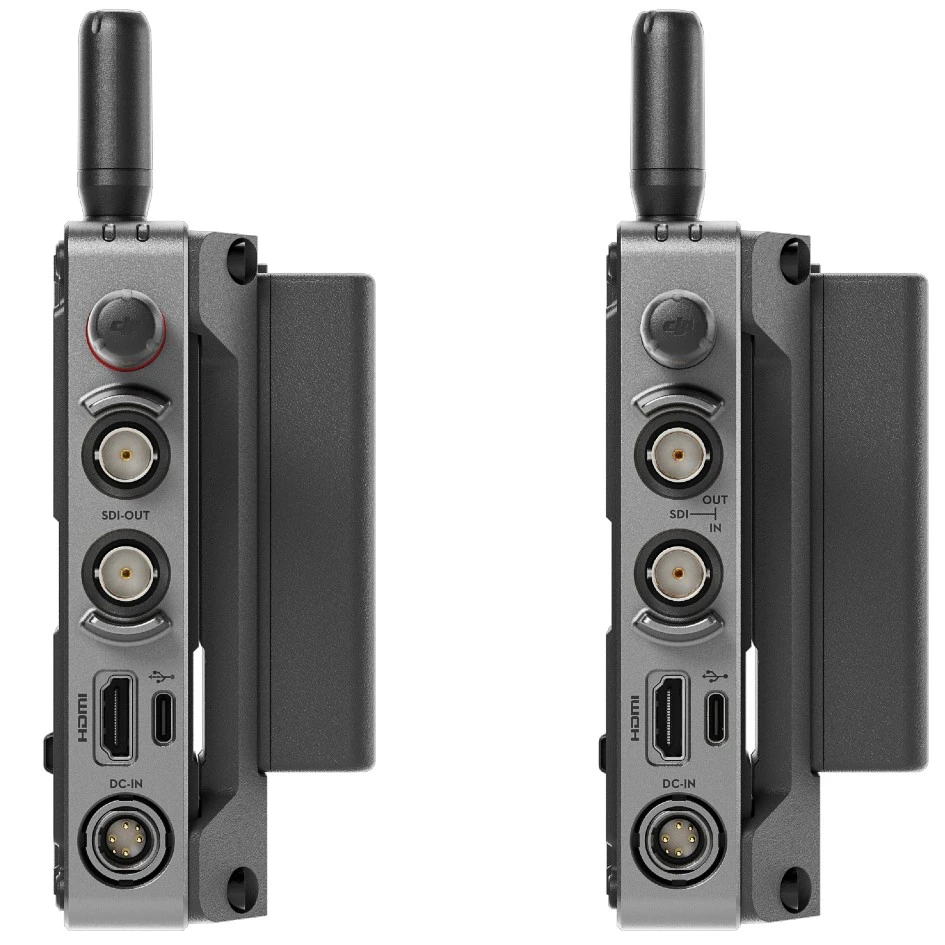

• Dual-link SDI & HDMI output
• Supports metadata transfers via SDI
• Max. Transmission range: 6 km
• Max. Output Video Format: 1080p/60fps
• Max. Bitrate: 40Mbps
• Transmission modes: Broadcast & Control
• Supports voice call
• Delay: 70ms
