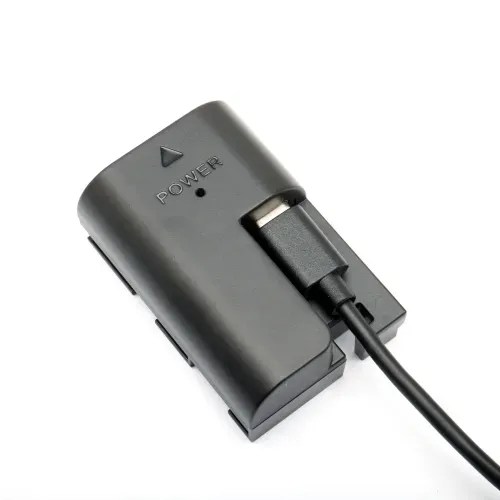

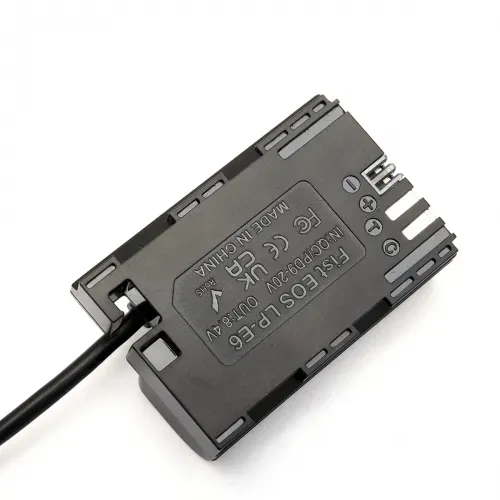

DF USB-C To USB-C Digital Camera Dummy Battery For Canon LP-E6 Battery

Features:
1. Support the mainstream fast charging head on the market, such as 9V, 12V, 15V, 20V can be used.
2. Power supply with wide range voltage, high conversion efficiency up to 98%, low heat generation, high power, continuous shooting without interruption.
3. Built-in re verse, high voltage, and overload protection circuits, which can safely use fake batteries and protect the camera more safely.
4. Fully decoded battery, fully compatible to replace the original LP-E6 battery, with the same effect as the battery.
5. New structural design, with power working indicator light, the working status is clear at a glance.
Instructions for use:
1. Use the USB to TYPE-C cable or TYPE-C to TYPE-C cable to connect to the power supply with fast charging protocol
2. Insert the simulated battery into one end of TYPE-C, the green POWER indicator light is on for normal operation, and if it is off, there is no power input.
3. Put the simulated battery into the battery compartment and cover the battery cover
4. Turn on the power switch of the camera for normal use
Note: (When the input is 9V, the output may only have a normal voltage drop of 7.8V, which can be used normally, and the camera may not display full power)

Specification:
Name: DF-E6-C digital camera intelligent ana log battery
Model: DF-E6-C
Colour: Black
Input: 9-20V, TYPE-C input:
Integrated USBPD fast charging protocol
Support online switching voltage, no need to re-power on
Integrated PD2.0/3.0 fast charging protocol
Automatically detect and switch CC1/CC2 signal communication
Integrated Sam sung AFC fast charging protocol
Integrate Huawei FCP fast charging protocol
Integrated QC2.0/30 fast charging protocol
Integrated USB-A QC2.0/3.0 fast charging protocol
Supports CLASS A and CLASS B voltage levels
Compatible with BC1.2
Support fixed voltage or MCU control mode
Support PD protocol: 5V, 9V, 12V, 15V, 20V
Support QC protocol: 5V, 9V, 12V, 20V
Support Huawei FCP protocol: 5V, 9V, 12V
Support Sam sung AFC protocol: 5V, 9V

Output: 8.4V (Max 24W)
Product size: 44.9mm*31.7mm*18.6mm
Product weight: 14.5g
Corresponding battery model: Canon LP-E6

Applicable camera models:
Professional SLR EOS5D MarkIV/5D Markll5DS/5DSR/5D Mark Il
Professional entry-level SLR 6D Mark Il/EOS6D
Mid-range flagship SLR 7D Mark 11/7D
Mid-range SLR EOS60D/60Da/70D/80D/90D
Full-frame professional mirrorless camera EOS-R/EOS R5/EOS R6
The above models are not listed, and more models are being updated.

Packing List:

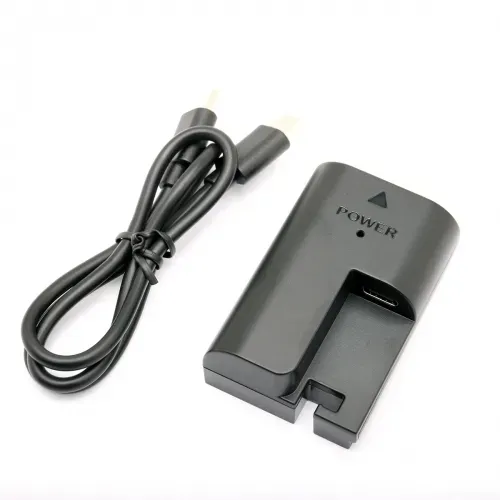

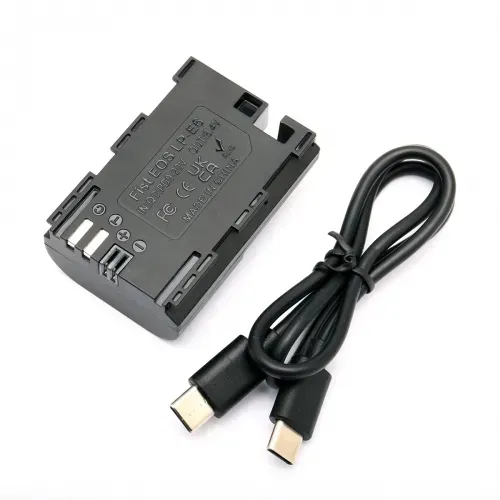

1. DF-E6-C Digital Camera Intelligent Ana log Dummy Battery *1
2. Type-C to Type-C 50CM cable*1
